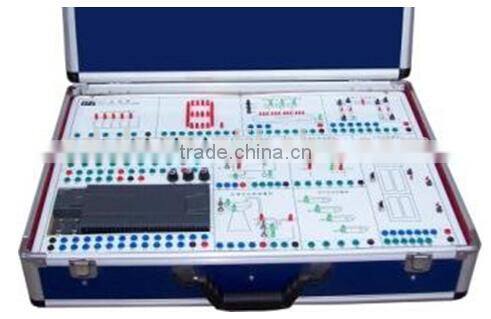

XKPLC-UN100 PLC Training Kit for Education
Training box with PLC which includes 14-way ON/OFF input, 10-way relay type output, work with the load project of training box, will finish the PLC programming software study, program instruct study and application training, PLC typical programming method study, PLC typical project training etc.
(1) Power supply voltage: single phase AC220V, 50Hz
(2) Referring size: 420mm *310mm *125mm,weight:2.5kg
(3) PLC: CPU124-1R
14 dot digital value input, 10 dot relay type digital quantity output, can be extend to 3 modules;
Using method can be compatible with S7-200 PLC
Adopts FLASH technology over-long time power down keeping, no need battery support, data can be stored for 10 year;
With one of communication interface, support the PPI communication protocol.
(1)Power line 1 unit
(2)2mm jumper wire 20 units
(3)Programming device cable 1 unit
(4)Programming software STEP 7 MicroWIN
(1)Study of STEP 7 MicroWIN software
To learn the basic operation of STEP 7 MicroWIN software: Build new PLC program; ladder diagram or STL programming method; downloading/uploading program; program on-line monitoring.
(2)Motor point control experiment
To learn PLC basic logic instruction
To master PLC basic programming method
(3)Motor start/ stop control experiment
To practice PLC basic logic instruction application
To learn the programming method of self-latching circuit
(4)Motor forward/reverse control experiment
To practice PLC basic logic instruction application
To learn the programming method of interlock circuit
(5)Motor star/delta start control experiment
To learn PLC timing instruction
To learn PLC programming rules
(6)Traffic light control experiment
To practice the typical application of PLC timing instruction
(7)Table tennis competition simulation experiment
To learn PLC move instruction and data shift instruction
(8)Liquids mixing system control experiment
To learn the PLC sequential control relay instructions
(9)Sky tower light control experiment
To learn and practice the PLC programming method of typical sequential control programs
(10)Responder control experiment
To learn the method of controlling IN-7 nixie tube by PLC
