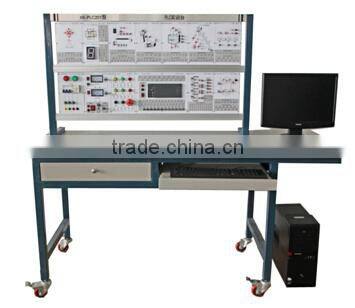

XK-PLC201A PLC Simulation Control Training Bench for Electrical automation
Picture is for reference, computer is not standard configuration
XK-PLC201A PLC Simulation Control Training Bench for Electrical automation constitutes by double station high strength moveable platform, power supply module, adjustable power supply module, PLC host module, switch value input and output module, many simulation load module and series accessories. This experiment platform can finish most of the PLC control experiment by freely combination method. The hanging box size 150mm×250mm, Made from a mold injection molding, has uniform size and beautiful appearance.
1. Product size: 1700mm×700mm×1600mm
2. Product power supply: three-phase four-wire AC380V voltage, frequency 50/60Hz, power<500VA.
3. PLC: user can specify the PLC brand: Siemens, AB, Schneider, Mitsubishi, Omron and other brands.
1.1.25~30V adjustable DC voltage source 1 path, capacity 0.5A
2. 4~20mA adjustable DC current source 1 path
3. DC24V voltage source 1 path, capacity 1 A.
1. K2 jumper line 50pcs, K4 jumper line 10pcs
2.PLC programming cable:1pce

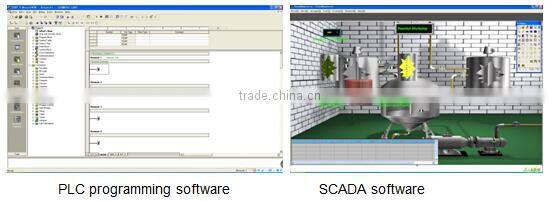

3.Assorted software: PLC programming software, SCADA software (kingview DEMO version software)
4.Manual: 1pce
1 .PLCThe understanding of the hardware and software
1)PLCHardware knowledge
2) Wiring training of PLC
3) PLC internal resources for learning
4) The use of PLC programming software
5) Download, upload and online monitoring of PLC applications
2. PLC basic instruction practice training
1) Boolean instruction training
2) Timer instruction training
3) Counter instruction training
4) Transfer instruction training
5) Data shift instruction training
6) Arithmetic instructions training
7) Logic instruction training
8) Sequence control relay command training
3. PLC project training
1)The light in the Sky Tower
2)Eight digital display
3)Automatic mail sorting control
4)Water tower level automatic control
5)variety of automatic liquid mixture
6)traffic signal lamp
7)Automatic feed loading
8)Material transport trolley
9)automatic washing machine
10)Four-storey elevator
4.SCADASoftware training (kingview DEMO version of the software)
1) SCADA software application
2) Basic animation connection application
3) Moving and zooming animation connection application.
4) Vertical moving animation connection application
5) Data input and output animation connection application
6) Typical SCADA projects training.
Ms. Sally Zhao
Skype: xksally
Tel: +86-531-88771298
Shandong Xingke Intelligent Technology Co., Ltd.
ADD:4th Floor, No. 786 Xinluo Street, Gaoxin Zone,Jinan,Shandong,China.
Post code: 250101
Website: :810/
http://sdxk.en.china.cn/
