1. Product overview

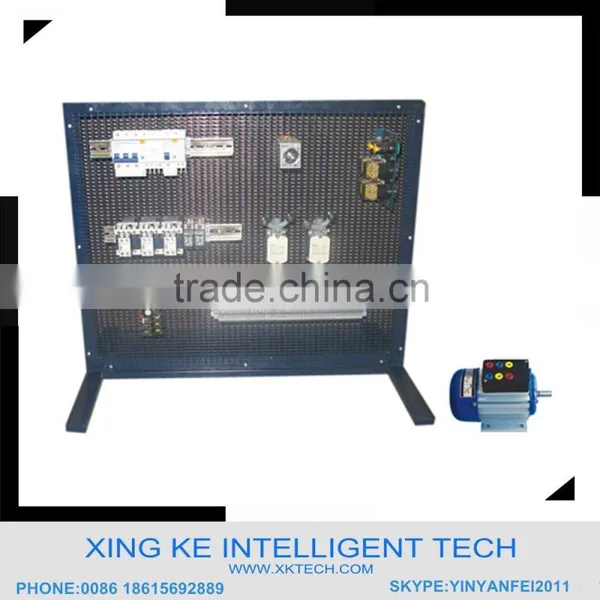

XKECP1 circuit training device adopts with mesh board structure, student can install electrical control component, and connect
control circuit, complete start, break control of three phase asynchronous motor.
This device equipped with various control component and wiring circuit required guide, wire and other accessories. Power supply
equipped with leakage protection, short circuit and other protection, to guarantee experiment electricity safety.
2. Experiment bench technical indicator
2.1 Size: 610mm*60mm*740mm
2.2 Power supply: the three-phase AC380V, power < 500 VA.
2.3 Three phase power supply main switch with leakage protection
2.4 With accident sudden stop button, power supply indicator, power indicator
3. Experiment accessories
3.1 Relay contact component, include: fuse include socket, contactor, middle relay, time relay, thermal relay, button, indicator lamp, wire cable, guide, wiring terminal, soft wire.
3.2 Three phase asynchronous motor 1 pcs
3.3 Experiment manual 1 book
4. Experiment list
AC relay cognitive experiment
Contactor cognitive experiments
Time relay cognitive experiments
Motor direct start test
Inching and long acting mixed control circuit
Reversing control button contactor complex interlocking
The motor automatically reciprocating cycle control
Motor Y / DELTA buck starts control
