190mm 100% Copper External Rotor AC 220v Cooling Fan

190mm 100% Copper External Rotor AC 220v Cooling Fan photo-1

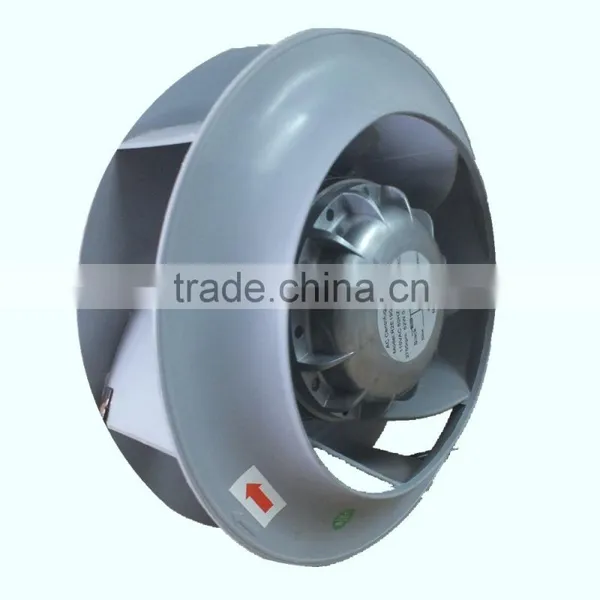

190mm 100% Copper External Rotor AC 220v Cooling Fan photo-2

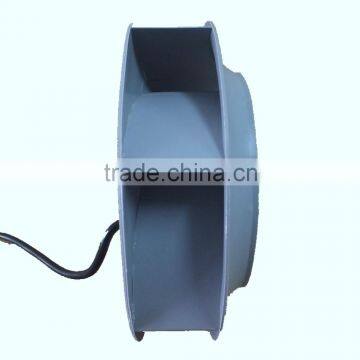

190mm 100% Copper External Rotor AC 220v Cooling Fan photo-3

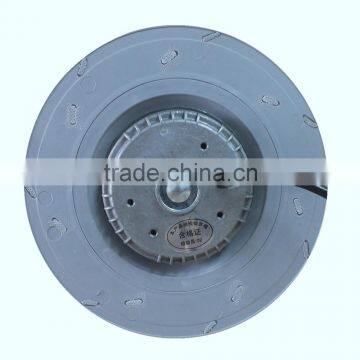

190mm 100% Copper External Rotor AC 220v Cooling Fan photo-4

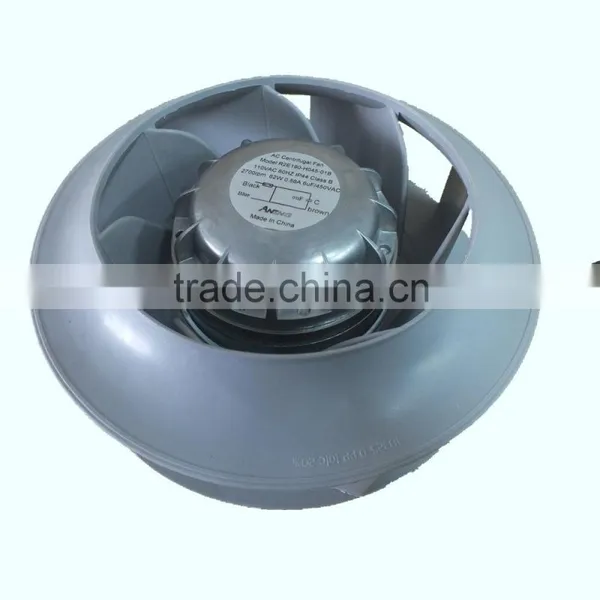

190mm 100% Copper External Rotor AC 220v Cooling Fan photo-5

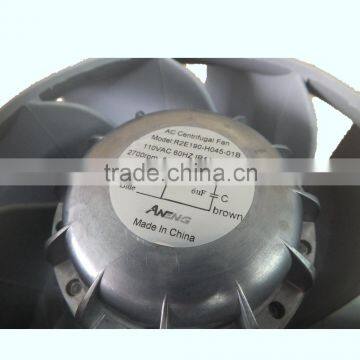

190mm 100% Copper External Rotor AC 220v Cooling Fan photo-6
US$ 19 - 22 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
AC
Mounting:
Free Standing
Blade Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Electric Current Type AC
Mounting Free Standing
Blade Material Plastic
Place of Origin Shanghai, China
Brand Name Anneng
Model Number R2E190-H045-01B
Voltage 110V / 220V
Power 65 W
Air Volume 570 m3/h
Speed 2520 rpm
Certification CCC, CE, ROHS
After-sales Service Provided Engineers available to service machinery overseas



            "We promise the products you will get are as true as you can see !"



Type: R2E190-H045-01B

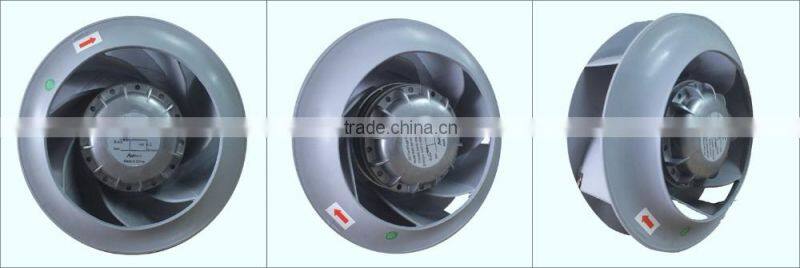

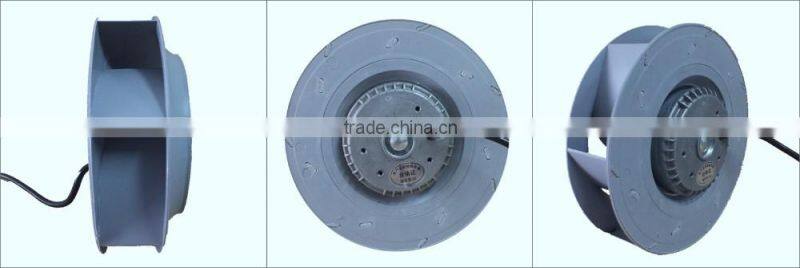

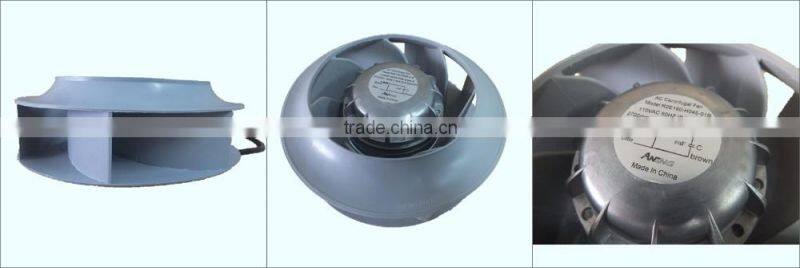

Product Pictures

190mm 100% Copper External Rotor AC 220v cooling fan190mm 100% Copper External Rotor AC 220v cooling fan190mm 100% Copper External Rotor AC 220v cooling fan

(PS: ANNENG Reserved, Pirates Must Investigate.)

Product Datasheet
 Specification
Model Type:   R2E190-H045-01B / Motor Type:  92mm
Rated Voltage FrequencyRated CurrentInput PowerSpeedAir FlowAir FlowStatic Pressure
(VAC)(Hz)(A)(W)(RPM)(CFM)(m3/h) (Pa)
220 / 11050/600.3565/672520/2760335/376570/640320/405
Details Description
Current Leakage <=3.5mA
Operation Mode continuous operation S1
Direction of Rotation clockwise, seen on rotor
Mounting Position at will
Insulation Class "B" or "F"
Cable Length 450mm
Bearing  ball bearing (NMB)
Net weight  0.9kg
Motor Protection Thermal overload protector (TOP) brought out
Surface of Rotor Cast in aluminum
Number of Blades "7"
Type of Protection IP44
Approval CE
Operate Life >=40,000hours
Noise <66dB(a)  1 meter away

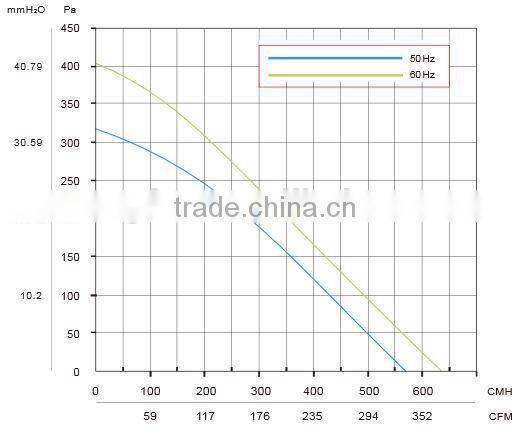

 Characteristic Curves
            190mm 100% Copper External Rotor AC 220v cooling fan

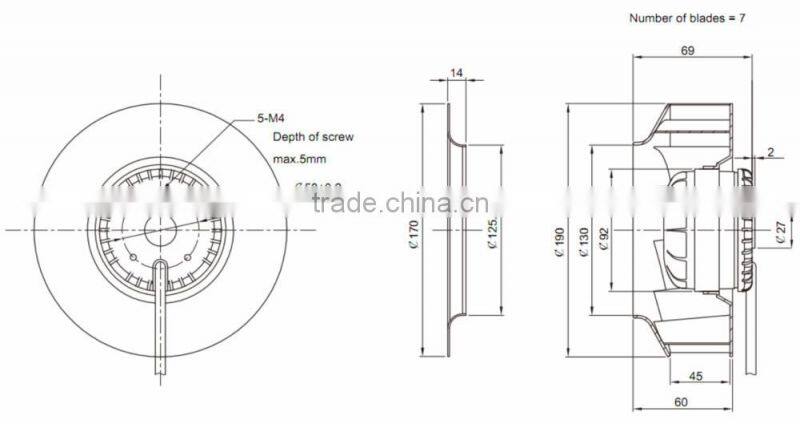

 Drawing
190mm 100% Copper External Rotor AC 220v cooling fan

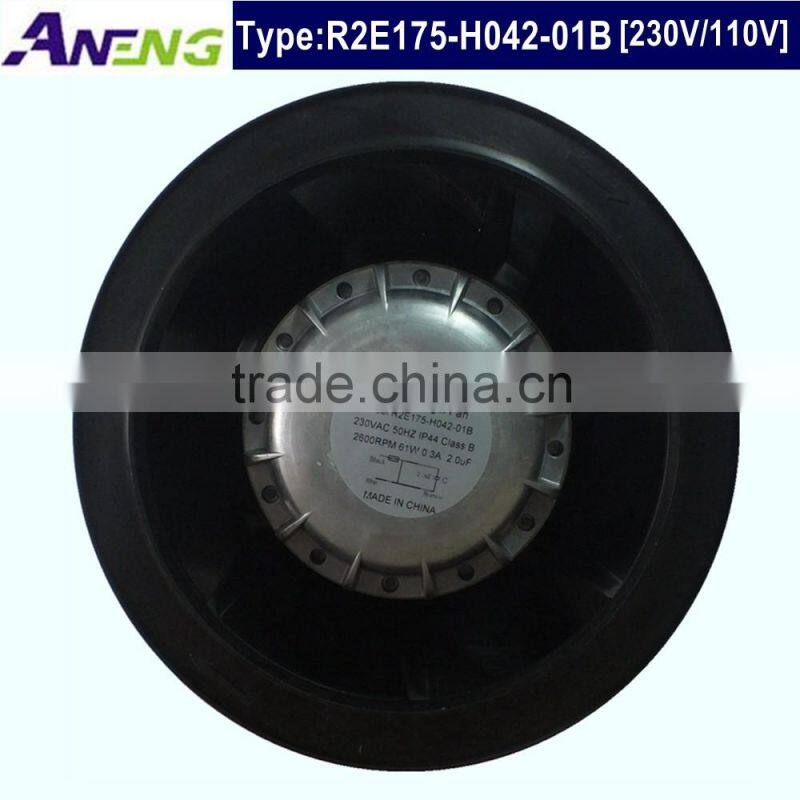

 Other Related Products



190mm 100% Copper External Rotor AC 220v cooling fan190mm 100% Copper External Rotor AC 220v cooling fan190mm 100% Copper External Rotor AC 220v cooling fan
190mm 100% Copper External Rotor AC 220v cooling fan190mm 100% Copper External Rotor AC 220v cooling fan190mm 100% Copper External Rotor AC 220v cooling fan





Factory Display

Production Line
Product Process Inspection
190mm 100% Copper External Rotor AC 220v cooling fan
Motor Independent Production
190mm 100% Copper External Rotor AC 220v cooling fan
Packaging

1. for Sample, packing individually by foam carton;

2. for Mass, pallet package 120x100x120CM.

190mm 100% Copper External Rotor AC 220v cooling fan
Certifications
190mm 100% Copper External Rotor AC 220v cooling fan
Our Guarantees

 Quality Guarantee

We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance.

 Price Guarantee

The products are sold by our own factory directly. So the reason for low price is simple: no middlemen.

 Delivery Time Guarantee

We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay.

 Service Guarantee

We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.
