Help Center220V or 110V Small Smoke Ventilator With 2016 New Housing
Related Products
-
140mm Heat Exchanger Air Blower for VentilationUS$ 20 - 23MOQ: 100 Pieces -
175mm 220v Silent Fan for Precision Air ConditioningUS$ 19 - 25MOQ: 100 Pieces
-
100% Copper 175mm Small Industrial Fan in Machine for CoolingUS$ 19 - 25MOQ: 100 Pieces
-
190mm Three Speed Dehumidifier FanUS$ 19 - 22MOQ: 100 Pieces
-
100% Copper ac Cooling Fan in Machine for Hot Air ExtractionUS$ 19 - 22MOQ: 100 Pieces
"We promise the products you will get are as true as you can see !"

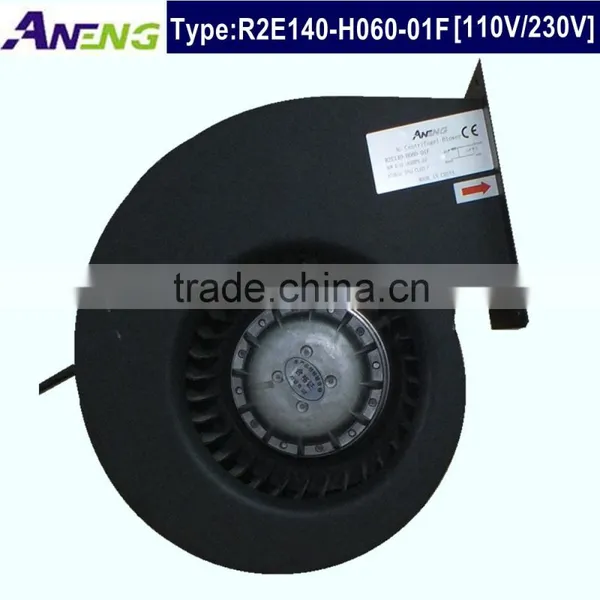

Type: R2E140-H060-01F
(PS: ANNENG Reserved, Pirates Must Investigate.)
| Specification | |||||||
| Model Type: R2E140-H060-01F / Motor Type: 92mm | |||||||
| Rated Voltage | Frequency | Rated Current | Input Power | Speed | Air Flow | Air Flow | Static Pressure |
| (VAC) | (Hz) | (A) | (W) | (RPM) | (CFM) | (m3/h) | (Pa) |
| 220 / 110 | 50/60 | 0.62/0.7 | 136/150 | 2200/2450 | 259/294 | 440/500 | 370/480 |
| Details Description | |||||||
| Current Leakage | <=3.5mA | ||||||
| Operation Mode | continuous operation S1 | ||||||
| Direction of Rotation | clockwise, seen on rotor | ||||||
| Mounting Position | at will | ||||||
| Insulation Class | "B" or "F" | ||||||
| Cable Length | 450mm | ||||||
| Bearing | ball bearing (NMB) | ||||||
| Net weight | 1.8kg | ||||||
| Motor Protection | Thermal overload protector (TOP) brought out | ||||||
| Surface of Rotor | Cast in aluminum | ||||||
| Number of Blades | / | ||||||
| Type of Protection | IP44 | ||||||
| Approval | CE | ||||||
| Operate Life | >=40,000hours | ||||||
| Noise | <57dB(a) 1 meter away | ||||||
| Characteristic Curves | |||||||
|
| |||||||

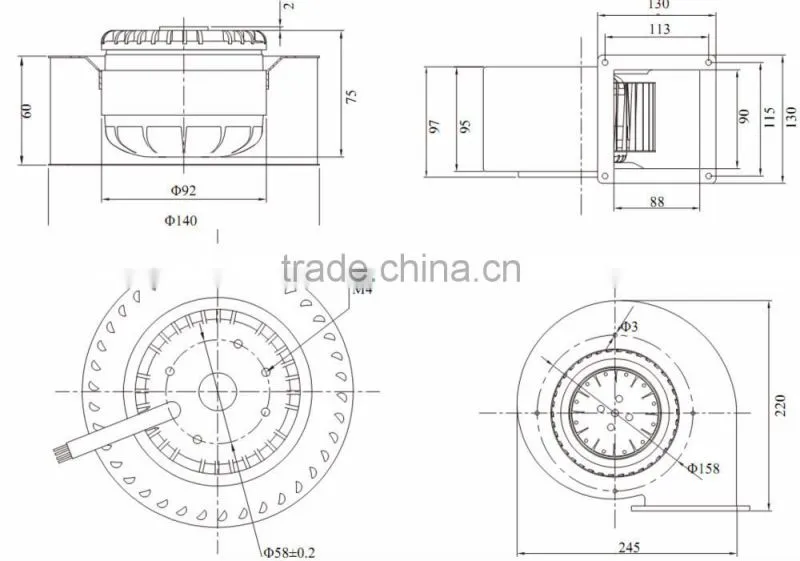

| Drawing | |||||||
| |||||||
Other Related Products
|
|
|
| Product Process Inspection |
|
| Motor Independent Production |
|
|
1. for Sample, packing individually by foam carton; 2. for Mass, pallet package 120x100x120CM. |
|
|
|
Quality Guarantee We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance. Price Guarantee The products are sold by our own factory directly. So the reason for low price is simple: no middlemen. Delivery Time Guarantee We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay. Service Guarantee We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.
Our Friends, Let's creat a beautiful future! |
