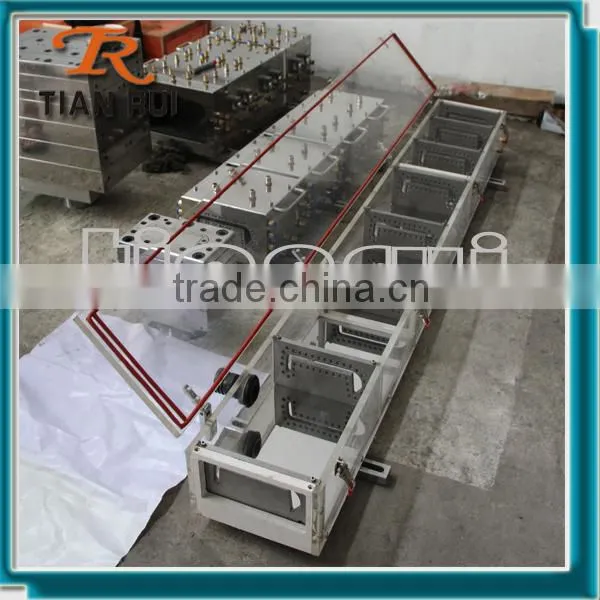

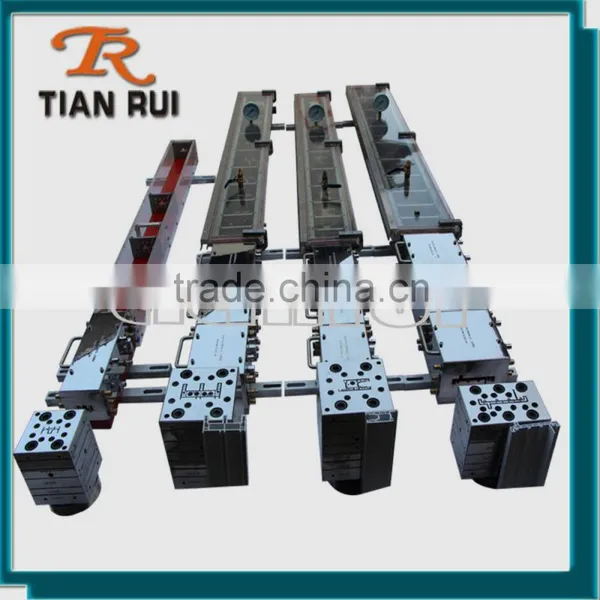

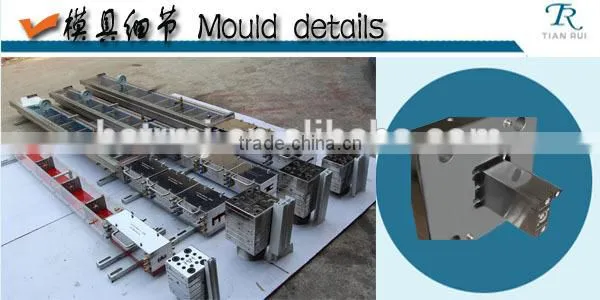

Window Profile Extrusion Die from Hubei TianRui
Detailed Product Description:
1.Advanced mirror polished surface treatment technology.
2.High quality 3Cr17 stainless steel material for pvc extrusion window mould.
3.Configuration:one die head + four heating plates+three-segment calibrator +two-meter stainless water tank or as you require.
Professional Plastic Extrusion Mould Manufacturer Since 1999 !
The extrusion die head design:
Use the removable positioning device, making it easier to disassemble.
Precise material flow control and stable extrusion.
The hidden heating design has increased the brightness of the product surface.
The special balance of the pressure holes has lowered the rejection rate.
The extrusion calibrator design :
The automatically adjusting positioning key gives it a precise size
The tapered design of the styling sets has increased the production speed greatly.
The inlet end is independent vacuum and shapes well.
The camber adjusting device ensures that the line is straight.
Extrusion cooling design:
Double vacuum system promotes the molding.
The combination design of eddy current and spray makes it cools fast..
The self-adjusting water tank panels are easy to adjust.
The stainless steel frame type system can prevent damage.
The special influent distribution gives it a cooling balance.
Our Advantages Of PVC Extrusion Mold:
1.We are the one of biggest PVC profile extrusion mould designers and manufacturers in Huangshi.
2. Our pvc profile window and door extrusion moulds account for the majority China market with all specifications.
3. Rich experience: over 20- years of experience in the pvc profile extrusion mould industry with trustworthy skills, offering comprehensive services.
4. High-quality,high speed,high precision plastic extrusion moulds and reasonable prices.
5. Different PVC,PE,PPR,ABS,Pc and other plastic pipe mould, wpc wood plastic composite mould.
6.We can provide a whole set to technical support including extruder election,formulas process and extrusion mould.
Specifications :
Name |
Window Profile Extrusion Die from Hubei TianRui |
Size |
Various types |
Mould material |
3Cr17, 3Cr17MoNiV,or as per your request |
Mould cavity |
1 or multi-cavity |
Mould composition |
Die head, aluminum heating bands, calibrators and water tank |
Feature |
Selectable co-extrusion of different raw materials: PVC, PP, PE, ABS Selectable technology: low-foaming, high-foaming & substance co-extrusion Stable discharging, high efficiency, superior quality |
Test |
Mould will be tested to get the satisfied sample before delivery |
Service |
Provide complete set of production process and technology transfer service |
Lead time |
35-40 days |
Package |
Wooden case for exporting, each mould will be cleaned before packaging. |

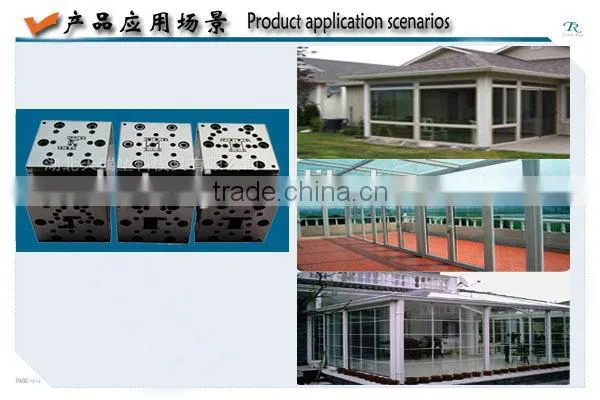

PVC Window and Door Profile Mould Type: 80 series window profiles, 60 series window profiles, casement window profiles, sliding window profiles, ect. PVC window profile designs and samples could be provided.
Hubei TianRui Plastic Mould Co., Ltd is a professional plastic profile extrusion mould manufacturer with 3000 square meters workshop and 60 skilled technical workers. Hubei Tianrui Company has accumulated over 18 years of experience in the technology of extrusion mould. From mould designing, production to commissioning, we have cultivated a mature team of personals to garantee the extrusion mould quality.
Hubei TianRui Plastic Mould Co., Ltd is a professional plastic profile extrusion mould manufacturer with 3000 square meters workshop and 60 skilled technical workers. Hubei Tianrui Company has accumulated over 18 years of experience in the technology of extrusion mould. From mould designing, production to commissioning, we have cultivated a mature team of personals.
We always can manufacture the mould as your requirement,you can offer us your own CAD drawings,or we can design the drawings for you.
Value-added services of Hubei TianRui Mould:
Comprehensive cost control service;
Mould designing service;
Emergency manufacturing delivery service:;
Mold debugging Service;
Customer production training service;
