Specifications
1.CNC stainless steel v groove bending machine2.PLC Automatic
3.Best accuracy 0.02mm
4.with servo motor
5.ISO&CE

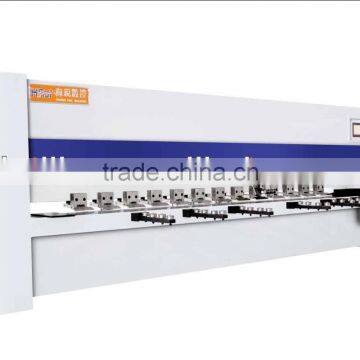

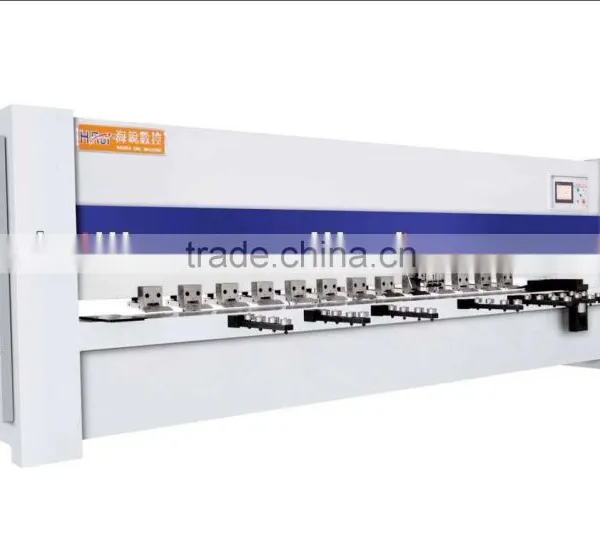

Haili stainless steel CNC Pneumatic V Groover Machine,3200mm to 8000mm
1.The equipment adopts the big pitched ball screw and high torqued servo motors as the main drive, which makes knives more stable and faster when processing.
2.The worktable of high strong plate as the surface makes the workpieces not easy to wear in machining.
3.A panel with the adjustable fuselage during the workpiece activities makes the point to every bit of mesa precision in 0.02 mm distance that within.
4.Equipment which adopts PLC man-machine interface programming allows the operating personnel easy to understand and locate accurately.
THE exclusive functions: it can not only v groove the steel directly, but also bevelly!
the leading precision of 0.02mm in the world.
Advantages:
1.precision:within 0.02mm
2.PLC system,easy to operate
3.widely use,grooving all the steel
4.customize to your need
c with servo motor
6.Pneumatic drive
This CNC V Groover Machine is the upgrade machine at the foundation of Japan Amada sheet metal v slotting machine!
Our machine has all the properties of traditional models,so as to address a range of issues encountered
by customers adequately in the actual operation.
Required specifications
Technical parameters |
3200mm |
4000mm |
5000mm |
6000mm |
|
1 |
Thickness (mm) |
0.3-6 |
0.3-6 |
0.3-6 |
0.3-6 |
2 |
Length(mm) |
4000 |
4000 |
4000 |
4000 |
3 |
Width (mm) |
850-1500 |
850-1500 |
850-1500 |
850-1500 |
4 |
Grooving speed(m/min) |
15-60 |
15-60 |
15-60 |
15-60 |
5 |
Grooving Area (mm) |
2.25 |
2.25 |
2.25 |
2.25 |
6 |
Plate speed (m/min) |
5-0.5 |
5-0.5 |
5-0.5 |
5-0.5 |
7 |
Y axle Minimum unit |
0.01 |
0.01 |
0.01 |
0.01 |
8 |
Y axle Minimum positioning accuracy |
0.05 |
0.05 |
0.05 |
0.05 |
9 |
Z axle Minimum unit |
0.01 |
0.01 |
0.01 |
0.01 |
10 |
Z axle Minimum positioning accuracy |
0.02 |
0.02 |
0.02 |
0.02 |
11 |
X axle Motor power(kw) |
W=4 |
W=4 |
W=4 |
W=4 |
12 |
Y axle Motor power(kw) |
W=1 |
W=1 |
W=1 |
W=1 |
13 |
Z axle Motor power(kw) |
W=0.4 |
W=0.4 |
W=0.4 |
W=0.4 |
14 |
Air pressure (Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
15 |
Dimension (L*W*H) |
5000*2200*2100 |
5800*2200*2100 |
6800*2200*2100 |
7800*2200*2100 |
notching machine for metal and stainless steel. Keyway Lathe, V-Groover Machines, V Grooving Machine
V Slotting Machine v cutting machine , v groove Machine .v-groove machine V groove machine V Grooving Machine
v cut machine Sheet Metal plate v Notching Machine, V-Grooving Machines ,v cut machine, V Groove Machine, V Cut Machine !
v groove bender , v groover bender
