VoIP Gsm Gateway 8 Port GoIP Configuration

VoIP Gsm Gateway 8 Port GoIP Configuration thumbnail-1
VoIP Gsm Gateway 8 Port GoIP Configuration photo-1
US$ 560 - 560.1 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TYH
Model Number:
goip-8
Contact Supplier Request Quote Chat Now
Shenzhen TYH Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/HK Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TYH
Model Number goip-8
Type VoIP Gateway

Specifications

voip gsm gateway 8 port
1,support sip&h.323
2,support IMEI change
3,Built-in encryption
4,call back&SMS

VoIP Gsm Gateway 8 Port GoIP Configuration

Voip Gsm Gateway 8 Port Goip Configuration



Description:



The GSM Fixed Wireless Terminal  16 ports Gateway GoIP-16 is a 16 SIM Card Broadband Phone Gateway that had been developed by CHINASKYLINE Ltd. GoIP_16 SIM Card Broadband Phone Gateway is a new product that connect the GSM and the VOIP seamlessly. To GoIP_16 what is installed on the Mobile SIM Card, you can register the GSM telephone on the VoIP soft switch. SIP and H.323 agreement are built in the GoIP_16 and configured flexible.voip gsm gateway for 8 port call terminal goip configuration Caller ID can be seen by using SIP. Flexible routing can meet the need of all kinds of call forwarding; even more special is that GoIP_16 support multi-device group, it can be easily combined into arbitrary number of channels of Large Gateway Groupvoip gsm gateway for 8 port call terminal goip configuration

VoIP Gsm Gateway 8 Port GoIP Configuration

Key Features

  • Multiple GoIP 8 grouping mode
  • Provide one cellular channels for IP-PBX
  • Open Standard VoIP Protocols (ITU H.323 V4 and IETF SIP V2)
  • Single or Multiple Server Registrations
  • Two 10/100 Ethernet circuits connect to the LAN and an additional device
  • GSM module for making GSM calls
  • Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
  • VLAN and QoS support
  • NAT Transversal and Router functions
  • Voice prompts, HTTP Web, Auto Provision support for configuration and updates
  • Highly stable embedded Linux operating system in high performance ARM 9 Processor

Basic Features

  • LEDs for Power, Ready, Status, WAN, PC, GSM
  • Call forward from GSM to VoIP and VoIP to GSM
  • Dial in mode or dial out mode only
  • Dial Plan
  • Password protection for both GSM dial in or dial out
  • Retransmit GSM Caller ID to VoIP terminal

Enhanced Features

  • Dynamic selection of codec
  • Advanced jitter buffer
  • Automatic traversal of NAT and firewall
  • Echo cancellation for Speakerphone
  • Comfort noise generation (CNG)
  • Voice activity detection (VAD)
  • Auto provisioning (requires auto provisioning server)
  • On line firmware upgrade
  • Multi-language support: English and Chinese

Hardware Specifications

  • Processor: ARM9E 133MHz
  • DSP: VPDSP101 196MHz
  • Memory: RAM 16MB/ Flash 4MB
  • GSM Module: Type: 850MHz, 900MHz, 1800MHz, 1900MHz
  • Power: Input AC100V ~ 240V, output DC12V/2A +-10%
  • Power consumption: 32W maximum
  • Network card: 100/10Base-T x2
  • LED: Operation and lines light
  • GSM Passway:16
  • Operating temperature:10°C to 40°C (32°F to 104°F)
  • Weight:1.5kg (Including AC/DC Adapter)
  • Warranty:one year

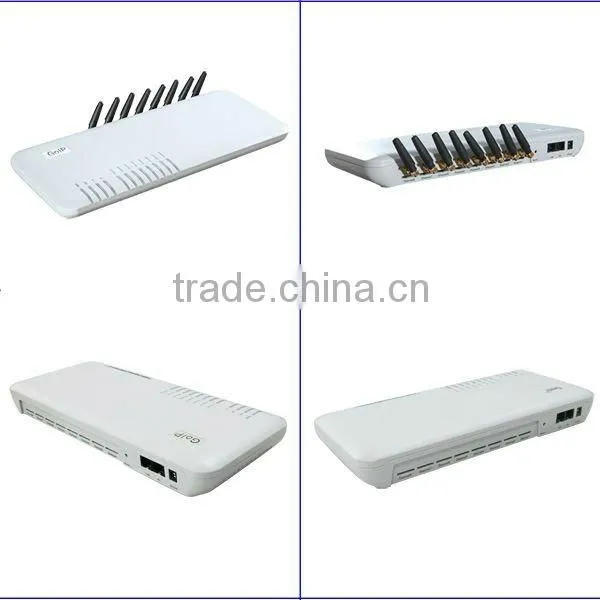

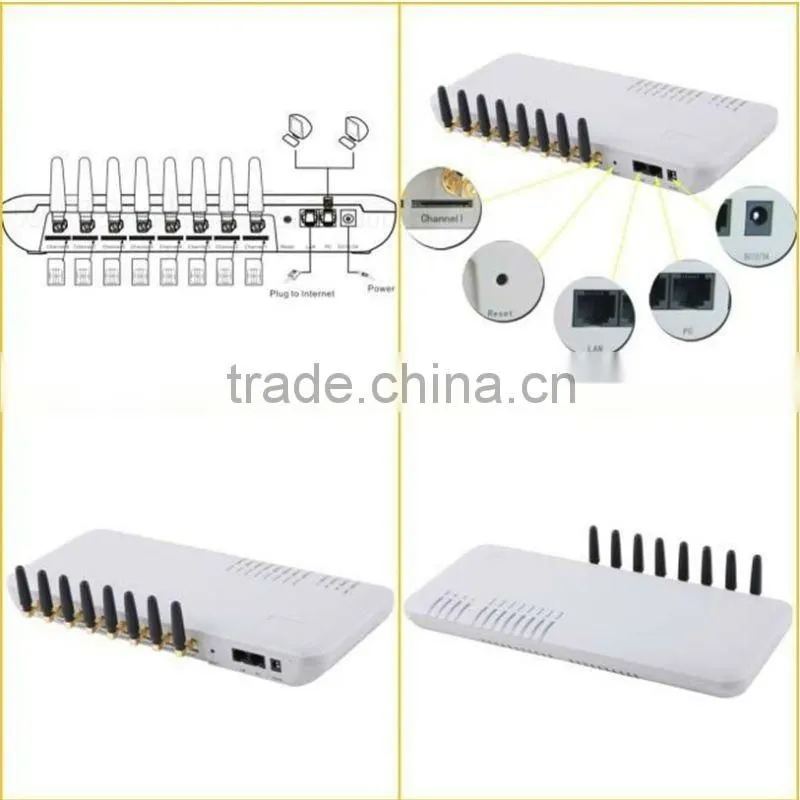

Detailed picture

VoIP Gsm Gateway 8 Port GoIP Configuration



VoIP Gsm Gateway 8 Port GoIP ConfigurationVoIP Gsm Gateway 8 Port GoIP Configuration





VoIP Gsm Gateway 8 Port GoIP Configuration

 VoIP Gsm Gateway 8 Port GoIP ConfigurationVoIP Gsm Gateway 8 Port GoIP ConfigurationVoIP Gsm Gateway 8 Port GoIP Configuration

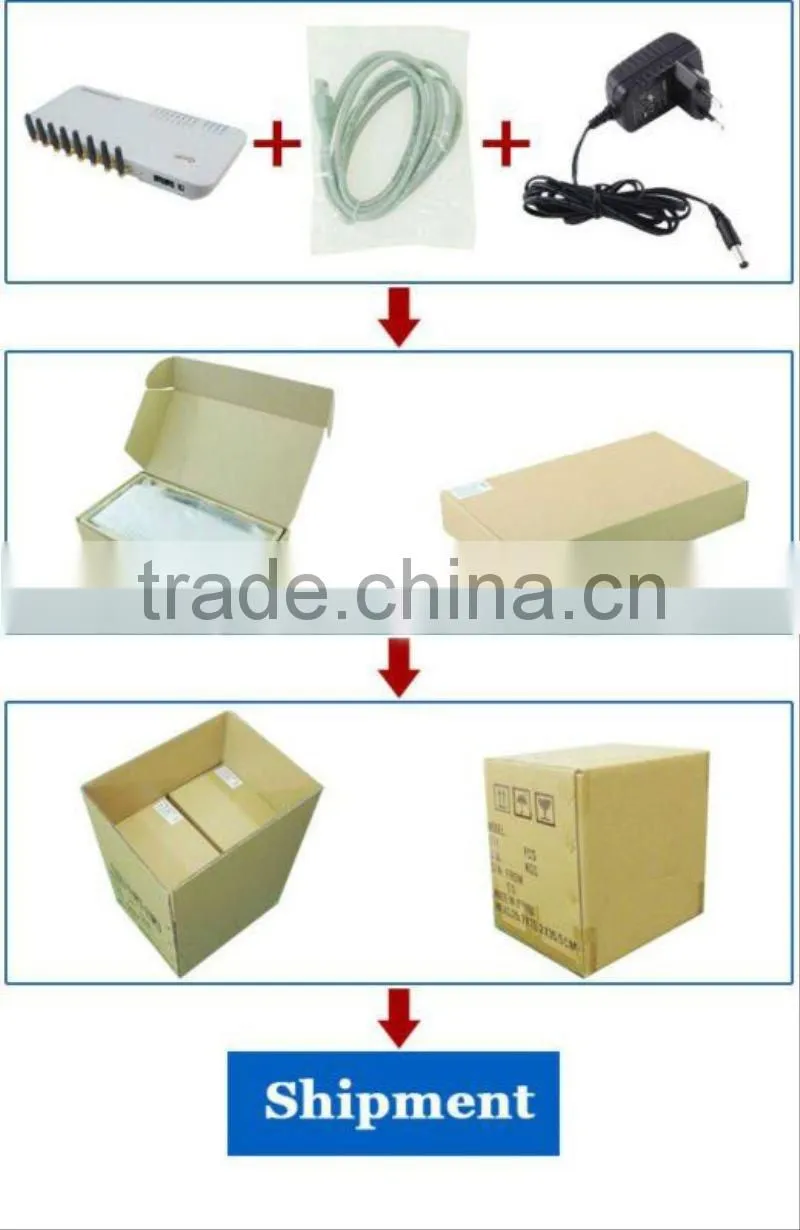

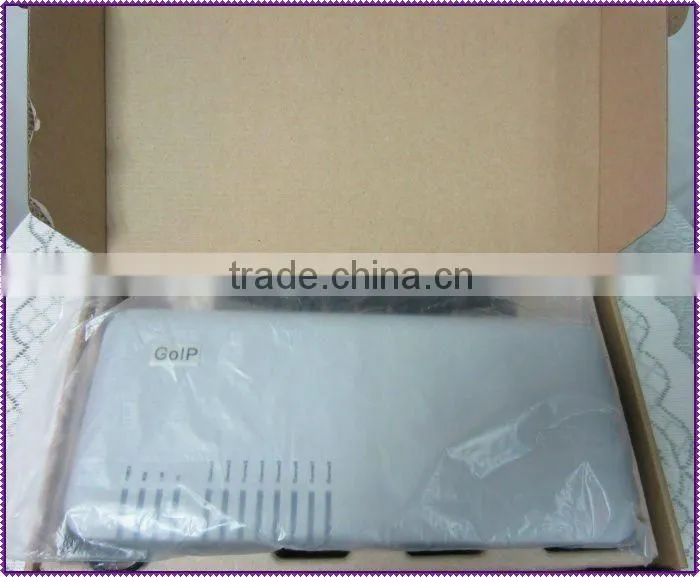

package

 VoIP Gsm Gateway 8 Port GoIP ConfigurationVoIP Gsm Gateway 8 Port GoIP Configuration







If you have any needs please contact me



 VoIP Gsm Gateway 8 Port GoIP Configuration
