Home > Products > Ventilators > 380V good quality axial flow fan
380V good quality axial flow fan
- 300 Set / Sets per Month
- Tianjin / Qingdao/Shanghai
- T/T
Product Details
Electric Current Type: | AC | Mounting: | Roof Fan | Blade Material: | Stainless Steel |
Place of Origin: | Shandong, China | Brand Name: | GRAD | Model Number: | ANY |
Voltage: | 380v | Power: | 0.025KW-11KW | Certification: | CCC, CE, Other, CCC, CE, ISO9001 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
380V good quality axial flow fan
product description
1, Cylinder type wheel structure, reduce the flow loss, improve efficiency
2, Use explosion-proof motor and can be used for the corrosion of containing flammable, explosive gas
3, According to the impeller diameter is divided into 13 kinds of number
4, Consists of impeller and casing and set the wind
5, Through the CE, CCC and ISO: 9001 certification
Specification
Item | Axial flow fan |
Model | T35-11/BT35-11 |
Application | Explosion-proof ventilation equipment |
Power Source | Electric Blower |
Rated Power | 0.025kw-11kw |
Total pressure efficiency | 0.64-0.77% |
Leaf blade Angle | 15°20°25°30°35° |
Spindle speed | 960/1450/2900r/min |
The impeller diameter | 280/315/355/400/450/500/560/630/710/800/900/1000/1120mm |
Certification | CE,CCC & ISO:9001 |
MOQ | 1 Set for Centrifugal Fan |
Order Requirement
We will appreciate it a lot if you can offer us your product performance requirements and operation environment, so that we can customize optimal production to meet your every requirement.
1. Air volume
2. Total Pressure or Static Pressure
3. Voltage and Frequency
4. Medium Temperature and Density
5. Altitude of Operation Place

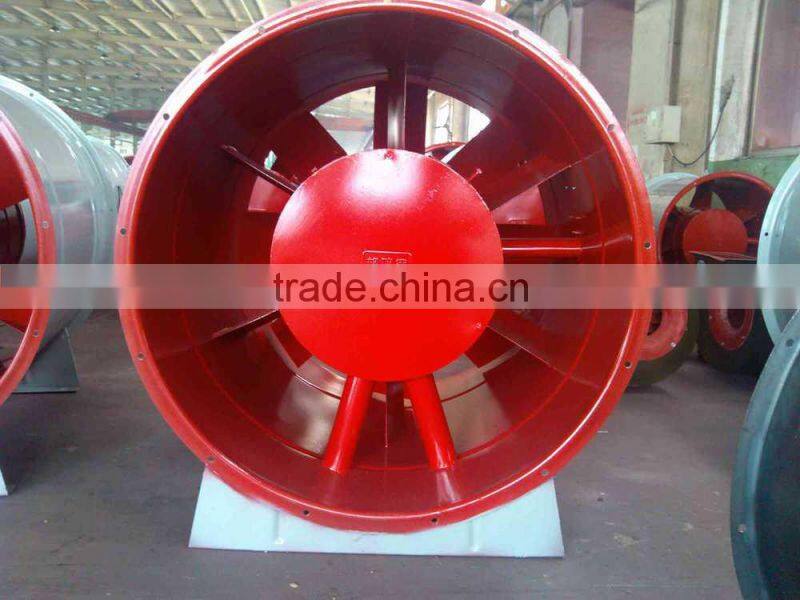

T35-11 Axial flow fan display

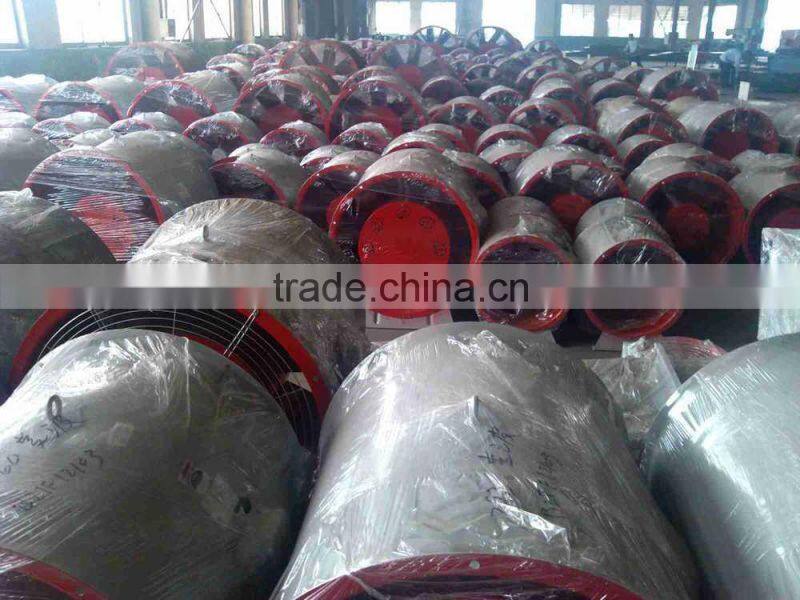

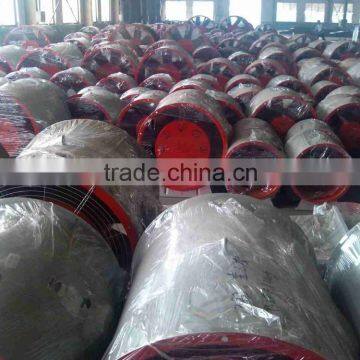

packaging&shipping
1,plywood package or directly naked into containers with fixation.
2,Delivery time depends on the number of product.
company information
Shandong GRAD group was founded in 1993, specializing in the production of central air-conditioning series products and composite products.The company’s products won the title of China famous brand product, GRAD trademark is known as China's well-known trademarks.Group products through a ISO9001, ISO14001, ISO18001 authentication, axial flow fan, fan coil units for CE certification, fiberglass products passed the ASTM test.
1,About the sample: if you need, we can through the international express mail to you, you need to pay for samples and Courier fees
2. Product warranty: Usually, our product warranty is 18 months after leaving factory or 12 months after
installation.If parts are damaged in the quality insurance period because of our quality,we can change
the damaged parts free of charge.
3. Terms of payment :T/T or L/C.
4. Installation: If the project needs our installation guidance, we can send our engineer and translator.
The expenses shall be borne by the project owner.
Contact Us
- Shandong GRAD Group Co., Ltd.
- Contact nameJessica Hu
- Phone0086-534-2730845 , 2730827,273
- AddressNo.6 Grad Road, Tianqu Industrial Park,Dezhou,Shandong,China Dezhou,Shandong
