Home > Products > Ventilators > High Temperature Resistant High Pressure Centrifugal Fan
High Temperature Resistant High Pressure Centrifugal Fan
- Qingdao Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | GRAD | |
| Model Number | 4-72 | Type | Ventilation |
Product Description

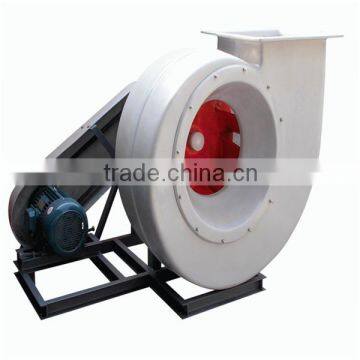

High Temperature Resistant High Pressure Centrifugal Fan
Applications
(1) Industrial boiler, Garbage incinerator.Industrial waste heat recovery device.
(2) Cooling and heat dissipation
(3) Forced Ventilating: Generally used in ventilating for normal industrial and Large-scale buildings.
(4) Gas and materials transfer: General air delivery, Combustible gas delivery, Corrosive gas delivery, Gas mixed with impurity delivery.
(5) Eliminate dust and Particulate matter: Transfer the coal powder, Particle material, Powder material, Fragment materials, Fiber materials.
Performance table
The following datas are only part of performance of our product. If you can't find the datas you need, pls send us your performance requirements, we will provide you customized design service.
Usually we use plywood package or naked package. Some of the products like fan coil unit or table tennis board have standard carton package. The shipping terms are LCL, 20’ container, 40’ container

Before-sale services:
(1) Tell customers how to use our products and matters needing attention.
(2) Guide customers to choose the best and economic product, recover the investment within short time.
(3) Site inspection if you need.
In-Sale services:
(1)Quality control must be inspected strictly.
(2)In accordance with the agreements stipulated in the contract.
After-sale services:
(1) If the project needs our installation guidance, we can send our engineer and translator. We can also send customers installation video to teach them how to fix and operate with
our product.
(2) Usually, our product warranty is 18 months after leaving factory or 12 months after installation. within this months, all parts broken will be responsible for our factory.
(3) Regular contact with customer, consult with the customer feedback, come true with
the customer's two-way communication.
Shandong GRAD Group Co., Ltd. is located in Dezhou city, Shandong Province,covering an area of 450,00 square meters. It is a large modern enterprise group with central air-conditioning, ventilation, FRP products research development, design, production, sales, installation and maintenance.It is the backbone enterprise of "Dezhou • Central air-conditioned city" named by China Refrigeration and Air Conditioning Industry Association(CRAA).
GRAD Group products include: central air conditioning series products(chillers, air conditioners, fan coils, cooling towers, ventilators and accessory products), FRP series products (FRP winding pipes and storage tanks), SMC moulding products (water tanks, table tennis boards, basketball boards, manhole covers, etc) . All products have been inspected by the national quality inspection department.

If you have any question,please fell free to contact with following information.
Contact Us
- Shandong GRAD Group Co., Ltd.
- Contact nameJessica Hu Chat Now
- Phone0086-534-2730845 , 2730827,273
- AddressNo.6 Grad Road, Tianqu Industrial Park,Dezhou,Shandong,China, Dezhou, Shandong
