Home > Industrial Equipment & Components > Power & Generating Sets > Other Generators > Gasoline Welder Generator

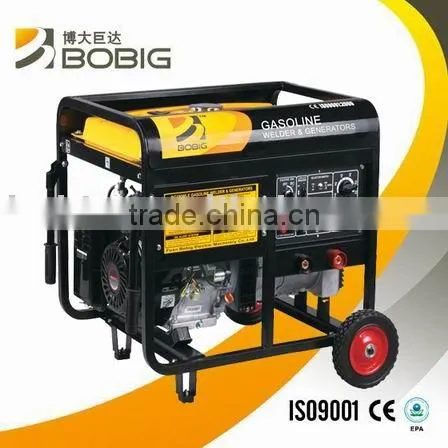

Gasoline Welder Generator
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BOBIG
Model Number:
BG190LWE
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
BOBIG
Model Number
BG190LWE
Specifications
Gasoline welding generator 190A,Copper winding,New italy technology alternator(copy Italian famous brand SINCRO)Gasoline welding generator 190A Copper winding,New italy technology alternator(copy Italian famous brand SINCRO,controlled by reactor,exllcent welding application
| Rated frequency (Hz) | 50 60 |
| Rated power(kW) | 5.0 5.5 |
| Rated voltage (V) | 230 240/120 |
| Rated current (A) | 21.7 23/45.8 |
| No.of phase | Single |
| Power factor (cosφ) | 1 |
| Weldling voltage at zero load (DC)(V) | 60-70 |
| Rated weldling current DC(A) | 160 |
| weldling voltage(DC)(V) | 25-30 |
| Weldling load continous ratio | 60% |
| Weldlig current adjustment range(A) | 50-190 |
| Electrode φ(mm) | 1.6-4.0 |
| Rated speed (r/min) | 3000 3600 |
| Excitation mode | Self-excitation and constant voltage (AVR) |
| Recifying mode | IGBT+three-phase rectifying bridge (PWM) |
| Insulation grade | F |
| Pole number | 2 |
| Engine Model | BG390 |
| Engine type | Single-cyinder,four-stroke,OHV,air-cooled |
| Cylinder NO,-bore×stroke(mm) | 1-88×64 |
| Displacement | 389 |
| Rated power[kW(Hp)/(r/min)] | 7.0/3000 7.7/3600 |
| Compression ratio | 8.5:1 |
| Rated rotation speed | 3000 3600 |
| lgnition system | T.C.I |
| Cooling system | Air cooled |
| Lubrication system | Splash |
| Starting system | X:Recoil starter E:Electric starter |
| Fuel type | Automotive unleaded gasoline |
| Lube oil Brand | CDgrade or SAE10W-30,15W-40 |
| Capacity of cooling Water(L) | Without |
| Lube capacity (L) | 1.1 |
| Starting motor capacity (V-kW) | 12V 0.4kW |
