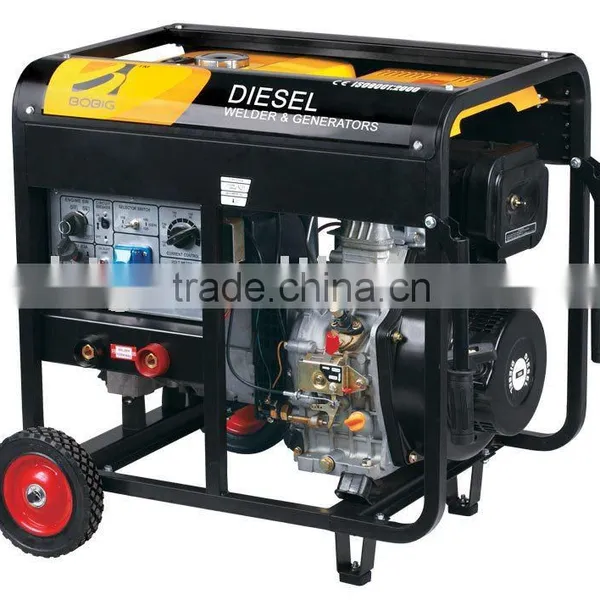

Diesel Welder Generator
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BOBIG
Model Number:
BD190LWE
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
BOBIG
Model Number
BD190LWE
Specifications
Diesel welder generator,Copper winding,New italy technology alternator(copy Italian famous brand SINCRO)Diesel welder generator, Copper winding,New italy technology alternator(copy Italian famous brand SINCRO,controlled by reactor,exllcent welding application
| Rated frequency (Hz) | 50 60 |
| Rated power(kW) | 4.6 5.0 |
| Rated voltage (V) | 230 240/120 |
| Rated current (A) | 20 21/41.7 |
| No.of phase | Single |
| Power factor (cosφ) | 1 |
| Weldling voltage at zero load (DC)(V) | 60-70 |
| Rated weldling current DC(A) | 160 |
| weldling voltage(DC)(V) | 25-30 |
| Weldling load continous ratio | 60% |
| Weldlig current adjustment range(A) | 50-190 |
| Electrode φ(mm) | 1.6-4.0 |
| Rated speed (r/min) | 3000 3600 |
| Excitation mode | Self-excitation and constant voltage (AVR) |
| Recifying mode | IGBT+three-phase rectifying bridge (PWM) |
| Insulation grade | F |
| Pole number | 2 |
| Engine model | BD186FA/186FAE |
| Engine type | Single-cylinder, four-stroke, air-cooled,direct injection |
| Displacement (ml) | 418 |
| Bore x stroke (mm) | 86×72 |
| Compression ratio | 19 |
| Rated power kW/(r/min) | 5.7/3000 6.3/3600 |
| Fuel type | 0#(summer),-10#(winter),-35#(chill cold)light diesel |
| Lube oil brand | L-CED Grade 15W30 or 15W40 |
| fuel consumption (g/kW.h) | ≤340 |
| Fuel tank capacity (L) | 16 |
| Continous running time (hr) | 10 |
| Overall dimension (mm)(L×W×H) | 720×480×645 |
| Dry weight (kg) | X:130 E:147 |
| Starting system | XW: Recoil starter EW: Electric starter |
| Noise level (at rated load) dB(A)/7m | 78 |
| Structure type | open-frame |
