Specifications
OEM electric diesel generator set1.large power by famous engine
undproof/open type, brushless
3.stable performance

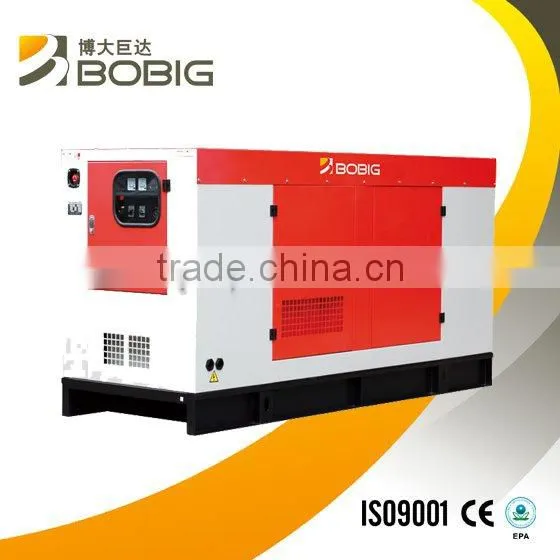

OEM 15KW-500KW electric diesel generator set
Dtailed product Description
Generator Set/soundproof generator/silent generator/power genset/DC set
detailed product description:
1) Rated output: 8 - 500kW / 10kVA - 625kVA
2) Rated voltage: 400 / 230V, 380 / 220, 220 / 120
3) Rated frequency: 50 / 60Hz
4) Power factor: 0.8
Engine: LOVOL or Deutz or Cummins or New Holland China
1)Cooling method: closed water cooling or air force cooled
2)Starting method: electric start
3)Rated speed: 1,500 / 1,800rpm
4) Noise level: 75dB to 80dB 7 meter away
Alternator:
1) Brand: Stamford or Leroysomer or Our BOBIG series
2) Rated output: 8 - 500kW / 10kVA - 625kVA
3) Rated voltage: 400 / 230V
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1,500rpm / 1,800rpm
9) Excitation: harmonic excitation or phase compound or brushless
11) Voltage regulation: automatic
12) 1.0% voltage regulation (max.) in static conditions
13) Protection class: IP 22 or IP23
Control panel:
1) The generator control panel is manufactured locally by
2) The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mcb of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer syste)
i) With EPA certification
Packing:
Wooden case or plywood case
To know a real BOBIG factory:
Please Check our Factory Audit Report by BV
(you can download the report from our homepage)
