120A Excellent Performance Diesel Welder Generator
US$ 2,000 - 3,000
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BOBIG/OEM
Model Number:
BDW120
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20KW to 24KW Yanmar Diesel Generator GF-3US$ 999 - 9,999MOQ: 1 Set -
Waterproof Single-phase Brushless AC AlternatorUS$ 75 - 120MOQ: 10 Sets
-
Italy Type Alternator 1.8KW-5.0KW for SaleUS$ 75 - 130MOQ: 10 Sets
-
Factory Diesel Generator 8KW-1000KWUS$ 999 - 8,999MOQ: 1 Set
-
New 190A Soundproof Diesel Welder GeneratorUS$ 1,755 - 2,448MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
BOBIG/OEM
Model Number
BDW120
Output Type
AC Single Phase
Speed
3000/ 3600rmp
Frequency
50/60HZ
Rated Power
1.5Kw
Rated Voltage
110,120,220,230,240V
Rated Current
100A
Specifications
OEM 120A diesel welder generator1.Italy technology generator
2.exellent performance welder generator
3.different from others
OEM 120A diesel welder generator for 1 year warranty

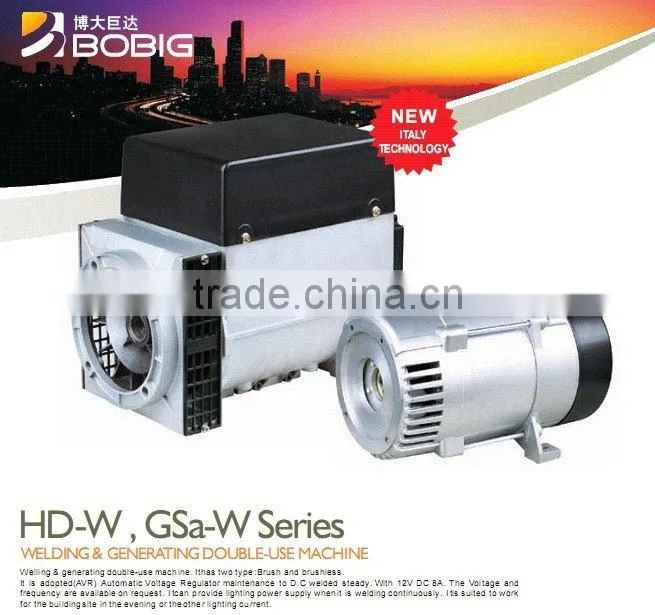

Copper winding,New italy technology alternator(SINCRO type),controlled by reactor,exllcent welding application

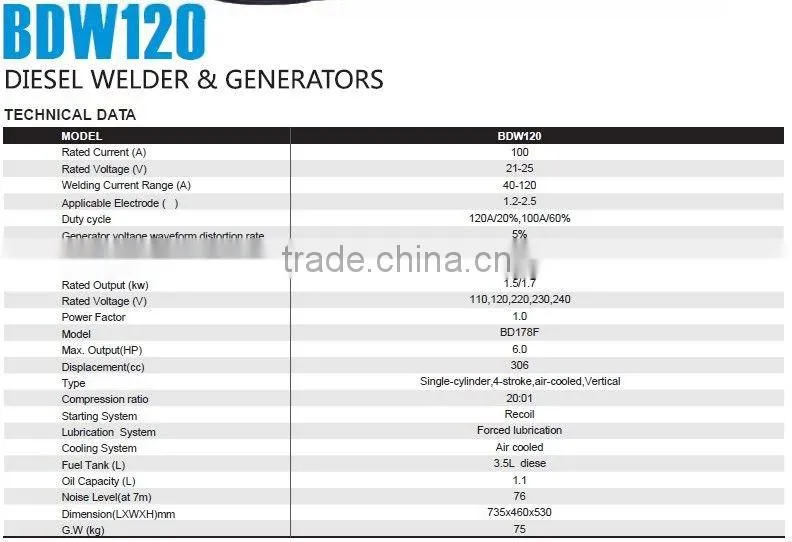

excellent welder generator:
| Rated frequency (Hz) | 50 60 |
| Rated power(kW) | 1.5kw |
| Rated voltage (V) | 230 240/120 |
| Rated current (A) | 21.7 23/45.8 |
| No.of phase | Single |
| Power factor (cosφ) | 1 |
| Weldling voltage at zero load (DC)(V) | 60-70 |
| Rated weldling current DC(A) | 100 |
| weldling voltage(DC)(V) | 21-25 |
| Weldling load continous ratio | 60% |
| Weldlig current adjustment range(A) | 50-120 |
| Electrode φ(mm) | 1.6-4.0 |
| Rated speed (r/min) | 3000 3600 |
| Excitation mode | Self-excitation and constant voltage (AVR) |
| Recifying mode | IGBT+three-phase rectifying bridge (PWM) |
| Insulation grade | F |
| Pole number | 2 |
| Engine Model | BD178 |
| Engine type | Single-cyinder,four-stroke,OHV,air-cooled |
| Cylinder NO,-bore×stroke(mm) | 1-88×64 |
| Displacement | 389 |
| Rated power[kW(Hp)/(r/min)] | 10.0/300011/3600 |
| Compression ratio | 8.5:1 |
| Rated rotation speed | 3000 3600 |
| lgnition system | T.C.I |
| Cooling system | Air cooled |
| Lubrication system | Splash |
| Starting system | X:Recoil starter E:Electric starter |
| Fuel type | Automotive unleaded gasoline |
| Lube oil Brand | CDgrade or SAE10W-30,15W-40 |
| Capacity of cooling Water(L) | Without |
| Lube capacity (L) | 1.1 |
| Starting motor capacity (V-kW) | 12V 0.4kW |
For more detail information,pls feel free to contact with us.
To know a real BOBIG factory:
Please Check our Factory Audit Report by BV
(you can download the report from our homepage)
