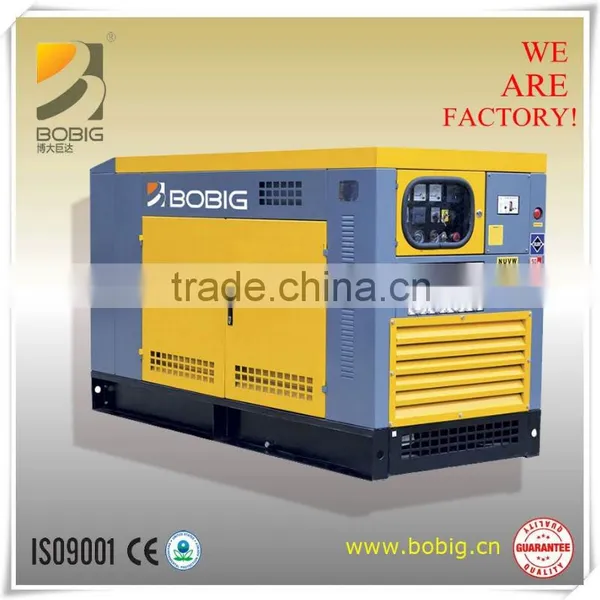

OEM supplier,8KW to 30KW QUANCHAI power generator set

Diesel Generator with QUANCHAI water cooled engine from 8kw to 30KW

1) Output range: 8KW -30kW
2) Engine model: QC380D,QC385D,QC480D,QC490D,QC498D,QC4102D,QC4105D

3) Alternator: Stamford type
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤+ -1%
14) Voltage deviation at instantaneous state: ≤+20%
15) Voltage return time: ≤4s
16) Voltage modulation: ≤0.3%
17) Standard configuration of gensets:
A) Engine: QUANCHAI diesel engine
B) Engine type: Water-cooled, in line four-stoke, dry cylinder liner, direct injection
C) Alternator: Brushless and "H" class insulation
18) Control system:
A) Automatic alarm system: The unit has the acousto-optics alarm system and
Arrestor for any situation as the start defeat, the water is over temperature,
The oil pulls down, over speed, over load and over current
B) Operation display:
I) Unit voltage, tri-phase load current and frequency display
Ii) Water temperature, oil pressure display
Iii) Fuel level, fuel temperature display
Iv) Audible and visual alarm lamps and buzzers
19) Starting system: DC alternator is used to start engine
20) Short circuit protection: MCCB air switch
21) Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40 degree
22) Filter system: Oil, fuel and air filter
23) Accessories: Exhaust elbow, bellow, muffler
24) Supply standard collocation:
A) Diesel engine with all accessories, 3 filter, electric systems
B) Alternator
C) Steel structure
D) Fan and water tank cooling system
E) Flange connector
F) 12 / 24V starting motor and charge engine
G) Air cleaner, fuel cleaner, oil cleaner
H) On-board control panel

Warranty:Guarantee for one year or 1200hours from ex-factor date.During the repair time,BOBIG COMPANY will provide the free easy-damageable spare arts of diesel engine caused by our quality of production or raw material.After expiration,BOBIG COMPANY will supply cost spare part for you to repair it.

Manufacturing standard:

ISO9001,EPA,CE and .......

For more detail information,pls feel free to contact with us.
