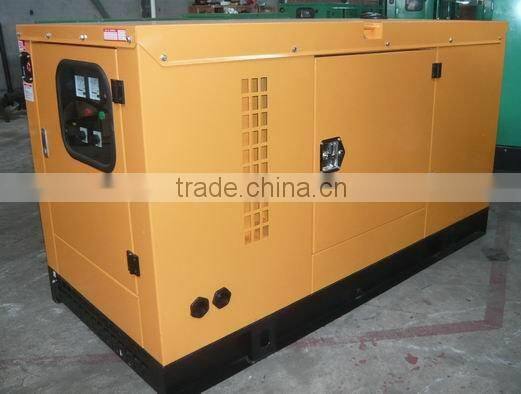

GENERATOR DEUTZ

GENERATOR DEUTZ photo-1
US$ 999 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BOBIG Diesel Generator
Model Number:
GF3 Generator Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name BOBIG Diesel Generator
Model Number GF3 Generator Diesel
Output Type AC Three Phase
Speed Generator Diesel 1500/1800RMP
Frequency Generator Diesel 50/60HZ
Rated Power Generator Diesel 8KW-120KW
Rated Voltage Generator Diesel 400/230V 220/127V
Rated Current Generator Diesel 14.4A-900A

Specifications

Generator Diesel
Brushless alternator
Famous engine brand
Rated power:8kw to 1000kw
one year warranty

Generator Diesel



POWERED BY cummins,lovol, quanchai chai,Deutz engine et
Detailed Product Description


Features:
1) Rated output: 8 - 500kW / 10kVA - 625kVA
2) Rated voltage: 400 / 230V, 380 / 220, 220 / 120
3) Rated frequency: 50 / 60Hz
4) Power factor: 0.8

Engine: LOVOL or Deutz or Cummins or New Holland China
1)Cooling method: closed water cooling or air force cooled
2)Starting method: electric start
3)Rated speed: 1,500 / 1,800rpm
4) Noise level: 65dB to 68dB 7 meter away

Alternator:
1) Brand: Stamford or Leroysomer or Our WT series
2) Rated output: 8 - 500kW / 10kVA - 625kVA
3) Rated voltage: 400 / 230V
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1,500rpm / 1,800rpm
9) Excitation: harmonic excitation or phase compound or brushless
11) Voltage regulation: automatic
12) 1.0% voltage regulation (max.) in static conditions
13) Protection class: IP 22 or IP23

Control panel:
1) The generator control panel is manufactured locally by
2) The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mcb of suitable rating with overload and short circuit protection
h) With AMF control panel or with ATS (automatic transfer system)
i) With EPA certification

GENERATOR DEUTZ

GENERATOR DEUTZ


GENERATOR DEUTZ
