Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Open Deutz Diesel Generator

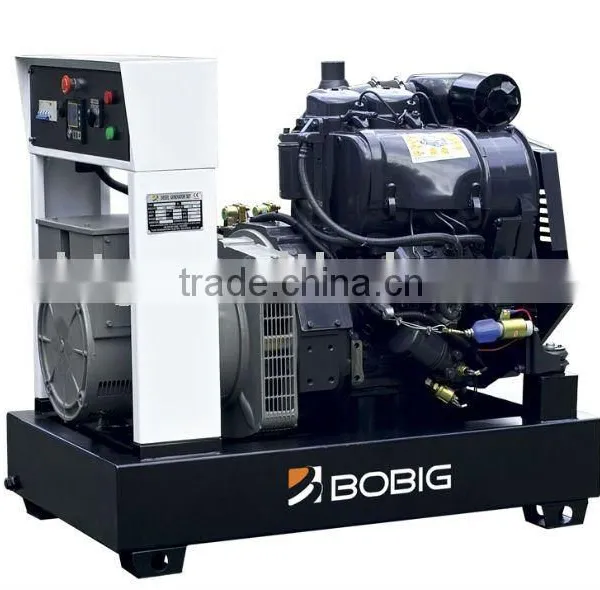

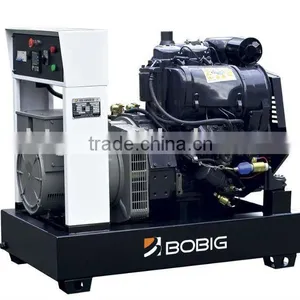

Open Deutz Diesel Generator
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BOBIG
Model Number:
BD100
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
BOBIG
Model Number
BD100
Output Type
AC Three Phase
Speed
1500RPM/1800RPM
Frequency
50HZ/60HZ
Rated Power
100KW
Rated Voltage
400V/230V
Rated Current
180AH
Specifications
Open deutz diesel generator1.Open deutz diesel generator 100kw
2.Alternator Stamford, Leroy Somer
3. 50/60hz, 400/230V

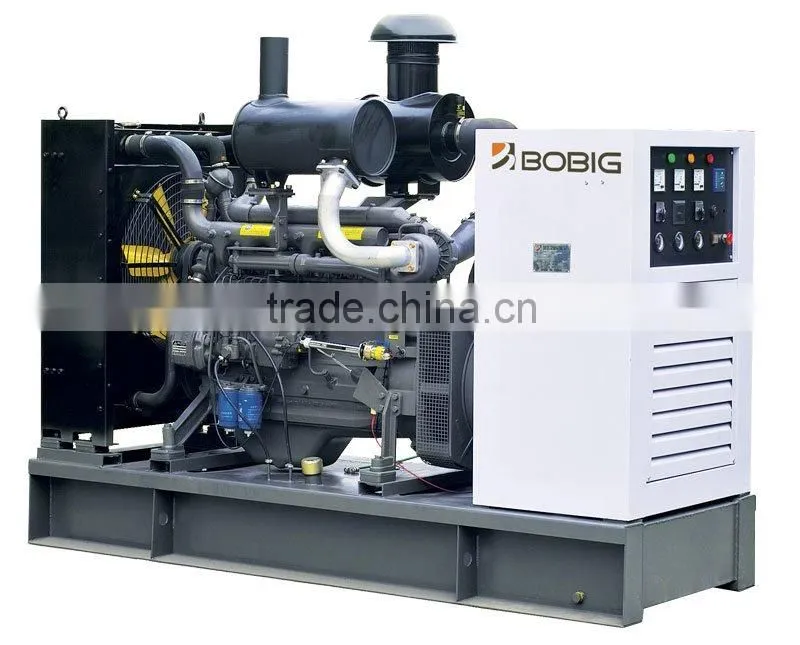

Open deutz diesel generator
Powered by DEUTZ Engine function stability credibility , Tightly structure ,excellent design and craft beautiful appearance, widely used in industrial, commercial, family, etc. Auxiliary Power
| Model | GF2-100 | |
| ENGINE | Engine Model | TBD226B-6D |
| Rated Output(KW) | 120 | |
| Max Output(KW) | 132 | |
| Starting method | Electric starting | |
| Cooling method | Closed water cooled | |
| Governing method | Mechanical | |
| Intaking method | Natural apirated | |
| Cylinder numbers | 6 | |
| Fuel consumption(g/kw.h) | ≤205 | |
| Bore/stroke(mm) | 105/120 | |
| Displacement(L) | 6.23 | |
| Oil volume(L) | 13 | |
| Type | Water cooling, in-line, four-stroke, humid cylinder liner,direct injection | |
| Crankshaft rotation direction | Counterclockwise(face to output end) | |
| ALTERNATOR | Model | 274D |
| Rated Output(KW)(KVA) | 100(125) | |
| Rated Voltage(V) | 400/230 | |
| Rated Current(A) | 180 | |
| Frequency(HZ) | 50/60 | |
| Power Factor | 0.8 lagging | |
| Phase/Connection | 3-phase 4-wire Y-type connection | |
| Excitation | Harmonic or Brushless Excitation | |
| Voltage Regulation | Manual/Automatic | |
| Net Weight(kg) | 1450 | |
| Packing Size LWH(cm) | 250*90*185 | |
