Specifications
Diesel Generator1.brushless alternator
2.stamford alternator DEUTZ engine
3.stable performance
4.overload protection.
These industrial generators are suitable for prime power and standby use,Everything is automatic. Power fails, generator turns on.Power is restored, generator shut off. That simple!

Model | GF2-24 | |
ENGINE | Engine Model | D226B-3D |
Rated Output(KW) | 30 | |
Max Output(KW) | 33 | |
Starting method | Electric starting | |
Cooling method | Closed water cooled | |
Governing method | Mechanical | |
Intaking method | Natural apirated | |
Cylinder numbers | 3 | |
Fuel consumption(g/kw.h) | 208 | |
Bore/stroke(mm) | 105/120 | |
Displacement(L) | 3.12 | |
Oil volume(L) | 7.25 | |
Type | Water cooling, in-line, four-stroke, humid cylinder liner,direct injection | |
Crankshaft rotation direction | Counterclockwise(face to output end) | |
ALTERNATOR | Model | 184G |
Rated Output(KW)(KVA) | 24(30) | |
Rated Voltage(V) | 400/230 | |
Rated Current(A) | 43.2 | |
Frequency(HZ) | 50/60 | |
Power Factor | 0.8 lagging | |
Phase/Connection | 3-phase 4-wire Y-type connection | |
Excitation | Harmonic or Brushless Excitation | |
Voltage Regulation | Manual/Automatic | |
Net Weight(kg) | 650 | |
Packing Size LWH(cm) | 168*70*150 | |
Quality finished Enclosures

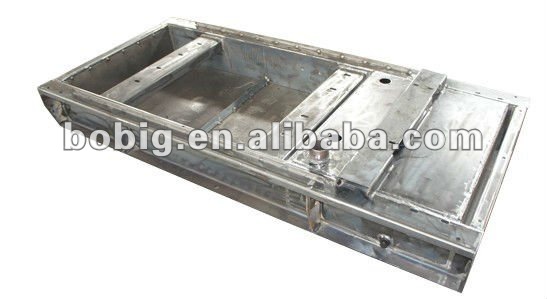

Generator enclosures are solid structures designed on CAD Systems (Computer Aided Design). Laser cutting machines cut the different shapes out of heavy sheet metals.After the components are precision welded, they undergo a chemical cleaning process. The next step is electrostatic painting. Electrostatic force pulls paint around corners and edges ensuring a smooth, automotive quality finish.

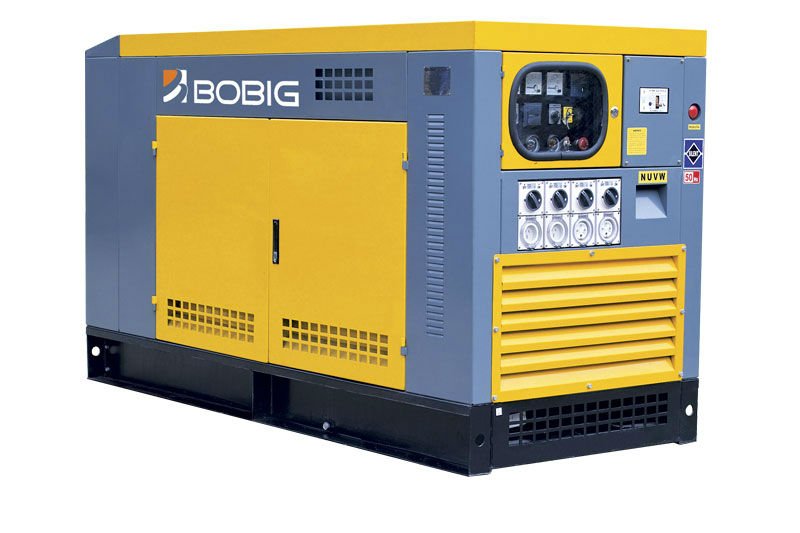

BOBIG generators are designed for many applications where power is needed. BOBIG generators are manufactured to commercial specifications using the latest manufacturing technologies. All models are built with the quality and reliability you would expect from a leading generator manufacturer.

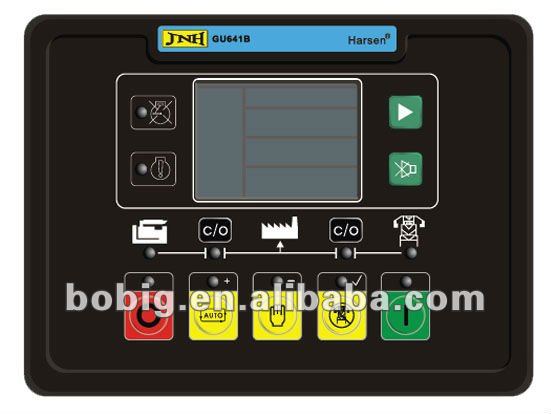

The generator is remarkably easy to use. Just press the green button to start and the red button to stop. Advanced engine monitoring and control is achieved by using the Harsen GU641B controller
Imagine the power fails and everything goes dark. Your not worried. Because your generator has a automatic transfer switch, it safely connects itself to your home and disconnects when the normal utility power is restored. Within seconds your power is back online and powering your whole home. You can leave your home knowing it is protected.

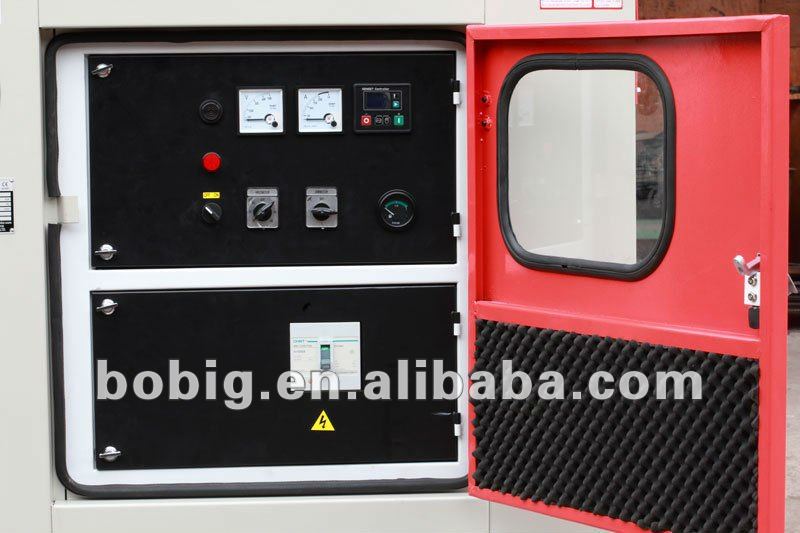

A main circuit breaker protects the generator from overload. Protection for other components is from a set of fuses located behind the panel. Indicator lights illuminate if one has tripped. We do not expect you will ever have any problems but, we still build our generators to be easily serviced.
