Kubota Water Cooled Generator

Name: Kubota Water Cooled Generator
Brand: BOBIG
SKU: 109127843
Availability: InStock

US$ 1,999 - 9,999 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

BOBIG

Model Number:

Fujian Bobig Electric Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FUZHOU

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name BOBIG

Model Number BK

Output Type AC 3 Phase

Speed 1500/1800rpm

Frequency 50HZ/60HZ

Rated Power 8kw to 30kw

Rated Voltage 220,230,240 ,400,440,380V

Rated Current 14.4A to 54A

Specifications

Kubota Water cooled Generator
Japan Kubota engineV1505-BG
Stamford, leroy somer generator

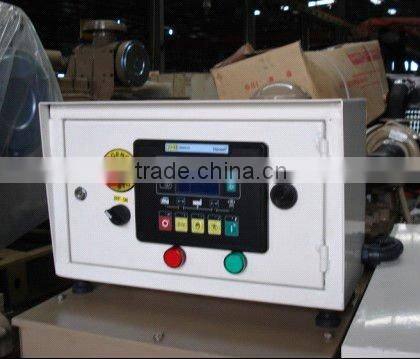

AMF ATS CE
Rated power 10kw

Kubota Water cooled Generator

specifcition

KUBOTA series diesel generator water cooled (3phase)
Specification data
Genset model	BK14S
Prime Power	10KW/12.5KVA
Standby Power	11KW/14KVA
KUBOTA ENGINE	Model	V1505-BG
	Type	Vertical 4 cycle liquid cooled Diesel
	No.of Cylinders	4
	Bore*Stroke mm(in)	78.078.4(3.073.09)
	Displacement	1.498(91.41)
	Combustion System	E-TVCS
	Intake System	Natural aspirated
	Fuel Injection Pump	Bosch type PFR MD pump
	Direction of Rotation	Counterclockwise(viewed from flywheel side)
	Injection Nozzle	Throttle type
	Compression Ratio	22
	Lubricating Oil	Quality better than CD class
	Oil Pan Capacity L(gal)	6.0(1.59)
	Cooling System	Radiator cooling
	Starter Capacity V-A	12-1.2
	Alternator Capacity V-A	12-30.0
	Used Fuel	Diesel Fuel No.2-D(ASTM D975)
	Dry Weight kg(lbs)	110.0(242.5)
Leroy Somer Alternator	Alternator Model	LSA 40 VS2
	Alternator manufacturer	Leroy Somer
	Exciter type	Single bearing ,Brushless,Self-excited
	Prime power	10KW/12.5KVA
	Rated speed	1500RPM
	Rated frequency	50Hz
	Phase	3
	Rated Voltage	400V/230V(Available with customer requirements)
	Power factor	0.8
	Voltage adjust range	5%
	Voltage regulation NL-FL	-0.01
	Insulation grade	H
	Protection grade	IP23

Terms & conditions:
Packing: plywood
Warranty: 12 months or 1500hours from the date of purchase whichever comes first,filter,belts,
gaskets,or some parts which are easy to consume is not included.
Production time: Within 40 working days depending on different powers and quantity
Term of Payment: 30% deposit before production, the balance shall be paid before delivery by T/T.
