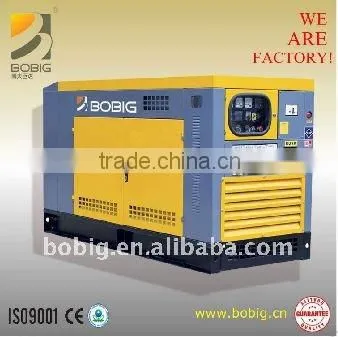

Deutz Super Silent Diesel Generator

Name: Deutz Super Silent Diesel Generator
Brand: BOBIG
SKU: 109127111
Availability: InStock

US$ 2,000 - 7,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

BOBIG

Model Number:

BD100S

Fujian Bobig Electric Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name BOBIG

Model Number BD100S

Output Type AC Three Phase

Speed 1500/1800rmp

Frequency 50/60

Rated Power 100KW

Rated Voltage 380,400,415/200,208,220V It up to your optional

Rated Current 120KVA

Specifications

Deutz super silent diesel generator
1.Original Deutz electric generator engine
2.original stamford generator
3.CE,ISO9001

Deutz super silent diesel generator

Description

Model		GF2-36
ENGINE	Engine Model	TD226B-3D
	Rated Output(KW)	45
	Max Output(KW)	51
	Starting method	Electric starting
	Cooling method	Closed water cooled
	Governing method	Mechanical
	Intaking method	Natural apirated
	Cylinder numbers	3
	Fuel consumption(g/kw.h)	≤208
	Bore/stroke(mm)	105/120
	Displacement(L)	3.12
	Oil volume(L)	7.25
	Type	Water cooling, in-line, four-stroke, humid cylinder liner,direct injection
	Crankshaft rotation direction	Counterclockwise(face to output end)
ALTERNATOR	Model	184H
	Rated Output(KW)(KVA)	36(45)
	Rated Voltage(V)	400/230V
	Rated Current(A)	64.8
	Frequency(HZ)	50/60
	Power Factor	0.8 lagging
	Phase/Connection	3-phase 4-wire Y-type connection
	Excitation	Harmonic or Brushless Excitation
	Voltage Regulation	Manual/Automatic
Net Weight(kg)		660
Packing Size LWH(cm)		16870150

Model		GF2-36
ENGINE	Engine Model	TD226B-3D
	Rated Output(KW)	45
	Max Output(KW)	51
	Starting method	Electric starting
	Cooling method	Closed water cooled
	Governing method	Mechanical
	Intaking method	Natural apirated
	Cylinder numbers	3
	Fuel consumption(g/kw.h)	≤208
	Bore/stroke(mm)	105/120
	Displacement(L)	3.12
	Oil volume(L)	7.25
	Type	Water cooling, in-line, four-stroke, humid cylinder liner,direct injection
	Crankshaft rotation direction	Counterclockwise(face to output end)
ALTERNATOR	Model	184H
	Rated Output(KW)(KVA)	36(45)
	Rated Voltage(V)	400/230V
	Rated Current(A)	64.8
	Frequency(HZ)	50/60
	Power Factor	0.8 lagging
	Phase/Connection	3-phase 4-wire Y-type connection
	Excitation	Harmonic or Brushless Excitation
	Voltage Regulation	Manual/Automatic
Net Weight(kg)		660
Packing Size LWH(cm)		16870150
