Factory direct-Generating set with good price

Specifications

Generating set
1. Generating set
2. Factory Direct
3. with good price

Generating set

Detailed Product Description



Features:

1) Rated output: 20 - 1000kW / 10kVA - 625kVA

2) Rated voltage: 400 / 230V, 380 / 220, 220 / 120

3) Rated frequency: 50 / 60Hz

4) Power factor: 0.8

Engine: LOVOL or Deutz or Cummins or New Holland China

1)Cooling method: closed water cooling or air force cooled

2)Starting method: electric start

3)Rated speed: 1,500 / 1,800rpm

4) Noise level: 75dB to 80dB 7 meter away

Alternator:

1) Brand: Stamford or Leroysomer or Our WT series

2) Rated output: 8 - 500kW / 10kVA - 625kVA

3) Rated voltage: 400 / 230V

4) Rated Frequency: 50 / 60Hz

5) Power factor: 0.8

6) Phase: 3-phase, 4-wire

7) Connection: Y or other type connection

8) Rated speed: 1,500rpm / 1,800rpm

9) Excitation: harmonic excitation or phase compound or brushless

11) Voltage regulation: automatic

12) 1.0% voltage regulation (max.) in static conditions

13) Protection class: IP 22 or IP23

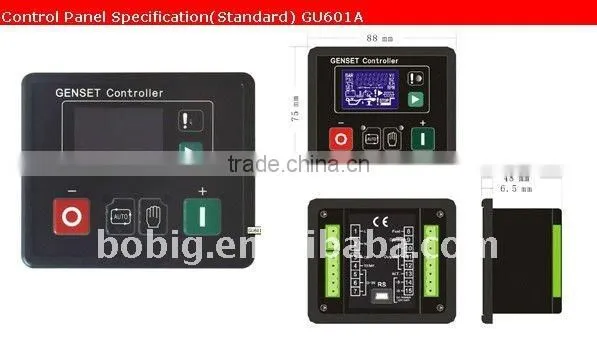

Control panel:

1) The generator control panel is manufactured locally by

2) The panel is provided with:

a) Standard engine instrumentation

b) Voltmeter with selector switch

c) Ammeter with selector switch

d) Frequency meter

e) Current transformers

f) Instrument fuses duly wired and ferruled

g) Mcb of suitable rating with overload and short circuit protection

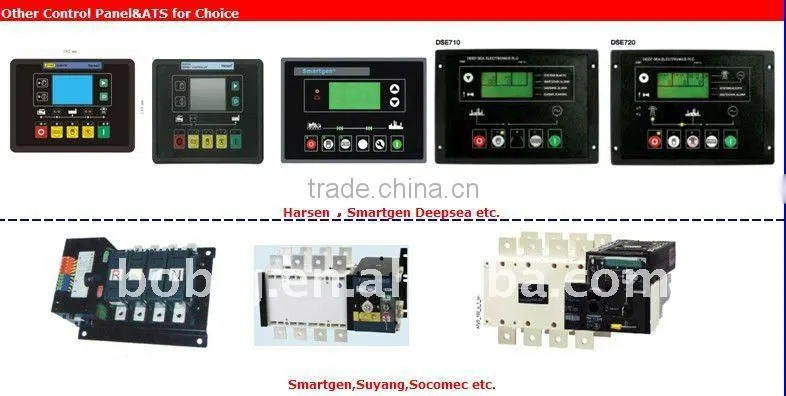

h) With AMF control panel or with ATS (automatic transfer syste)

i) With EPA certification

Packing:

Plywood case
