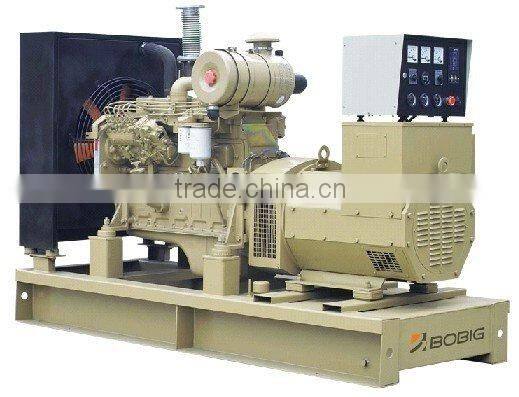

DIESEL GENERATOR China

Specifications

DIESEL GENERATOR China

DIESEL GENERATOR 800Kva POWERD BY weichai, quanchai,laidong ENGINE FUNCTION STABILITY CREDIBILITY

TIGHTLY STRUCTURE,EXCELLENT DESIGN AND CRAFT BATUIFIUL APPEARANCE

 WIDELY USED IN INDUSTRIAL, COMMERCIAL, FAMILY, HOTAL,FACTORY,ECT AUXILIARY POWER

Detailed Product Description

Features:
1) Rated output: 8 - 1000kW / 10kVA - 1250kVA
2) Rated voltage: 400 / 230V, 380 / 220, 220 / 120(According to your special demand)
3) Rated frequency: 50 / 60Hz
4) Power factor: 0.8

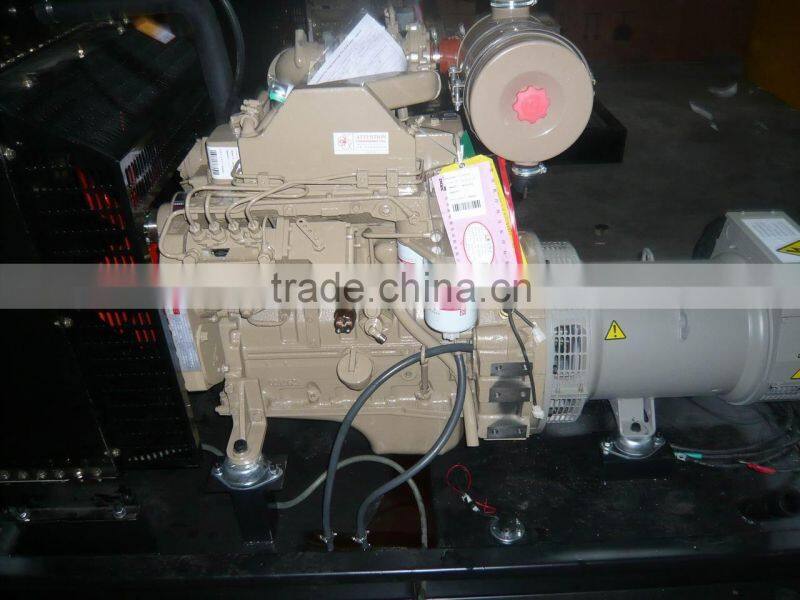

Engine: LOVOL or Deutz or Cummins or New Holland China
1)Cooling method: closed water cooling or air force cooled
2)Starting method: electric start
3)Rated speed: 1,500 / 1,800rpm
4) Noise level: 65dB to 68dB 7 meter away

Alternator:
1) Brand: Stamford or Leroysomer or chinese stamford

2) Rated output: 8 - 500kW / 10kVA - 625kVA
3) Rated voltage: 400 / 230V
4) Rated Frequency: 50 / 60Hz
5) Power factor: 0.8
6) Phase: 3-phase, 4-wire
7) Connection: Y or other type connection
8) Rated speed: 1,500rpm / 1,800rpm
9) Excitation: harmonic excitation or phase compound or brushless
11) Voltage regulation: automatic
12) 1.0% voltage regulation (max.) in static conditions
13) Protection class: IP 22 or IP23

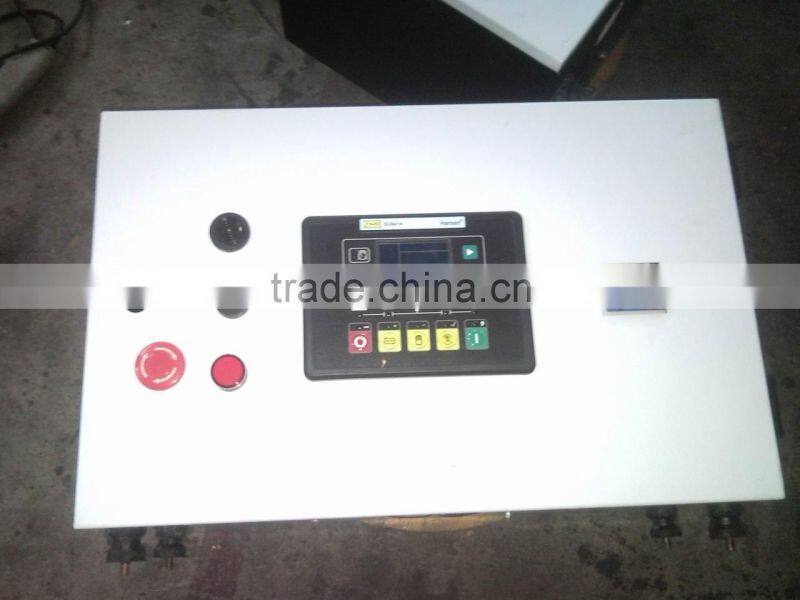

Control panel:
1) The generator control panel is manufactured locally by
2) The panel is provided with:
a) Standard engine instrumentation
b) Voltmeter with selector switch
c) Ammeter with selector switch
d) Frequency meter
e) Current transformers
f) Instrument fuses duly wired and ferruled
g) Mcb of suitable rating with overload and short circuit protection

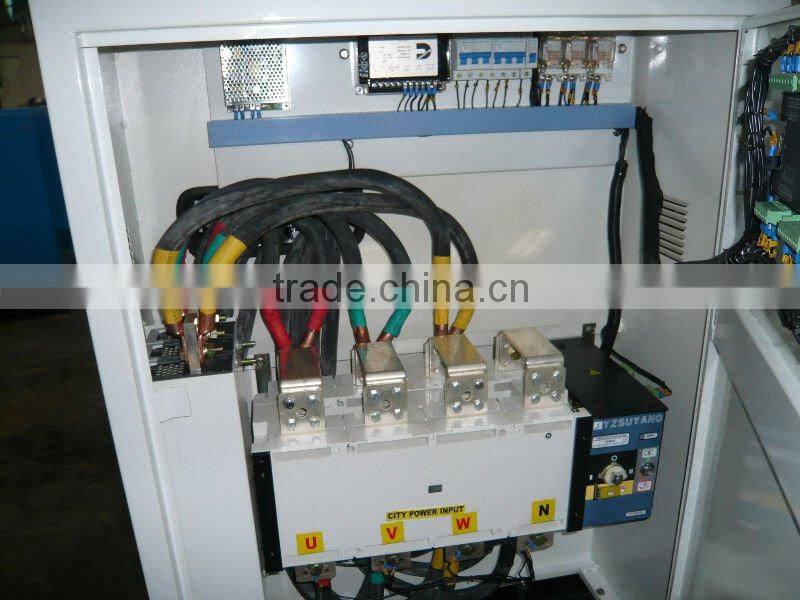

h) With AMF control panel or with ATS (automatic transfer system)
i) With EPA certification

Packing:
Wooden case or plywood case

Guarantee:Water cooled diesel generator set couple with one year warranty when you receive or use it,During the maintenance period,we will provide free spare parts for you to repair it,Over expiration,we will provide paying spare parts for your repair.
