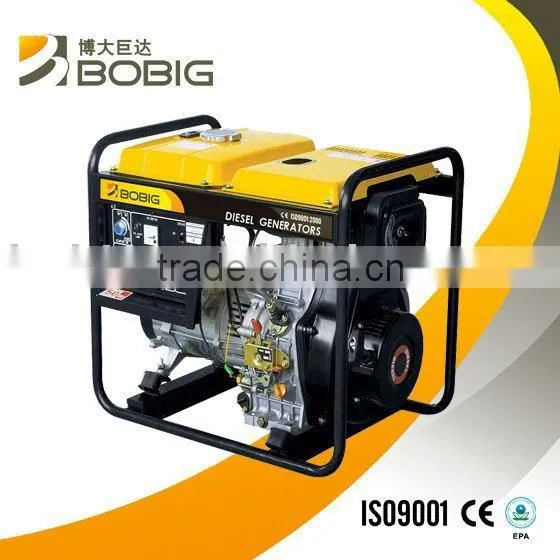

Diesel Generating Set
US$ 290 - 476
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BOBIG
Model Number:
BD2500
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
BOBIG
Model Number
BD2500
Output Type
AC Single Phase
Speed
3000/3600
Frequency
50HZ/60HZ
Rated Power
1.8KW/2.0KW
Rated Voltage
220, 230, 240 110/220,115/20,120/240
Rated Current
3.24AH/3.6AH
Specifications
Diesel Generating Set:a. Air cooled engine
b. AVR automatic voltage
c. Home, leisure, agriculture, commerce
Diesel Generating Set
BD2500 Specification
| AC Frequency | 50HZ | 60HZ |
| AC Output Voltage | 220,230,240 110/220,115/230,120/240 | |
| Rated AC Output | 1.8kw | 2.0kw |
| Max. AC Output | 2.0kw | 2.2kw |
| Power Factor | 1 | |
| DC Output | 12V/8.3A | |
| Engine | 170F | |
| Type | Single-Cylinder, 4-Stroke, Air-Cooled Diesel Engine | |
| Displacement | 219 | |
| Starting System | Electric Starter | |
| Lubrication oil | SAE 10W/30 | |
| Max. output(hp/rpm) | 4.7/3000 | |
| Fuel Tank Capacity | 11.5 | |
| Continuous Work(h) | 14 | |
| Noise Level db(A) | 96 | |
| Dimension(mm) | 630*465*540 | |
| Gross Weight(kg) | 67 | |
| 20ft Container Qty | 180 | |
| 40ft Container Qty | 372 | |
The above specificaton is basic structure, optional choices are as follows:
A. Electric starting system
B. Three phase set
C. EPA set and two voltage panel
D. European sockets
E. Smart Panel
F. ATS
We are pleased to quote under your detailed requirements
