Light Cnc Plasma and Flame Cutting Machine for Metal Plates
US$ 8,500 - 15,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
Zhangzhou Xinsanhu
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Quality Cnc Duct Plasma Cutting MachineUS$ 12,000 - 25,000MOQ: 1 Set -
Rectangle Cnc Cutting Machine, Plasma Cutter for Metal SheetsUS$ 8,500 - 13,500MOQ: 1 Set
-
Cnc Plasma Cutter, Mini Portable Cut MachineUS$ 2,100 - 2,580MOQ: 1 Set
-
Zhangzhou Cnc Gas Cutting Machine for Ship BuildingUS$ 15,000 - 30,000MOQ: 1 Set
-
Cnc Plasma Cutting Machine Cut 50mmUS$ 16,800 - 28,000MOQ: 1 Set
Condition
New
Place of Origin
Fujian, China
Brand Name
Zhangzhou Xinsanhu
Model Number
CNCTG series
Voltage
220V
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas

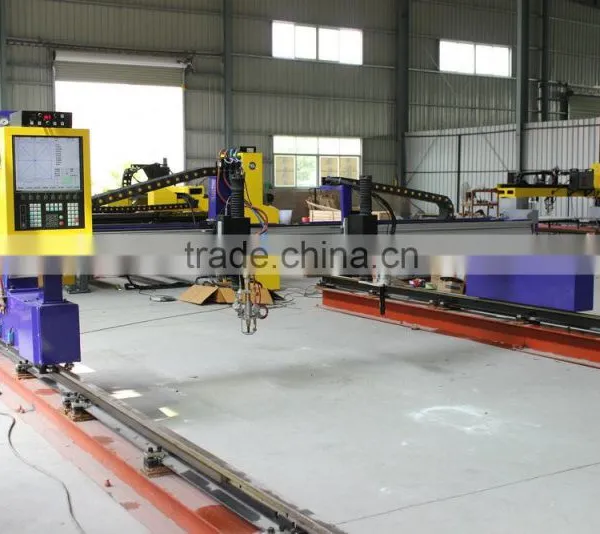

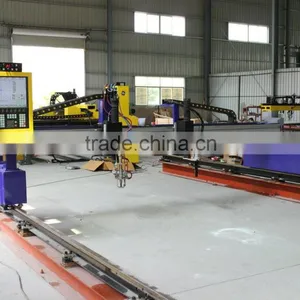

Light gantry cnc cutting machine can be equipped with two cutting torches to cut the same shape at the same time, they can be both flame or both plasma or one flame one plasma, you can choose one mode you want when cutting different thickness and material plates, largely save the working time and improve the effeciency.
The main structure and features of light gantry cnc cutting machine
- The beam adopts rectangle steel tube when equipped with two or more moving body and cutting torches, uses aluminum alloy tube when equipped with one cutting torch.
- The machine is equipped with gear rack, stepper motor and planetary reducer on both horizontal and vertical direction, the horizontal move adopts high precision drive rail and steel belt, can transmit stably on the same or specular direction between master-slave cutting torches.
- Crossbeam drive adopts double axis guide rail , to ensure the moving accuracy and cutting quality.
- Automatic memory function when power off or emergency stop.
- Auto alarm function when faced with a mistake or arc breaking.
- Multilanguage(English, Chinese, French, Germany, Portuguess, Spanish ect) switch on the interface.
- 10.4" START or 7" SJTU-SK 2100 LCD touch screen, convenient design, easy to operate.
The configuration and parameters of light gantry cnc cutting machine
| Configuration | |||||
| Structure | rectangle steel structure | ||||
| Drive motor | Precise stepper motor | ||||
| Reducer | Golden Sky | ||||
| Crossbeam guide rail | Double axis guide rail | ||||
| Guide rail | 24kg level guide rail | ||||
| CNC system | SJTU-SK or START | ||||
| Nesting software | FASTCAM | ||||
| Automatic height controller | HYD arc voltage THC | ||||
| Cutting material | mild steel, stainless steel, aluminum etc | ||||
| Specification | |||||
| Voltage | 220V | ||||
| Working temperature | - 10°C -45°C | ||||
| Humidity | <95%, no condensation | ||||
| Crossbeam width | ≥200mm | ||||
| Cutting thickness | flame: 5 to 150mm, plasma: 0.5 to 50mm | ||||
| Cutting speed | 50 to 8000 mm/min | ||||
| Travel speed | 1 to 12000 mm/min | ||||
| Cutting width | 0.8m less than track width | ||||
| Cutting length | 2m less than track length | ||||
| Torch lifting height | 200mm | ||||
| Cutting material | mild steel, stainless steel, aluminum etc | ||||
| Operation language | Multilanguage | ||||
Plasma power supply optional, we have ordinary type and high precision type Hypertherm, Kjellberg and Thermadyne for your choice.
Our services
- 12 months warranty
- Any after sale questions will be replied in 24 hours
- Free installing and operating train
- Offer testing certification before delivering
- Installing and cutting video can be provided
- Engineers are available to service aboard
