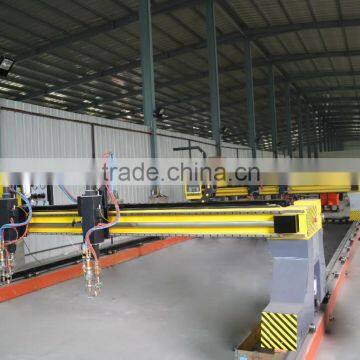

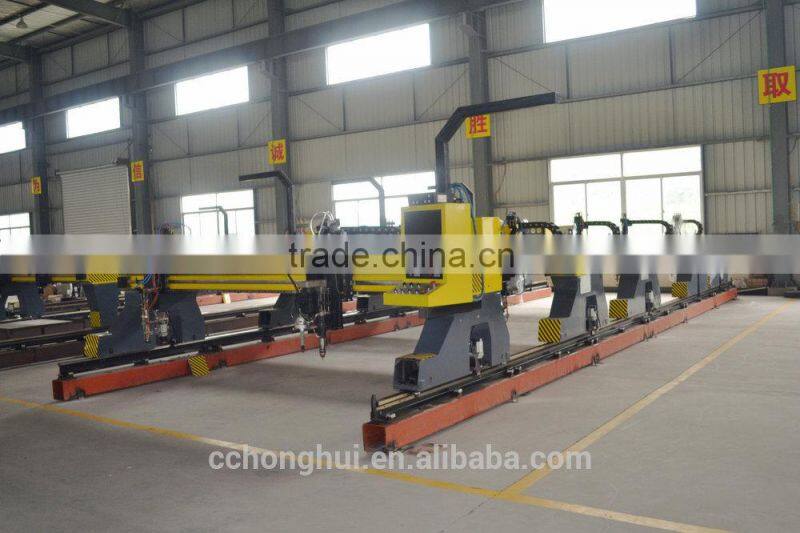

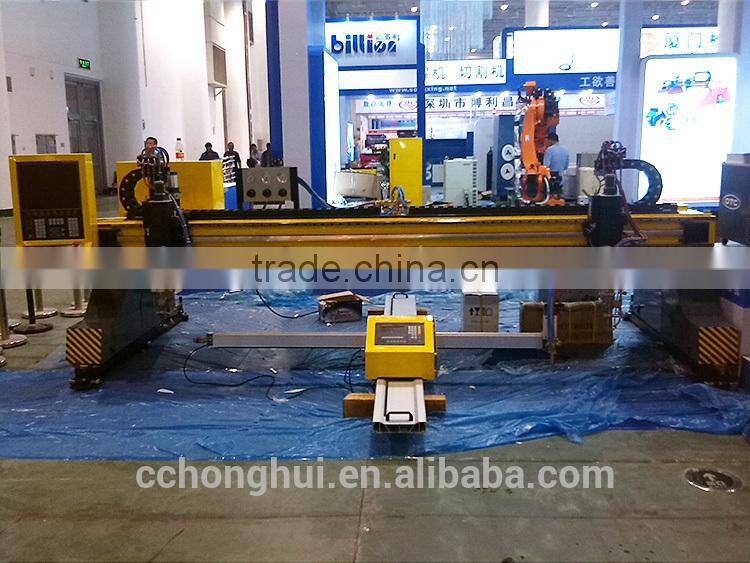

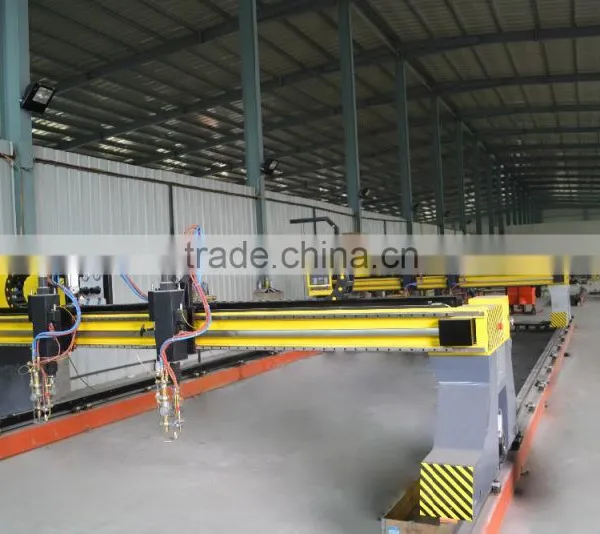

4m*12m Heavy Gantry Cnc Cutting Machine Automatic Cut Machine Excellent Performance
US$ 16,500 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
Xinsanhu
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cut Machine Numeric Control Dragon TypeUS$ 15,000 - 25,000MOQ: 1 Set -
Cnc Cut Machine Numeric Control HPR Plasma Supply Dragon TypeUS$ 15,000 - 25,000MOQ: 1 Set
-
Precise Stable Cnc Cutting Machine Gantry Cut Machine Heavy DutyUS$ 12,000 - 25,000MOQ: 1 Set
-
Cnc Cut Machine Table Type With Underwater Cutting MAX PRO 200US$ 16,800 - 28,000MOQ: 1 Set
-
Mini Cnc Cut Machine Cheap Price for Steel Fabrication Aluminum Alloy Guide RailUS$ 2,550 - 3,250MOQ: 1 Set
Condition
New
Place of Origin
Fujian, China
Brand Name
Xinsanhu
Model Number
CNCTG series
Voltage
220V
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
The main structure and features of heavy gantry cnc cutting machine
- The beam adopts enhanced wide body box structure and endframe adopts low center of gravity, make the equipment durable and symmetric. All the welding points are stress released to ensure the whole rigidity strength and dynamic balance.
- The machine is equipped with gear rack, servo motor and planetary reducer on both horizontal and vertical direction, the horizontal move adopts high precision drive rail and steel belt, can transmit stably on the same or specular direction between master-slave cutting torches.
- Crossbeam drive adopts PMI linear guide rail , to ensure the moving accuracy and cutting quality.
- Well performed Thermadyne, Hypertherm and Kjellberg plasma power supply optional
- Automatic memory function when power off or emergency stop.
- Auto alarm function when faced with a mistake or arc breaking.
- Multilanguage(English, Chinese, French, Germany, Portuguess, Spanish ect) switch on the interface.
- 17" LCD touch screen, convenient design, easy to operate.
The configuration and parameters of cnc plasma cutter
| Configuration | |||||
| Structure | Wide body intensive welding box structure | ||||
| Drive motor | Panasonic servo motor | ||||
| Reducer | Shimpo reducer | ||||
| Crossbeam guide rail | PMI linear guide rail | ||||
| Guide rail | 38kg heavy guide rail | ||||
| CNC system | SJTU-SK (Hypertherm Micro EDGE, EDGE PRO optional) | ||||
| Nesting software | FASTCAM | ||||
| Automatic height controller | HYD arc voltage THC | ||||
| Plasma power supply | Thermadyne, Hypertherm and Kjellberg | ||||
| Specification | |||||
| Voltage | 220V | ||||
| Working temperature | - 10°C -45°C | ||||
| Humidity | <95%, no condensation | ||||
| Crossbeam width | ≥500mm | ||||
| Cutting thickness | 0.5 to 50mm | ||||
| Cutting speed | 50 to 8000 mm/min | ||||
| Travel speed | 1 to 12000 mm/min | ||||
| Cutting width | 3.2 meters | ||||
| Cutting length | 10 meters | ||||
| Torch lifting height | 200mm | ||||
| Cutting material | mild steel, stainless steel, aluminium etc | ||||
| Operation language | Multilanguage | ||||
Main parts of cnc cutting machine

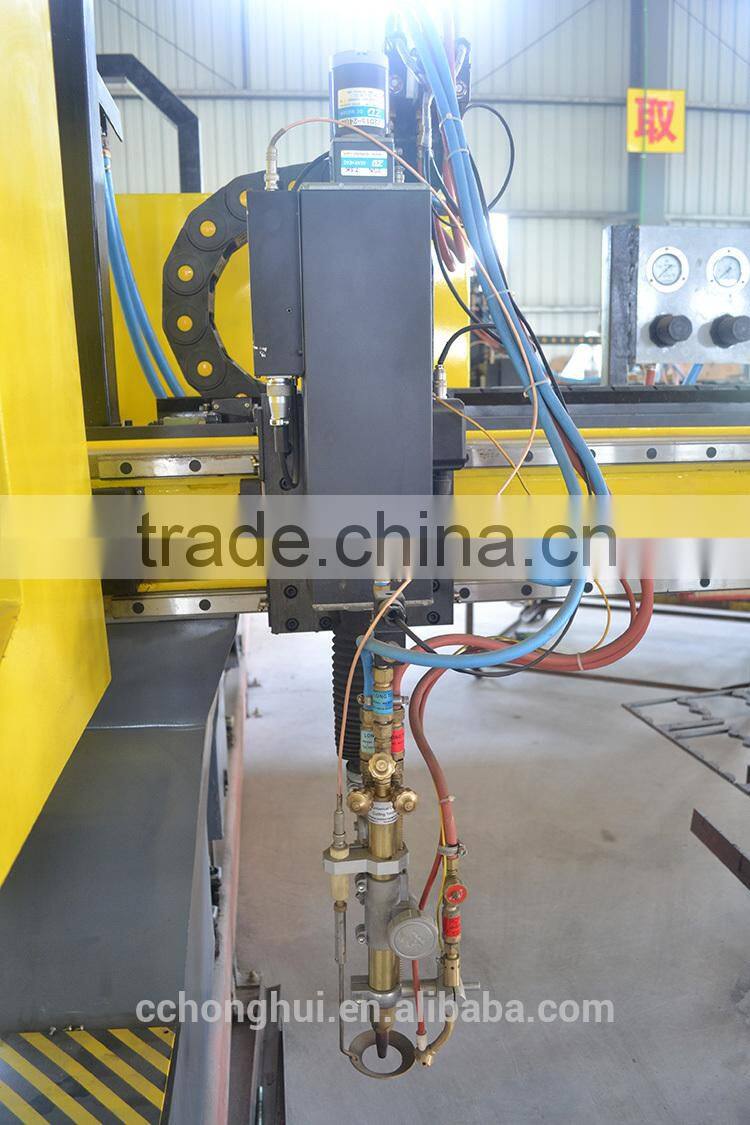

Flame cutting torch, auto ignition, high speed, cutting thickness from 5mm to 200mm, driven by Panasonic servo motor, oxygen and propane as its fuel gas

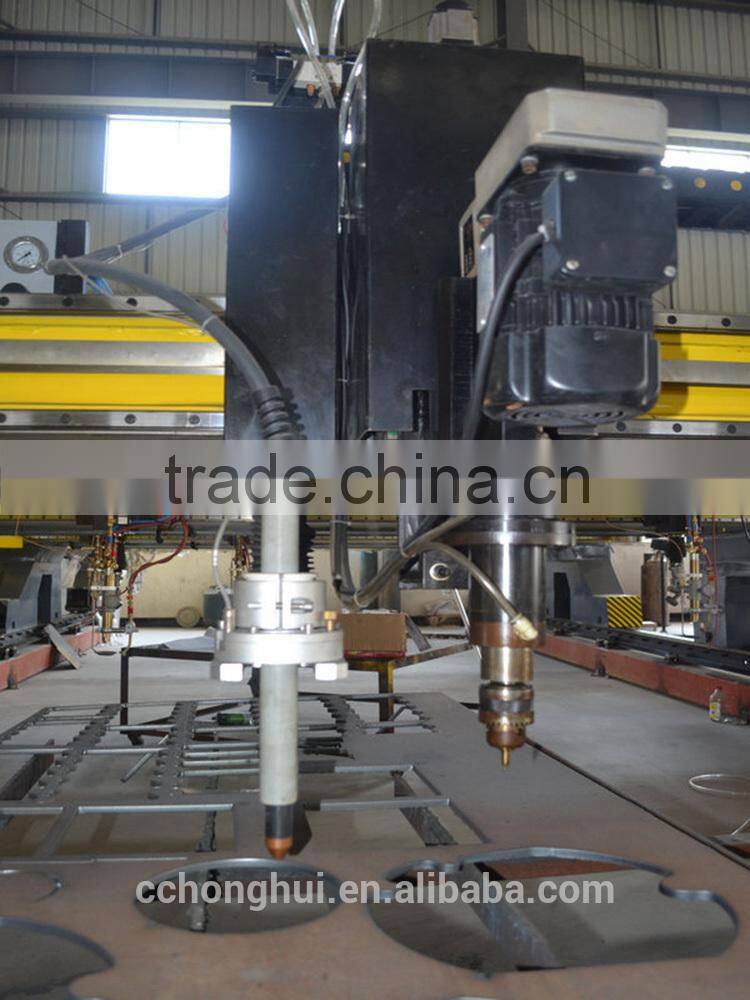

Plasma cutting torch, can choose drilling function, driven by Panasonic servo motor, cutting speed triple as flame cutting, good performance on cutting stainless steel, aluminum and mild steel, thickness from 0.5mm to 50mm
Our services
- 12 months warranty
- Any after sale questions will be replied in 24 hours
- Free installing and operating train
- Offer testing certification before delivering
- Size, logo, configuration, color can be customized
- Installing and cutting video can be provided
- Engineers are available to service aboard
Company profile
With over 20000 square meters area, Zhangzhou Xinsanhu Intelligent Cutting Machine Co.,Ltd has been specializing in various cnc cutting machines for many years.
