The GSV series SDI/ASI standard digital video optical equipment is made up of Greatway GSVT transmitter and GSVR receiver, transmitting 143Mb/s, 177Mb/s, 270Mb/s, 360Mb/s or 540Mb/s data rate SD-SDI digital video signal or ASI digital video signal. GSVT is designed with multi data rate cable equalizer on the electronic signal input, while GSVR has built-in distribution amplifier for 2 SDI outputs (one output for ASI signal).
The built-in jitter recovery circuit enables GSV series product input/output cable distance up to 250m. GSV series product has multi version for 1/2/3/4 SDI/ASI digital videos over one fiber. The maximum fiber distance can be 120Km.

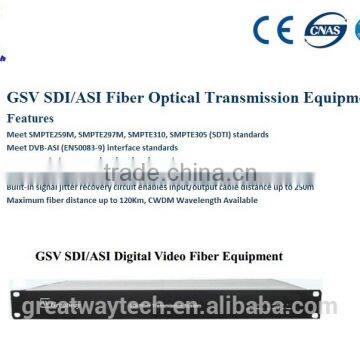

Features:
Meet SMPTE259M, SMPTE297M, SMPTE310, SMPTE305 (SDTI) standards
Meet DVB-ASI (EN50083-9) interface standards
Auto Negotiating SDI 143/177/270/360/540 Mbps
Built-in Cable Equalizer on the signal input
Built-in signal jitter recovery circuit enables input/output cable distance up to 250m
Maximum fiber distance up to 120Km
Ordering Information:
GSV-A-BC-D
A: SDI/ASI video channel number 1 or 2 or 3 or 4
BC: Fiber distance 20-20Km, 40-40Km, 60-60Km, 80-80Km, 100-100Km+
D: Optional CWDM wavelengths
Usually the buyer appoints a forwarder and we follow the shipping instructions.
According to client's order quantity Our service:
1.Good Reply :Your inquiry related to our products or price will be replied within 24 hours.
2.OEM & ODM:Your any idea on telecom we can help you to design and put it into products.
3.Warranty: 1-years warranty
4.Transportation : FedEx, UPS, DHL, TNT etc
Production Line :
What does Greatway offer?
We offer the whole range of cost-effective CATV, Ethernet over fiber products with excellent quality.
You can find them just clicking the or http://greatwaytech.en.china.cn
What are your working hours?
Monday-Friday, 8:30-17:45 (Beijing time, GMT+08:00).
How do I send an inquiry?
The most efficient way is to forward your inquiry to our e-mail address in "contact us" page, or contact us on TradeManager,Skype
Please, input your name, country, e-mail, phone, product specifications and desired quantity. A designated manager will get back to you within 24 hours.
Can I get a lower price?
OK, that's no porblem. I know the price is the most important part to the customer.
We could discuss it based on the order quantity. As the manufacturer, we also have the absolute confidence to offer the best price to you.
What's your company advantage?
We have our own R&D, production, sell and the rich experience technical support center.
We specialize in offering the whole CATV FTTH network solution and all equipments needed in this solution.
Could you give us help on the EOC/CATV solution?
OK, it is our pleasure to help you. We not only provide equipments needed in CATV FTTH solution,
But also offer the technical support about it if the customer need it. And you only need tell us the details of your network application.
For Trade Terms,such as payment and leadtime.
Payment Terms:T/T 100% in advance,Paypal and Western Union for the sample order
Price Terms:EXW Shenzhen
Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
Leadtime: Sample order,3-5work days; Bulk order 15-20work days(after your payment )
What is your product warranty policy?
All Greatway products carry a 12-month warranty.
What shall I do if I encounter a problem with products bought from you?
Please, don’t open or try to fix the problem yourself.
Contact Greatway immediately and submit inspection report or problem description. We will do our best to help you solve the problem.
Can I become an exclusive distributor of Greatway products in my area?
Yes, it is possible if we don’t already have a representative in your country (region).
The best start is to prove your good intentions with several regular orders over a period of time.
The beneficiary will always be “Greatway Technology Co., Ltd.”.
