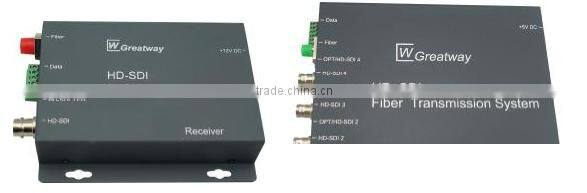

GHB Modular HD-SDI Fiber Link
GHB modular fiber link includes GHBT optical transmitter module and GHBR optical receiver module for 1080i HD-SDI signal or 1080P HD-SDI signal. The HD-SDI channel number over GHB fiber link can be up to 4 over one SM fiber. The GHBT transmitter can be installed next to HD camera while GHBR optical receiver can be installed next to the HD-SDI processing equipment via coaxial digital cable. HD-SDI signal can be 1920x1080 30P or 60P. GHB supports the reverse RS-485 PTZ control signal transmission to each connected HD camera over the same SM fiber. GHBT optical transmitter can work with GHBR receiver or GHCR receiver (multi HD-SDI optical receivers in 19” 1RU chassis)
Features:
l Auto Negotiate 19.4/143/177/270/360/540/1483.5/1485Mbps and 2970Mbps
l Complied with SMPTE424M, SMPTE292M, SMPTE310M, SMPTE259M and SMPTE344M
l Complied with DVB-ASI (EN50083-9)
l Cable Input Equalizer on the transmitter and clock recovery on the receiver
l Built-in Diplexer module for single fiber reverse data transmission
l Pathological Pattern Available upon request
Specifications:
HD-SDI Input |
|
Input Channel |
1 or 2 or 4 |
Input Level |
>380 mVP-P |
Cable Input Equalization |
>250m (270Mbps)(BELDEN8281) >100m(1485Mbps)(BELDEN8281) >30m(3Gbps)(BELDEN8281) |
Input Return Loss |
>16dB (270Mbps), >12dB (1.485Gbps), >10dB (2.97Gbps) |
Input Resistance: 75Ω |
Input Connector: BNC Female |
HD-SDI Output |
|
Output Channel Number |
1 or 2 or 4 |
Output Level |
800mVP-P ±10% |
Rise/Down Time |
<0.8ns (270Mbps), <150ps (1485Mbps), <180ps (3Gbps) |
Jitter (at Pathological Pattern) |
<0.1UI (270Mbps), <0.15UI (1485Mbps), <0.18UI (3Gbps) |
Output Resistance: 75Ω |
Output Connector: BNC Female |
Reverse Digital Data |
|
RS485 |
0 to 400Kbps bit error rate less than 10-9 |
Fiber Optic Parameter |
|
Optical Wavelength |
1310nm, 1550nm or CWDM wavelength |
Optical Output Power |
-15dBm~+2dBm |
Optical Receiving Sensitivity |
-24dBm |
Optical Return Loss |
50dB |
Fiber Optic Connector |
FC/UPC or SC/UPC or FC/APC or SC/APC |
Power Supply |
DC 12V, <4W |
Dimension and Weight |
Single HD-SDI: 130mm×85mm×25mm 0.4Kg Dual HD-SDI: 180mm×172mm×32mm 0.6Kg Quad HD-SDI: 180mm×172mm×32mm 1Kg |
Working Temperature |
-25°C to +55°C |
Humidity |
5~95%RH, non-condensing |

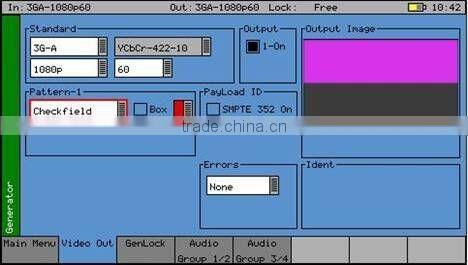

Test Data of GHB over 20Km SM fiber

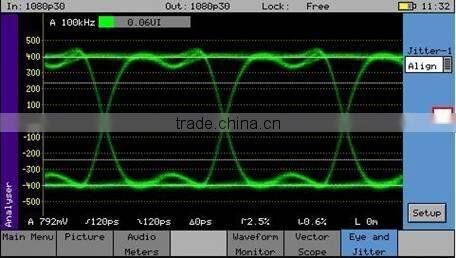

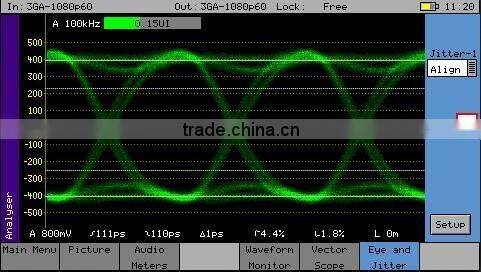

Left: 1080P 30P HD-SDI signal over 20Km SM fiber Eye Diagram
Left: 1080P 60P HD-SDI signal over 20Km SM fiber Eye Diagram
Left: 1080P 60P HD-SDI signal at Pathological Pattern
Left: 1080P 60P HD-SDI signal at Pathological Pattern over 20Km fiber Eye Diagram
Ordering Information: GHBT-W-X-Y-Z-S Modular HD-SDI Optical Transmitter
GHBR-W-Y-Z-S Modular HD-SDI Optical Receiver
W(HD-SDI Channel): 1 or 2 or 4
X(Fiber Distance): 2-2Km, 10-10Km, 20-20Km, 40-40Km,…
Y(Reverse Data): None-No Data, D-RS485
Z(Fiber Connector): FU-FC/UPC, SU-SC/UPC, FA-FC/APC, SA-SC/APC
S(Special Requirement): None-1080i 1.485Gbps; P-1080P 2.97Gbps,
PB-1080P HD-SDI supporting pathological pattern
