GWR1000L-W FTTB Optical Receiver with WDM

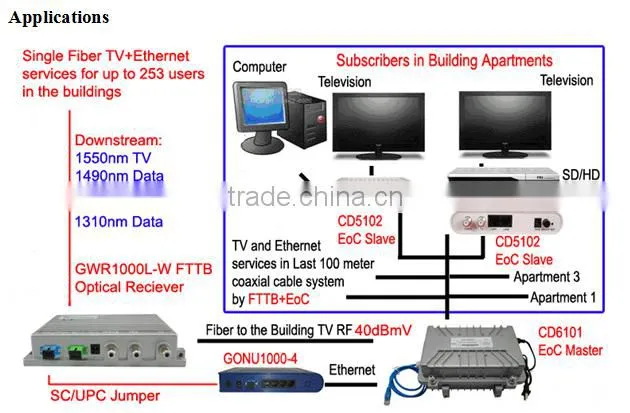

GWR1000L-W is a FTTB CATV optical receiver with 1310nm/1490nm WDM, receiving 1550nm CATV RF optical signal from Passive Optical Network (PON) while passing 1310nm and 1490nm digital signals to adjacent ONU device. GWR1000L-W has dual RF outputs, each at 40dBmV with RF AGC. Together with GONU1000and CD6100 EoC system, GWR1000L-W provides one fiber to the building solution with both TV and Ethernet services for the whole building. GWR1000L-W enables Greatway ONU or any third party ONU to serve subscribers with dual 40dBmV RF outputs capability.
Features
- Compact indoor FTTB design
- Working at 1550nm optical wavelength
- 50~1000MHz RF bandwidth
- High performance and low power consumption GaAs Technology
- RF AGC maintaining a stable RF output
- Dual RF outputs
-
Bypass 1310nm/1490nm wavelengths to SC/UPC port
Specifications
Item
Parameter
Notes
Fiber Optics
1
Receiving Power
-8 ~ +2 dBm
2
Recommended Power
-6 ~ -+1 dBm
AGC Effective Range
3
Optical Return Loss
>50 dB
4
Optical Wavelength
1550nm ± 7.5nm
5
Optical Connector
SC/APC
RF
6
Frequency Range
50~1000 MHz
7
Flatness
±0.75 dB
8
Return Loss
³16 dB
9
Output Level
Each ³40dBmV
Dual RF ports
10
Equalization
6dB
Factory default setting
11
C/N(dB)
³46
Analog TV, 10Km SM fiber, 1550nm -5dBm or higher input
12
C/CSO(dB)
³60
13
C/CTB(dB)
³60
14
Connector
American F
15
Resistance
75W
Output to ONU
16
Loss at 1310nm/1490nm
<0.8dB
17
Isolation (Com-Pass at 1310nm)
Minimum 34dB
18
Isolation (Com-Pass at 1490nm)
Minimum 34dB
19
Isolation (Reflect-Pass at 1310nm)
Minimum 40dB
20
Isolation (Com-Reflect at 1550nm)
Minimum 20dB
21
Output Connector
SC/UPC
22
Optical Return Loss
Minimum 40dB
Environment
23
Power Consumption
£5W
24
Power Supply
5V 2A DC Power Adaptor
CCC or UL certified.
25
Humidity
5~ 95%, non-condensing
26
Working Temperature
0~+50°C
27
Dimension
180×125×35 (mm)
28
Weight
1Kg
Ordering Information
GWR1000L-W FTTB CATV Optical Receiver with WDM
