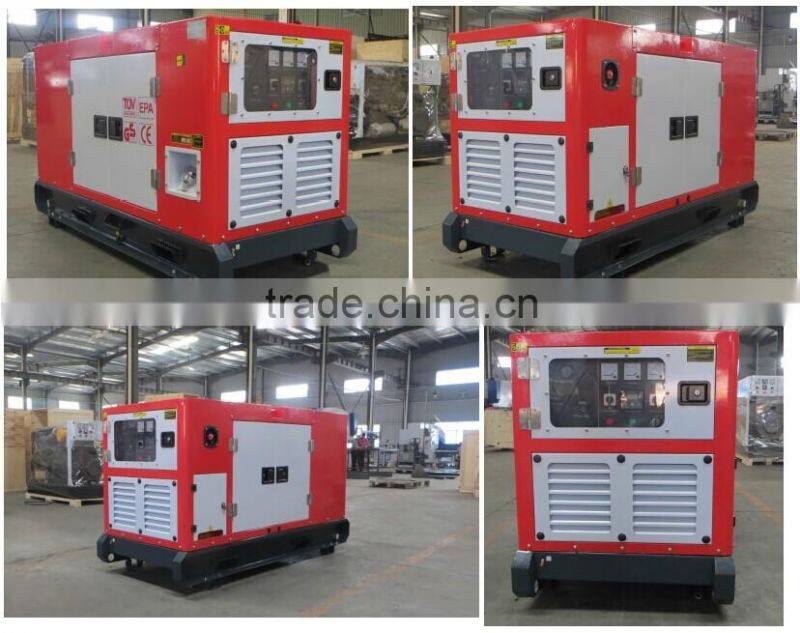

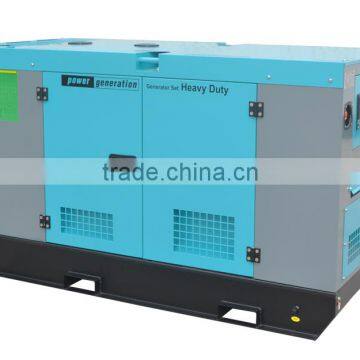

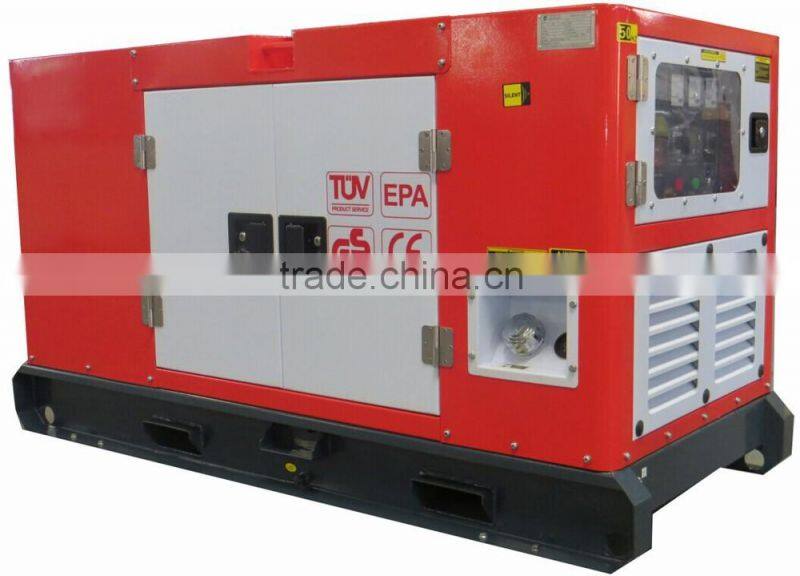

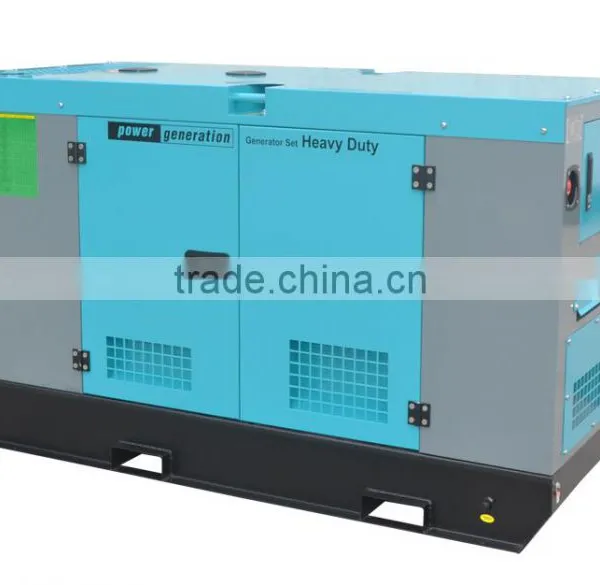

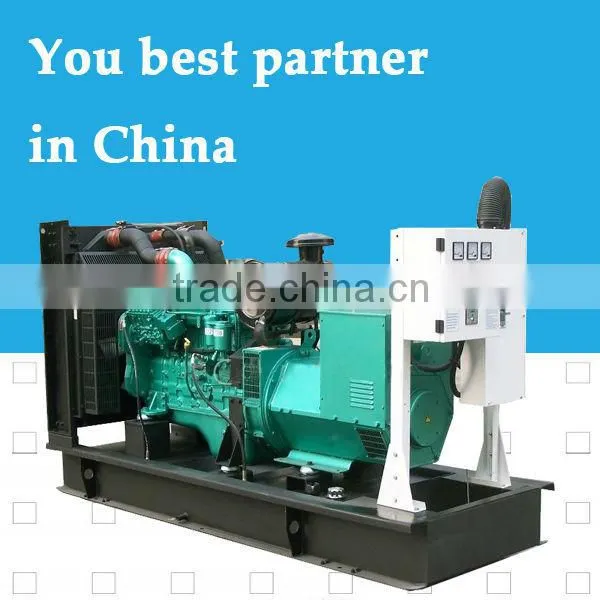

Groupe electrogene Deutz 30kva 50kva 80kva 100kva 120kva 200kva (OEM Manufacturer)
Generator Model ..................................Deutz genreator series
Frequency/Speed..................................50Hz/1500rpm, 60Hz/1800rpm
Voltage................................................110/220,220/380,230/400
240/415, 254/440V
Rated Power..........................................25Kva-562Kva
Standby Power......................................27.5 Kva-600 Kva
Phase...................................................3 Phase or 1 Phase
Fuel Tank Capacity.................................8-12 hours fuel tank
Sound Level..........................................60dB to 85dB at 7 meter
Alternator.............................................HWN alternator, Stamford, Leroy Somer,
Marathron, Engga or others.
| Deutz Generator (Water cooled) | ||||
| Model | Rated Power | Standby Power | Engine model | Alternator |
| Open/Sielnt | ||||
| HDZ25/s | 20kw/25kva | 22kw/27.5kva | D226B-3D/30kw | HWN-184F |
| HDZ30/s | 24kw/30kva | 26.4kw/33kva | D226B-3D/30kw | HWN-184G |
| HDZ37.5/s | 30kw/37.5kva | 33kw/41.25kva | TD226B-3D/45kw | HWN-184H |
| HDZ50/s | 40kw/50kva | 44kw/55kva | TD226B-3D/45kw | HWN-224D |
| HDZ60/s | 48kw/60kva | 53kw/66kva | WP4D66E200/60kw | HWN-224E |
| HDZ90/S | 68kw/85kva | 75kw/95kva | WP4D100E200/90kw | HWN-224G |
| HDZ100/s | 80kw/100kva | 88kw/110kva | WP4D100E200/90kw | HWN-274C |
| HDZ120/s | 96kw/120kva | 105kw/132kva | WP6D132E200/132kw | HWN-274D |
| HDZ140/s | 112kw/140kva | 123kw/154kva | WP6D132E200/132kw | HWN-274E |
| HDZ150/s | 120kw/150kva | 128kw/160kva | WP6D152ZE200/152kw | HWN-274F |
| HDZ200/s | 160kw/200kva | 176kw/220kva | BF6M1015/231kw | HWN-274J |
| HDZ250/s | 200kw/250kva | 220kw/275kva | BF6M1015/231kw | HWN-274K |
| HDZ275/s | 220kw/275kva | 240kw/300kva | BF6M1015C1/250kw | HWN-314D |
| HDZ315/s | 250kw/315kva | 275kw/345kva | BF6M1015C2/285kw | HWN-314ES |
| HDZ350/s | 280kw/350kva | 300kw/375kva | BF6M1015C3/314kw | HWN-314E |
| HDZ375/s | 300kw/375kva | 330kw/412kva | BF6M1015C4/345kw | HWN-314FS |
| HDZ400/s | 320kw/400kva | 350kw/438kva | BF6M1015CP/365kw | HWN-314F |
| HDZ412/s | 330kw/412kva | 360kw/450kva | BF8M1015C1/380kw | HWN-354C |
| HDZ500/s | 400kw/500kva | 440kw/550kva | BF8M1015C2/459kw | HWN-354D |
| HDZ562/s | 450kw/562kva | 480kw/600kva | BF8M1015CP/490kw | HWN-354E |
Notice: we also have Air-cooled Deutz generator, if you want to see more informations,
please kindly enter our website to see it,thanks.

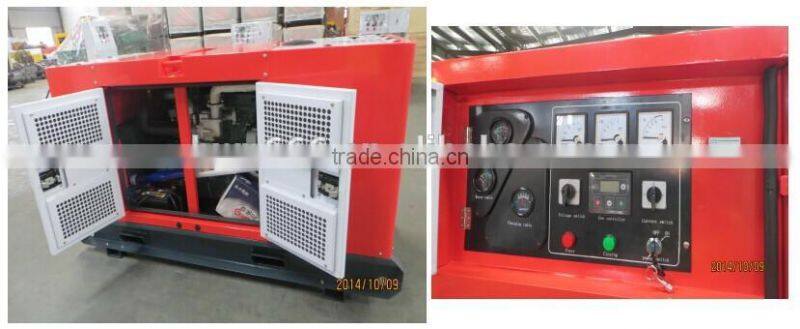

Control Panel:
The G601A is an auto control and protection module of generator.
The control modes of manual or auto are selectable by buttons on
panel. Manual starts or stops Genset under manual mode by button on
panel. Auto starts or stops Genset under auto Mode by remote switch
input signal. The modules is adopted LCD, which displays running status
and operating parameters of generator.
a. Generator Indicator 1. Stop/Reset/Value Decend
B. Voltage Change-Over Switch 2. Auto button/LED
c, Voltge Meter 3. Manual Start Button/LED
d. Engine Control Moduel 4. Start Button
e. Current Meter 5. Enter into Submenu/Menu
f. Current Change-Over Switch 6. Failure LED
g. Key Switch
Control Panel (AMF for option)
There are many international brand generator controller for our cusomer 's choice,
such as Smartgen, Deep sea, ComAp, Harson and so on.
ATS (Automatic transfer switch for option)
Upon detection of a mains(utility) failure the module automatically starts the
generator set, once the mails (utility) power has been restored it instructs the
generator set to stop
Standard parts:
| Starting Battery | Battery Charger | Battery Wire | Flexible Pipe |
| Cooling Radiator | Float Battery Charger | Control System | Base Frame |
| Flang | Wire diagram | Manual Book |
Option Accessories
| ATS | External Fuel Tank | Silent Canopy |
| Synchronization Panel | Automatic Fuel Tank | Weatherproof Canopy |
| ABB Breaker | Oil Drain Pump | Mobile trial |
| PMG | Water Preheater |
| Aytu-condensation heater | Lub Oil Preheater |
| Paralles droop | Spare parts |

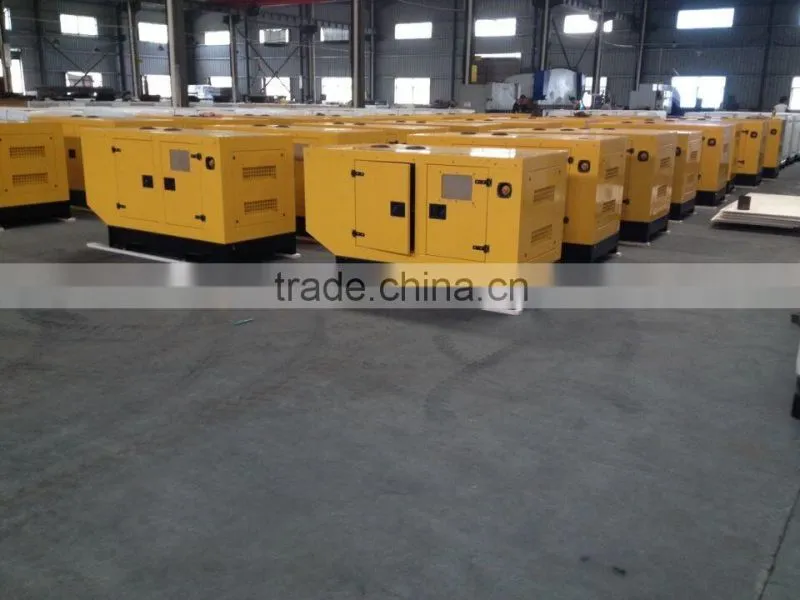

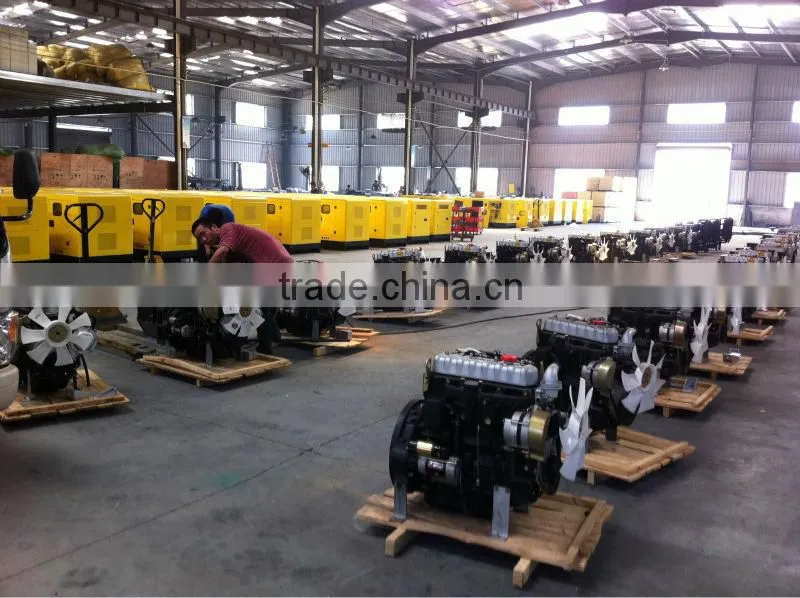

Workshop Show:
Loading Show:

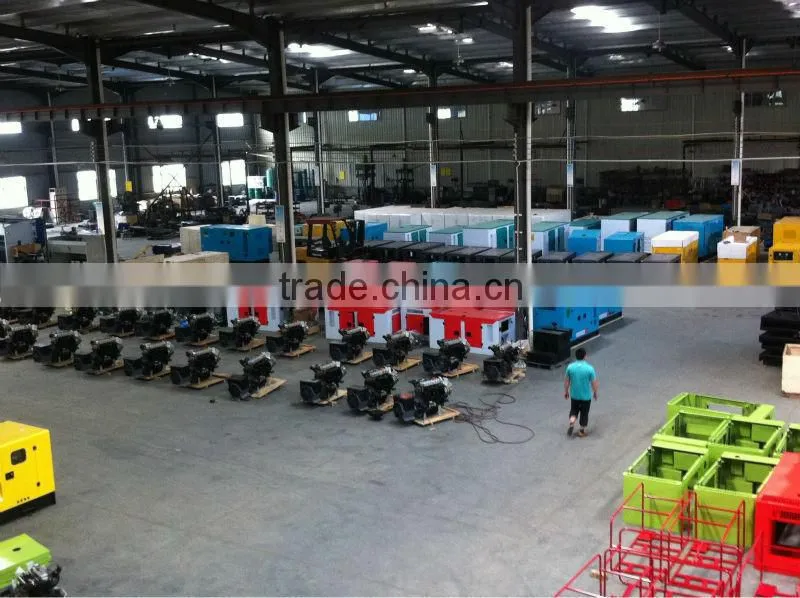

Factory Show:
Certification Show:
