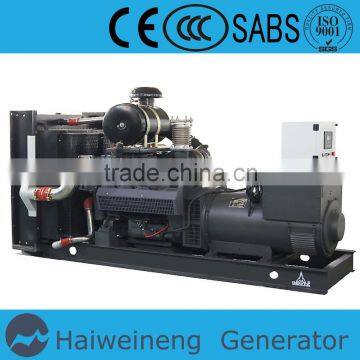

10kva diesel generator price UKPerkins engine power

Control Panel:

The G601A is an aoto control and protection module of generator.

The control modes of manual or auto are selectable by buttons on

panel. Manual starts or stops Genset under manual mode by button on

panel. Auto starts or stops Genset under auto Mode by remote switch

input signal. The modules is adopted LCD, which displays running status

and operating parameters of generator.

a. Generator Indicator                                          1. Stop/Reset/Value Decend

B. Voltage Change-Over Switch                         2. Auto button/LED

c, Voltge Meter                                                       3. Manual Start Button/LED

d. Engine Control Moduel                                     4. Start Button

e. Current Meter                                                     5. Enter into Submenu/Menu

f. Current Change-Over Switch                          6. Failure LED

g. Key Switch

Generator Protection:

&Generator Warning:

1. Fail to charge          2.Battery Low/High voltage       3.Low oil pressure

4. High Temperature   5. High/Low voltage    6.Over speed/ Under speed

7. Auxiliary Warning

When warns occure, the status indicator light flash. but failure will not be

locked and the unit will not shut down, once fail removed warning indicator

auto turn off.

& Generator Shutdown Alarm:

1. Fail to start              2. Fail to stop      3.Emergency stop

4. Low oil pressure      3. High temperature      4. Over speed

5. Auxiliary Failure

Shutdown failures immediately lock system and stop generator, it only can

operate controller agian after removing failures and press rest button to unlock.

 Control Panel (AMF for option)

There are many international brand generator controller for our cusomer 's choice,

such as  Smartgen, Deep sea, Compny, Harson and so on.

ATS (Automatic transfer switch for option)

Upon detection of a mains(utility) failure the module automatically starts the

generator set, once the mails (utility) power has been restored it instructs the

generator set to stop

Mobile for option

Two wheels:                                        Four wheels:

Standard parts:

Option Accessories

Factory Show
