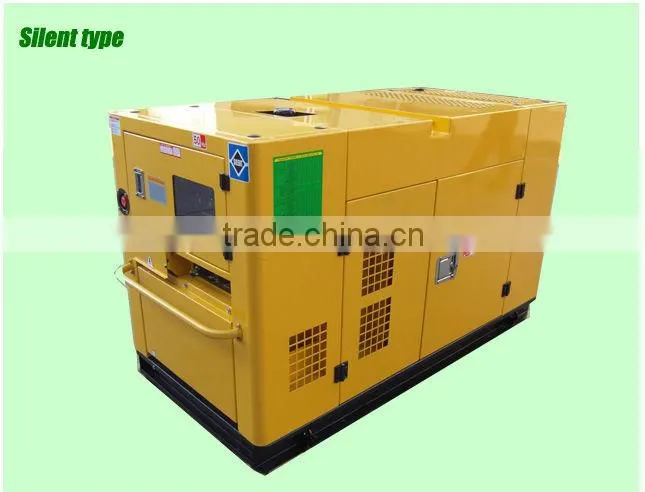

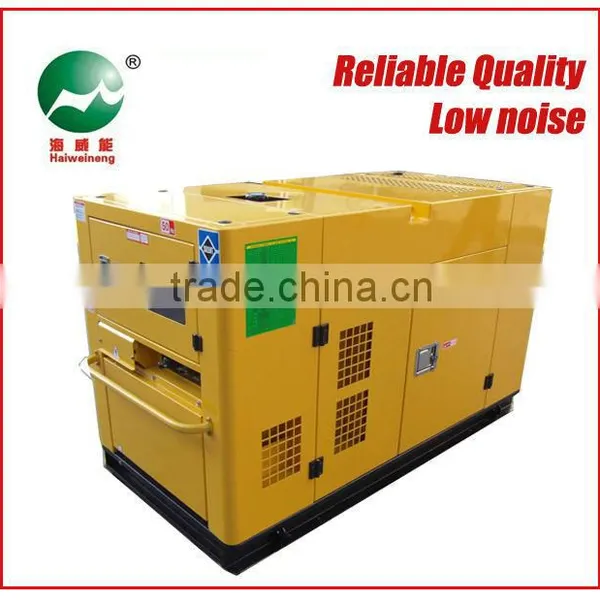

50Kva Ricardo Generator Powered by Ricardo R4105ZD

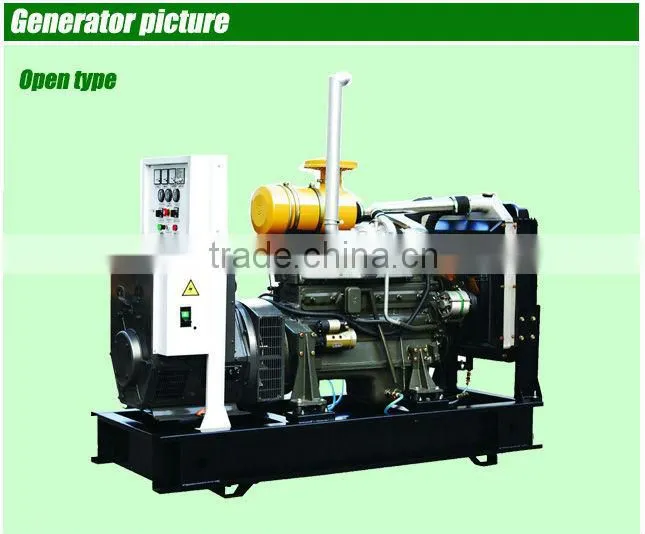

| Genset model | GHR50 (open type) |
|||
| GHR50S (silent type) | ||||
| Frequency | 50Hz/1500rpm, 60Hz/1800rpm | |||
| Voltage | 110/220, 220/380, 230/400, 240/415, 254/440V |
|||
| Rated power | 40Kw/50Kva | |||
| Standby power | 44Kw/55Kva | |||
| Phase | 3 Phase or 1 Phase | |||
| Fuel tank capacity | 8-12 hours fuel tank | |||
| Fuel consumption | 9.20L/h | |||
| Silent level | Standard | |||
| Engine | Ricardo R4105ZD | ||
| Aspiration | Turbocharged | ||
| Frequency/Speed | 50Hz/1500rpm,60Hz/1800rpm | ||
| Rated power | 56Kw/74.6Hp | ||
| Standby power | 61.6Kw/82Hp | ||
| Cylinder | 4 | ||
| Displacement | 4.33L | ||
| Bore*Stroke | 105mm*125mm | ||
| Compression ratio | 16:1 | ||
| Governing system | Mechanical | ||
| Cooling way | Water-cooled | ||
| Alternator | Stamford (UCI224D)/HWN224D | ||
| Frequency/Speed | 50Hz/1500rpm,60Hz/1800rpm | ||
| Rated power | 40Kw/50Kva | ||
| Standby power | 44Kw/55Kva | ||
| Phase | 3 phase or 1 phase | ||
| Protection class | IP21 or 23 | ||
| Excitation | Brushless, self-excitation | ||
| Altitude condition | <1000m | ||
| Insulation class | H | ||
| Tel.Influence Factor | <50 | ||
| Tel.Harmonic Factor | <2% | ||
| Efficiency | 93.80% | ||
| Cooling Air Flow | 1.035m3/s | ||
| Power Factor | 0.8 | ||
The HGM180HC is an Automatic Engine Control System, this control system
is used to automatically start and stop the engine, indicating the operational status
and fault conditions, automatically shutting down the engine and indicating the engine
failure by LED on the front panel, Such as Over speed, Low oil pressure, High water
temperature, Fail to start. Battery charger failure, this control system also have
a function to count the hours by LCD.
There are many brand control panel for our customer choice, such as Smartgen,
Deep sea, Comap or other brands, if you need these kind of controller, please kindly
contact with the salesman,thanks.
ATS means Automatic Transfer Switch, when the city power supply failure, the genset will be running
automatically within few minutes. on the contrary, when the city power recovered, the genset will stop
running automatic by itself within few minutes. .
| STANDARD ACCESSORIES | ||||
| Exhaust Silencer | Starting battery | Battery Charger | Battery Wires | Flexible pipe |
| Circuit Breaker | Cooling Radiator | Float Battery Charger | Control system | Base Frame |
| AVR | Flange | Wire diagram | Manual Book | |
| OPTION ACCESSORIES | ||||
| ATS | External Fuel Tank | Silent Canopy | PMG | Water Pheater |
| Synchronization Panel | Automatic Fuel Tank | Weatherproof Canopy | Auti-condensation heater | Lub Oil Preheater |
| ABB Breaker | Oil Dain pump | Mobile trial | Parallel droop | Spare parts |
Dear Customer,
Thanks a lot for your attention to our products and factory.
We are specializes in producing Diesel generator,Gasoline generator, Alternator,
Electric Motor in China, If you are interested in our products or factory, please kindly
contact with us by Email or Aliwangwang for more details, So we can send you detail
quotation with specification, thanks.
Fujian Haiweineng Electrical Machinery Co.,Ltd
Add: Xibing Industrial Zone, Fu'an, Fujian, China.
Tel:+86-593-6616768
Fax: +86-593-6580466
P.C:355000
