Specifications
Generator Discount1.Yuchai Engine
2.Stamford Technology Alternator
3.Technology from Germany,FEV,Yuchai
Main Product: diesel engine, diesel generator, alternator and spare parts;
Diesel Engine Usage: Widely used for generator set, boat, wheel loader, truck, water pump, sand pump,
fire pump, construction machine, etc;
Diesel Engine Power Range: from 20kw up to 700kw;
Diesel Generator Power Range: from 30kw up to 700kw.

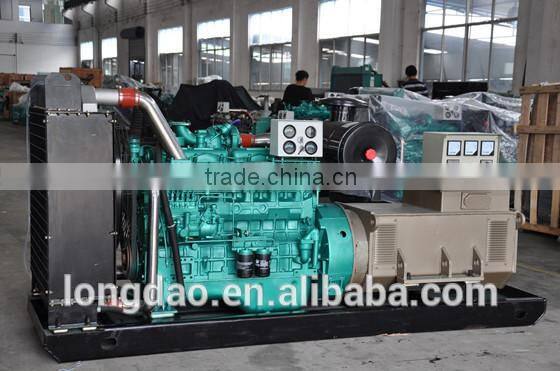

Yuchai series 120kw 150kva Water cooler Generator Discount Data
| Genset Model (LD Brand) | LD120GF | |
| Rated Power/Speed (kw/r/min) | 120/1500 | |
| LD Diesel Engine |
Engine Model | LD6B210L |
| Rated Power/Speed kw/r/min | 139/1500 | |
| Type | Vertical,inline,water-cooled,four stroke | |
| Intake Way | Turbocharged&intercooled | |
| Number of cylinders×bore×stroke(mm) | 6-108×125 | |
| Total dispalcement(L) | 6.9 | |
| Min fuel consumption (g/kw.h) | ≤200 | |
| Starting type | Electric | |
| Speed governor model | Mechanical | |
| Oil capacity(L) | 14~17 | |
| Low noise limit dB(A) | ≤ 102 | |

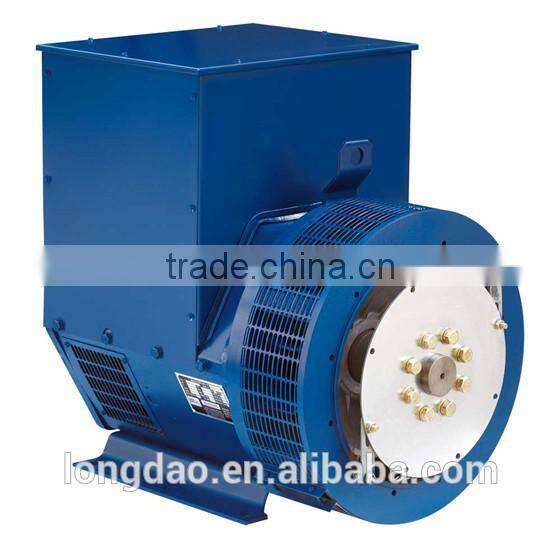

| Wattek Alternator (Stamford Technology) |
Alternator nodel | 274E |
| Rated voltage(V) | 400/230 or 380/220 | |
| Current(A) | 216 | |
| Freq(Hz) | 50 or 60 | |
| Regulator approach | AVR | |
| Power factor(CosØ) | 0.8 Lagging | |
| Phase | 3Phase 4Wire | |
| Insulation Class | F/H | |
| Protection Class | IP22/IP23 | |
| Genset Packing |
Net weight(kg) | 2200 |
| Genset dimension L*W*H(mm) | 3300×1150×1500 | |
Yuchai series 120kw 150kva Water cooler Generator DiscountService
1.Warranty interms will be issued by our factory,which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent(include sea freight and insurance)to buyers witthout charges;
4.Easy torn parts are excluded in the warrenty,like plugs,condenser,fuse,battery,seal;
5.Problems cased by customer's incorrect man-made operation will be covered by the user;
6.Part use for overhaul and ordinary maintance will be offered by us in factory price;
7.Skillful engineers of us are available dispatched top cuatomers palce for training and service.
|
