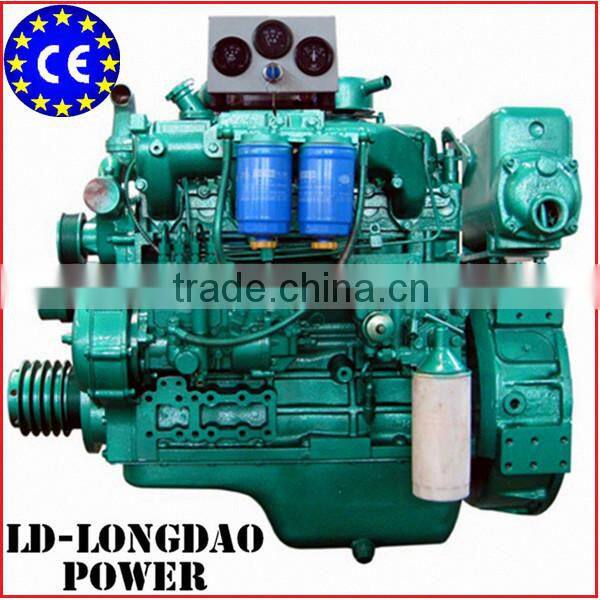

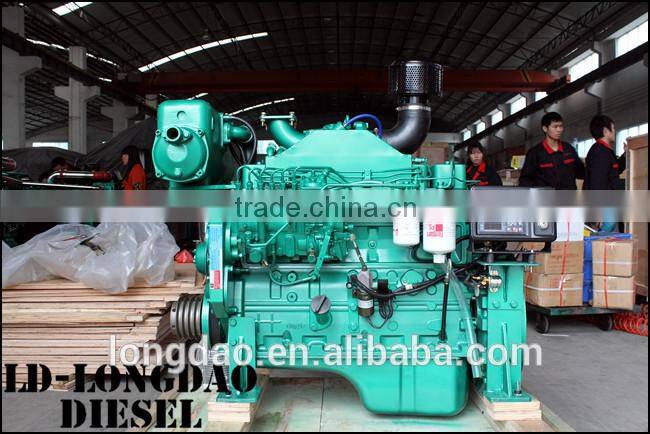

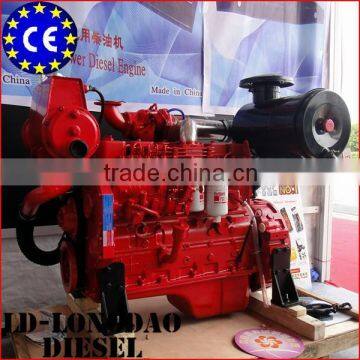

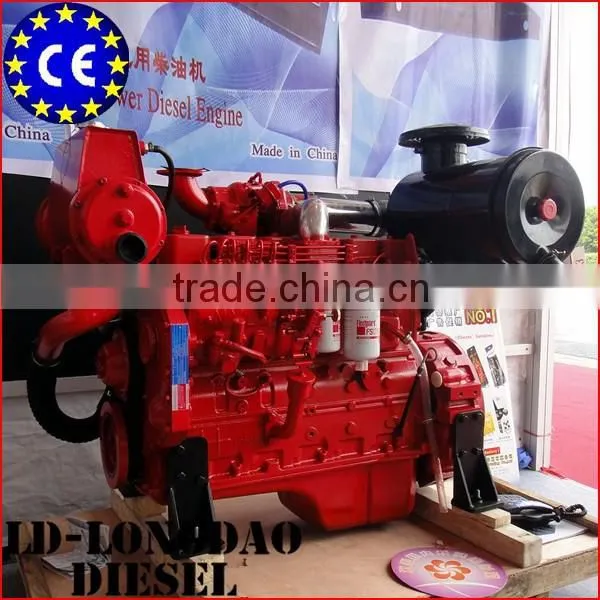

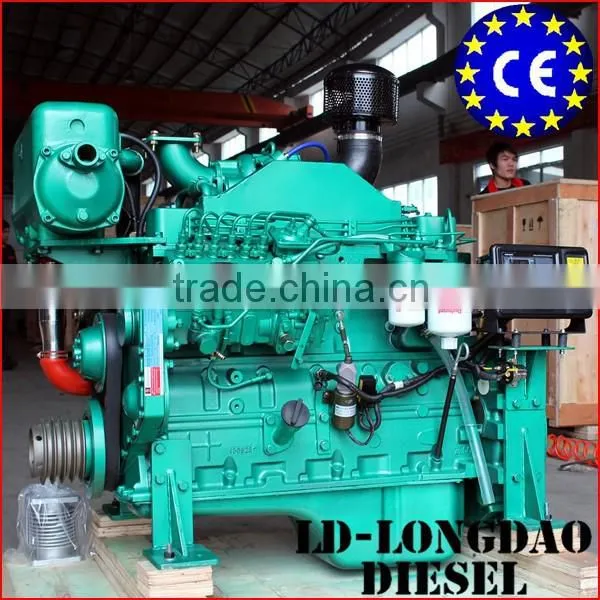

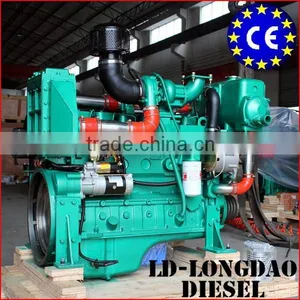

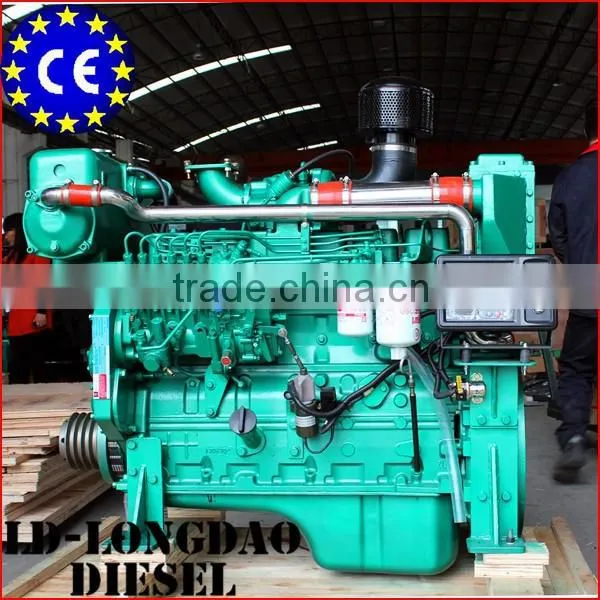

Engine 6BT Marine Diesel Engine With Competitive Price

Engine 6BT Marine Diesel Engine With Competitive Price thumbnail-1
Engine 6BT Marine Diesel Engine With Competitive Price thumbnail-2
Engine 6BT Marine Diesel Engine With Competitive Price thumbnail-3
Engine 6BT Marine Diesel Engine With Competitive Price thumbnail-4
Engine 6BT Marine Diesel Engine With Competitive Price photo-1

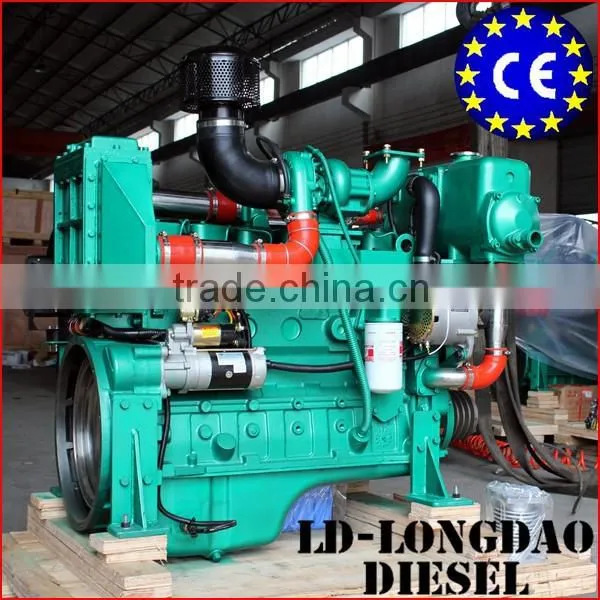

Engine 6BT Marine Diesel Engine With Competitive Price photo-2
Engine 6BT Marine Diesel Engine With Competitive Price photo-3
Engine 6BT Marine Diesel Engine With Competitive Price photo-4
US$ 4,900 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Boat
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Liuzhou Long Dao Industrial And Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Guangzhou Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Boat
Fuel Diesel
Stroke 4 Stroke
Cylinder Other, 6 cylinder, 6 cylinder
Cold Style Other, Water-cooled
Start Electric Start
Place of Origin Guangxi, China
Brand Name LD
Model Number 6BT5.9-GM100
Dimension(L*W*H) 1115x700x900 mm
Weight 480kg
Certification CE & ISO9001:2008
Warranty 12 Month
After-sales Service Provided Overseas third-party support available

Main Product: diesel engine, diesel generator, alternator and spare parts;

Diesel Engine Usage: Widely used for generator set, boat, wheel loader, truck, water pump, sand

                              pump, fire pump, construction machine, etc;

Diesel Engine Power Range: from 20kw up to 700kw;

Diesel Generator Power Range: from 30kw up to 700kw.



Engine 6BT Marine Diesel Engine With Competitive Price Technical Parameters

Engine Model 6BT5.9-GM83 6BT5.9-GM100 6BT5.9-M120
Type Vertical, in-line, water-cooled, 4-stroke
Intake Way Turbocharged
No Cylinders, Bore x Stroke(mm) 6-102×120
Displacement(L) 5.9
Compression ratio 17.5:1

Rated power/speed

(kW/r/min)

 83/1500 100/1800
 90/2200

Max Torque/speed

(N.m/ r/min)

 92/1500 110/1800
 100/2270
Min fuel consumption g/(kW·h) ≤198

Oil capability(L)

14-16
Oil Consumption g/(kW·h) ≤0.8
Starting Type Electric
Crankshaft rotation direction (Face to power output end) Anti-Clockwise
Dimmension (mm) 1115x700x900
Net Weight (kg) 480
Reduction gearbox be matched Hangzhou Advanced Gearbox:M142,40A,MA170,MBS170
Performance Auxiliary engine
Certificate ISO9001:2008   ZC   ZY

Coupling Size

 3#11.5

Engine 6BT Marine Diesel Engine With Competitive Price

Engine 6BT Marine Diesel Engine With Competitive Price



Engine 6BT Marine Diesel Engine With Competitive Price Warranty Service

1.Warranty iterms will be issued by our own factory, which is simple and quick;

2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;

3.Parts replacement under warranty will be sent (include sea freight and insurance) to buyers without charges;

4.Easy torn prts are excluded in the warranty, like plugs, condenser, fuse, battery, seal;

5.Problems caused by customer's incorrect man-made operation will be covered by the user;

6.Part use for overhual and ordinary maintanence will be offered by us in factory price;

7.Skillful engineers of us are available dispatched to customers place for training and service.



Other Type Marine Engine For Option

Engine 6BT Marine Diesel Engine With Competitive Price  Engine 6BT Marine Diesel Engine With Competitive Price  Engine 6BT Marine Diesel Engine With Competitive Price  Engine 6BT Marine Diesel Engine With Competitive Price
4F 30-50kw 4BTA 45-65kw 6CT 125-190kw 6B 60-120kw
