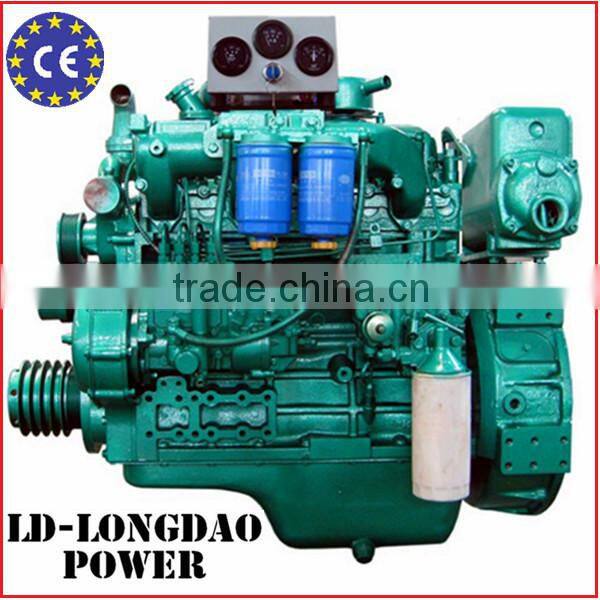

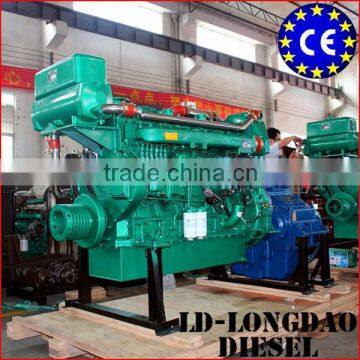

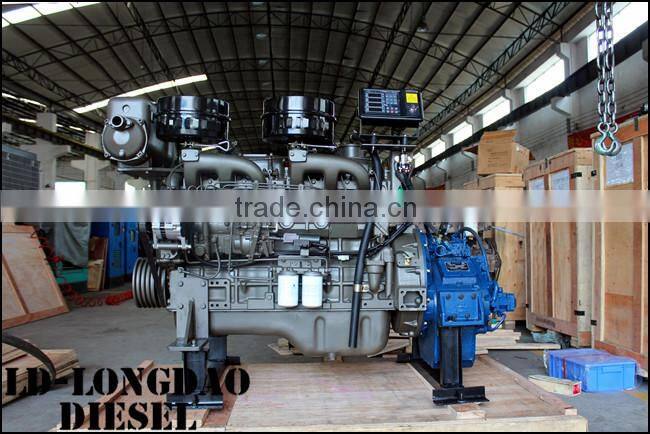

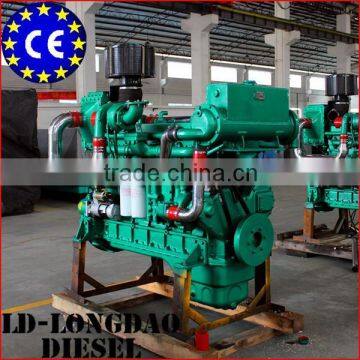

Help CenterCheap Price 220hp Marine Engine Manufacturers
Related Products
-
6B Series Boat Diesel Marine Engine For SaleUS$ 3,400 - 4,200MOQ: 1 Set -
6BT5.9 Water-cooled Turbocharged Cheap Diesel EnginesUS$ 4,200 - 4,400MOQ: 1 Set
-
LD 80kw 3Phase 4Wire Genset Price ListUS$ 5,500 - 5,600MOQ: 1 Set
-
LD150GF 150kw 3phase ATS Silent Type Diesel Generator ElectricUS$ 11,000 - 11,500MOQ: 1 Set
-
Low Price LD100GF Diesel Generator 50hz AC 100kw PowerUS$ 5,600 - 5,700MOQ: 1 Set
Main Product: diesel engine, diesel generator, alternator and spare parts;
Diesel Engine Usage: Widely used for generator set, boat, wheel loader, truck, water pump, sand
pump, fire pump, construction machine, etc;
Diesel Engine Power Range: from 20kw up to 700kw;
Diesel Generator Power Range: from 30kw up to 700kw
Cheap Price 220hp Marine Engine Manufacturers Technical Parameters
| Model | 6LA150ZC | 6LA190ZC | 6LA220ZC | 6LA220ZC |
6LA240ZLC |
6LA240ZLC | 6LA260ZLA |
| Type | Vertical, in-line, water-cooled, 4-stroke | ||||||
| Intake Way |
Turbocharged |
Turbocharged&Inter-cooled |
|||||
| No Cylinders, Bore x Stroke(mm) | 6-108×140 | ||||||
| Displacement(L) | 7.7 | ||||||
| Compression ratio | 17.5:1 | ||||||
| Rated power/speed(kW/r/min) | 112/1500 | 140/1500 | 162/2300 | 162/1800 | 176/1800 |
176/1500 | 192/2100 |
| One hour rated power/speed(kW/r/min) | 123/1548 | 154/1548 | 178/2374 | 178/1858 | 194/1858 |
194/1548 | 211/2168 |
| Min fuel consumption g/(kW·h) |
≤195 |
||||||
| Oil Consumption g/(kW·h) | ≤0.8 | ||||||
| Starting Type | Electric | ||||||
| Crankshaft rotation direction (Face to power output end) | Anti-Clockwise | ||||||
| Dimmension (mm) | 1415x910x1092 | ||||||
Coupling Size |
1#14 |
||||||
| Net Weight (kg) | 780 | ||||||
| Reduction gearbox be matched | Hangzhou Advanced Gearbox:M142,40A,MA170,MBS170 | ||||||
| Performance | Auxiliary engine | ||||||
| Certificate | ISO9001:2008 ZC ZY | ||||||
Cheap Price 220hp Marine Engine Manufacturers Technology Advantages
1.OEM engine manufacturer in China, technology origin from Germany;
2.With certificates ISO9001:2008 approved;
3.Share parts supply system with origin Yvchai engines;
4.D&R (Develop and Research) team/experts have more than 15 experience in this field;
5.Engine assembly solution and CKD service is available to offer to customers.
Cheap Price 220hp Marine Engine Manufacturers Warranty Service
1.Warranty iterms will be issued by our own factory, which is simple and quick;
2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;
3.Parts replacement under warranty will be sent (include sea freight and insurance) to buyers without charges;
4.Easy torn prts are excluded in the warranty, like plugs, condenser, fuse, battery, seal;
5.Problems caused by customer's incorrect man-made operation will be covered by the user;
6.Part use for overhual and ordinary maintanence will be offered by us in factory price;
7.Skillful engineers of us are available dispatched to customers place for training and service.
Other Type Marine Engine For Choose
|
|
|
|
| 4F 30~50kw | 4BTA 45~65kw | 6BT 80~110kw | 6M 190~300kw |
|
Contacter : Fan Li (Vera) |
