Main Product: diesel engine, diesel generator, alternator and spare parts;
Diesel Engine Usage: Widely used for generator set, boat, wheel loader, truck, water pump, sand pump,
fire pump, construction machine, etc;
Diesel Engine Power Range: from 20kw up to 700kw;
Diesel Generator Power Range: from 30kw up to 700kw.
Diesel Power Generator 400KW~468KW Three-phase For Sale Specifications
| Genset Model (LD Brand) | LD400GF | LD468GF | |
| Rated Power/Speed kw/r/min | 400/1500 | 468/1500 | |
| LD Diesel Engine | Engine Model | LD12M690L | LD12M750L |
| Rated Power/Speed kw/r/min | 459/1500 | 505/1500 | |
| Type | V Type , water-cooled, four stroke | ||
| Intake Way | Turbocharged & Inter cooled | ||
| Number of cylinders×bore×stroke (mm) | 12-138×150 | ||
| Total displacement(L) | 25.8 | ||
| Min fuel consumption (g/kw.h) | ≤205 | ||
| Starting type | Electric | ||
| Speed governor model | Electrical | ||
| Oil capacity(L) | 55-60 | ||
| Low noise limit dB (A) | ≤110 | ||
| Wattek Alternator | Alternator model | 544C | 544E |
| Rated voltage (V) | 400/230 or 380/220 | ||
| Current( A) | 720 | 842.4 | |
| Freq( Hz) | 50 or 60 | ||
| Regulator approach | AVR | ||
| Power factor (CosØ) | 0.8 Lagging | ||
| Phase | 3Phase 4Wire | ||
| Insulation Class | F / H | ||
| Protection Class | IP22 / IP23 | ||
| Genset Packing | Net weight (kg) | 5000 | |
| Genset dimension L*W*H (mm) | 4500×1500×2000 | ||
Diesel Power Generator 400KW~468KW Three-phase For Sale Feature

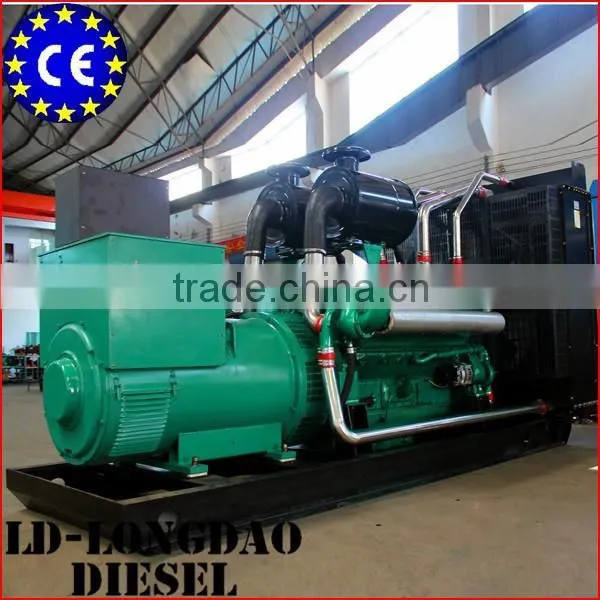

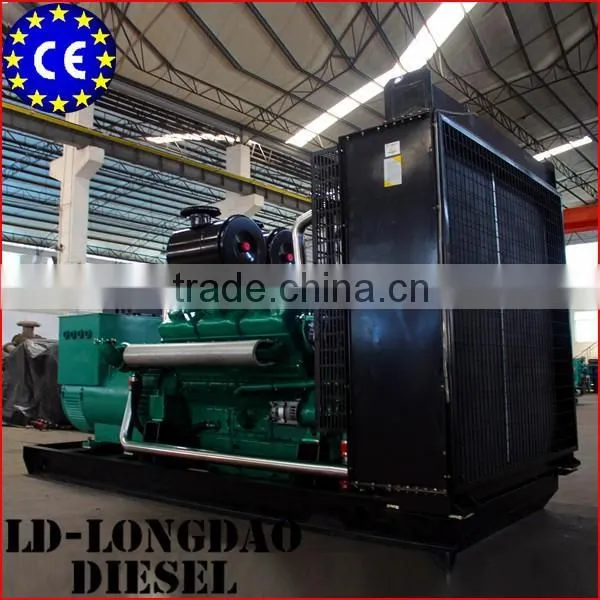

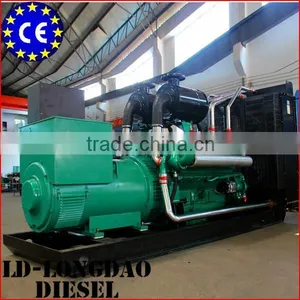

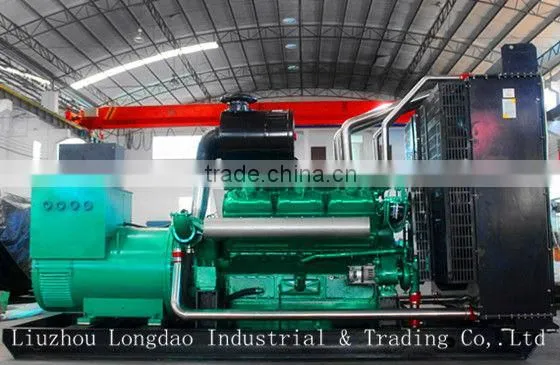

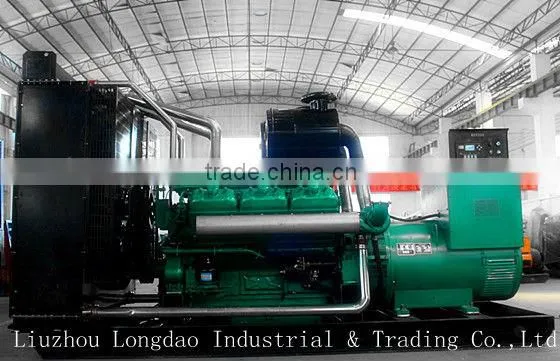

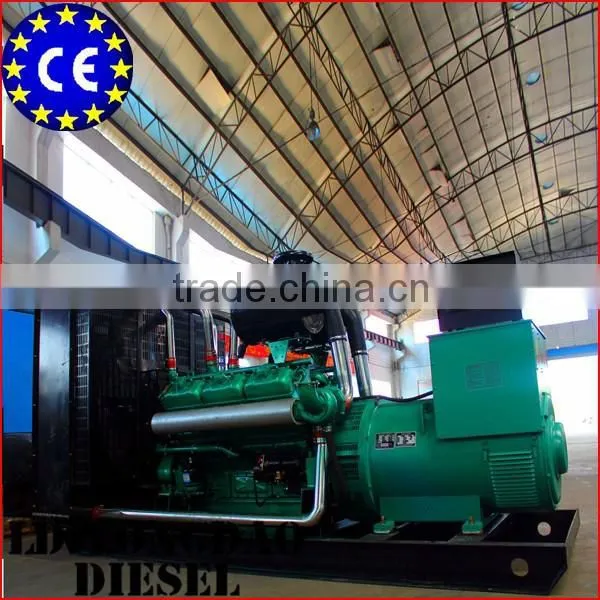

LD generator power , is equipped with LD 12M series engine, which is 12 cylinders, 4 stroke,
400KW~468KW power. The engine with the characteristics of powerful, stability, less fuel consumption,
long operation hours and life, and lower noise. Engine speed is 1500 and 1800 rpm for option.
The alternator is Wattek, which produced by Standford technology. With the same look and shape as
origin Standford alternator, wattek alternator have been very popular in current market due to its high quality.
And the Smartgen 6120 controller, which is the best controller made in China, is widely used in chinese
Genset manufacturer.
Diesel Power Generator 400KW~468KW Three-phase For Sale Service Advantage
1.Warranty for complete engine will be maximum 18 months from the date of arrival in destination port or
1500 working hours; whichever come first.
2.The warranty period to our customers will be 12 months or 1500 operation hours from commissioning
date,whichever come first;
3.Parts replacement under Warranty will be sent by us (Including Freight and Insurance) without charges;
4.The warranty issues including complete engine by our own company, which is simple and quickly. We
can also dispatch our engineer to your place for training and service.

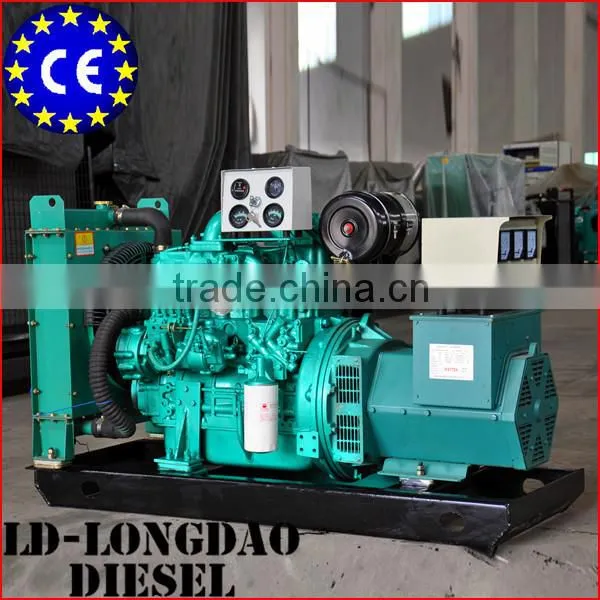

Other Generator Type For Choice
|
|
|
|
| 30~40kw | 80~120kw | 20~50kw | 160~200kw |
|
Ms.Miranda Wang (export/sales manager) Tel: +86 18276782715 Fax: +86 (0)772 2875155 Email: longdao04(at) Skype: LDmirandawang QQ:961156293 |
