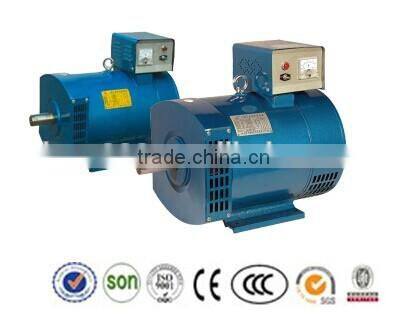

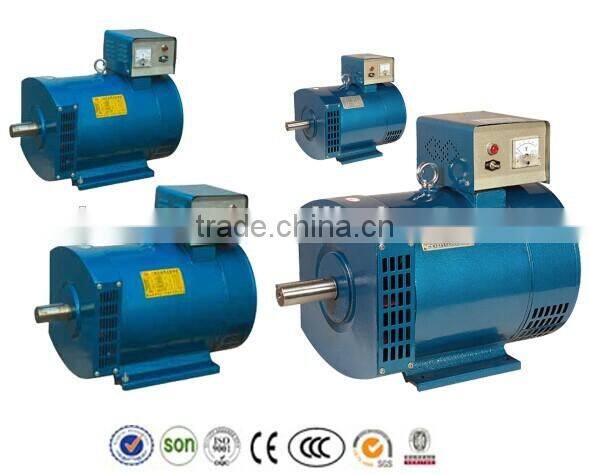

Alternator 230v Price From 2Kw to 50Kw Made in China

Name: Alternator 230v Price From 2Kw to 50Kw Made in China
Brand: HAIWEINENG
SKU: 109103221
Availability: InStock

US$ 1,500 - 8,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

HAIWEINENG

Model Number:

Brush alternator

Fujian Haiweineng Electrical Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FUZHOU

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name HAIWEINENG

Model Number Brush alternator

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50/60Hz

Rated Power 2Kw to 50Kw

Rated Voltage 110V to 440V

Rated Current standard

alternator 230v price from 2Kw to 50Kw

The alternator are to be used in town, the countryside, work sites, Mountain and lands as a electric power source for lighting purpose, it can also be used as a reserved power source for emergent case.
The generators are of drip-proof with rotary field type and with the adoption of harmonic excitation system, that allow your easy operation and simple maintenance.
The generators are of three-phase four-wire type, making use of atar connection with neutral point.
The rated line voltage is 400V, phase voltage 230V, frequency 50Hz, power factor 0.8(lag).
It can provide 60Hz and the other voltage´s generator according to necessary.
They can be coupled with a prime mover directly or through V-belt making right or reverse continuous rotation at the rated speed, when the revolution slip of prim mover is 3% and load varies in the range of 0-100% cosφ1.0-0.8 they give good constant voltage.
After sudden change (increase or decrease)of load, the generators will soon return to their normal working state, without any starting devices the generator can directly start an unloaded squirrel cage induction motor.

Single Phase A.C. synchronous ST alterntaor:

Model	Output(KW)	Voltage		Voltage(V)
Model	Output(KW)	Series connection	Parallel Connection	Series Connection	Parallel Connection
ST-2	2	8.7	17.4	230/240	115/120
ST-3	3	13	26	230/240	115/120
ST-5	5	21.8	43.5	230/240	115/120
ST-7.5	7.5	32.6	65.2	230/240	115/120
ST-10	10	43.7	87	230/240	115120
ST-12	12	52.2	104	230/240	115/120
ST-15	15	65.2	130	230/240	115/120
ST-20	20	87	174	230/240	115/120
ST-24	24	104.4	208.8	230/240	115120
power factor: 1, pole number:4, Frequency:50Hz/60Hz, Voltage: 110,220,230,240,254

Three Phase A.C.synchronous STC alternator:
