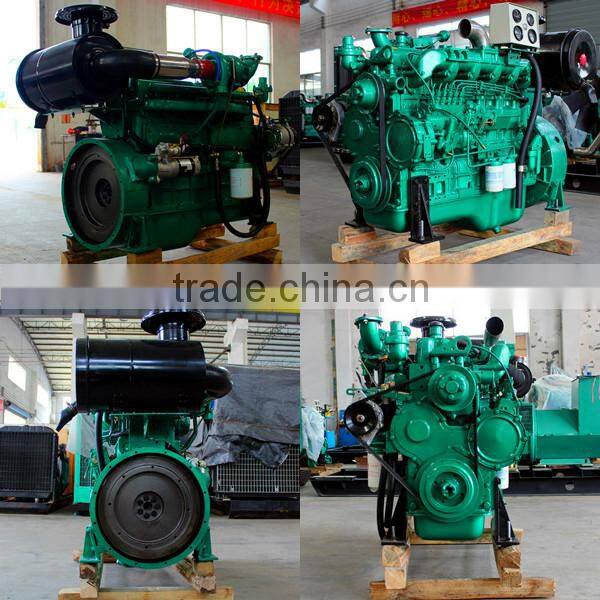

LD 6B180L 4-Stroke Turbojet Diesel Engine Manufacturers

LD 6B180L 4-Stroke Turbojet Diesel Engine Manufacturers thumbnail-1
LD 6B180L 4-Stroke Turbojet Diesel Engine Manufacturers photo-1
US$ 3,500 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Diesel Generator Set
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Liuzhou Long Dao Industrial And Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Guangzhou Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, Diesel Generator Set
Fuel Diesel
Stroke 4 Stroke
Cylinder Other, 6 cylinder
Cold Style Other, Water-cooled
Start Electric Start
Place of Origin Guangxi, China
Brand Name LD
Model Number 6B180L
Dimension(L*W*H) 1350x790x1110mm
Weight 650 kg
Certification CE & ISO9001:2008
Warranty 12 Month
After-sales Service Provided Overseas third-party support available

Specifications

1.Yuchai and FEV Germany technology
2. Price less 20%-30% than other brand
3. CE & ISO9001:2008
4. Sharing Yuchai part

Main Product: diesel engine, diesel generator, alternator and spare parts;

Diesel Engine Usage: Widely used for generator set, boat, wheel loader, truck, water pump, sand pump,

                                     fire pump, construction machine, etc;

Diesel Engine Power Range: from 20kw up to 700kw;

Diesel Generator Power Range: from 30kw up to 700kw.



120kw Diesel Engine Technical Parameters

Model 6B180L
Type Vertical, in-line,water-cooled,4-stroke
Intake Way Turbocharged & Inter-cooled
No of Cylinder,Bore x Stroke(mm) 6-108x125
Displacement (L) 6.87
Compression Ratio 17.5:1
Rated Power/Speed(kw/r/min) 120/1500
Standby Power/speed(kw/r/min) 132/1500
Min Fuel Consumption g/(kw.h) ≤200
Oil Capability (L) 14~17
Oil Consumption g/(kw.h) ≤1.0
Starting Type Electric start
Noise Limit Db (A) ≤102
Type of Governor Mechanical
Governing Rate ≤5%
Flywheel House/Flywheel 2#11.5
Applicable altitude(m) ≤2500
Dimension(mm) 1350×790×1110
Net weight(kg) 650

120kw Performance and Features

Engine Feature
 Lower oil/fuel consumption; lower noise; Small vibration
Combustion Type Direct Injection

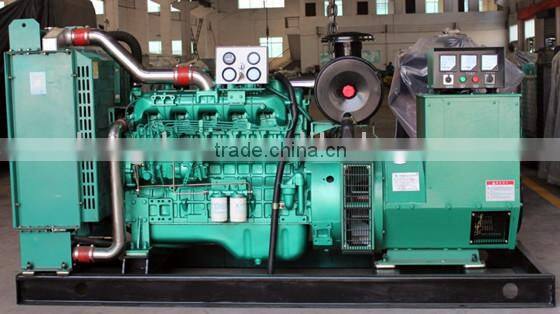

Matched Power of Genset 96kw~108kw
Mached AC Alternator Stanford, Siemens, any brand AC Three Phase Alternator
Matched Alternator Speed 1500/1800 rpm
Maintanence Spare Parts Yuchai and LD Brand Engine Parts
Cylinder Block Material Alloy Cast Iron
Max Overhaul More than 15,000 hours
Factory Production Period Within 4 days

LD 6B180L 4-Stroke Turbojet Diesel Engine Manufacturers

LD 6B180L 4-Stroke Turbojet Diesel Engine Manufacturers

LD 6B180L 4-Stroke Turbojet Diesel Engine Manufacturers

120kw Diesel Engine Technology Advantages

1.OEM engine manufacturer in China, technology origin from Germany, FEV, Yuchai companies;

2.With certificates CE & ISO9001:2008 approved;

3.Share parts supply system with origin Yuchai engines;

4.D&R (Develop and Research) team/experts have more than 15 experience in this field;

5.Engine assembly solution and CKD service is available to offer to customers.

120kw Diesel Engine Warranty and Maintenance Service

1.Warranty iterms will be issued by our own factory, which is simple and quick;

2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;

3.Parts replacement under warranty will be sent (include sea freight and insurance) tobuyers without charges;

4.Easy torn prts are excluded in the warranty, like plugs, condenser, fuse, battery, seal;

5.Problems caused by customer's incorrect man-made operation will be covered by the user;

6.Part use for overhual and ordinary maintanence will be offered by us in factory price;

7.Skillful engineers of us are available dispatched to customers place for training and service.
