Home > Industrial Equipment & Components > Engine & Part > Engine > LD 12M Series 4 Stroke Turbo Charging 12 Cylinder Diesel Engine

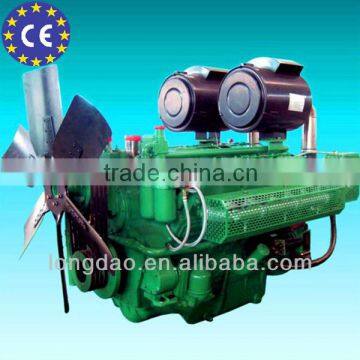

LD 12M Series 4 Stroke Turbo Charging 12 Cylinder Diesel Engine

LD 12M Series 4 Stroke Turbo Charging 12 Cylinder Diesel Engine thumbnail-1
LD 12M Series 4 Stroke Turbo Charging 12 Cylinder Diesel Engine photo-1
US$ 14,000 - 16,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Diesel Generator Set
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Liuzhou Long Dao Industrial And Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Guangzhou Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, Diesel Generator Set
Fuel Diesel
Stroke Other, 4 Stroke, 4 Stroke
Cylinder Other, 12 cylinder
Cold Style Other, Water-cooled
Start Electric Start
Place of Origin Guangxi, China
Brand Name LD
Model Number 12M Series
Dimension(L*W*H) 2480x1386x2018 mm
Weight 2800kg
Certification CE & ISO9001:2008
Warranty 12 Month
After-sales Service Provided Overseas third-party support available

Specifications

1.Germeny,Yuchai and FEV technology
2.Price less 20%-30% than other brand
3.CE & ISO9001:2008
4.Share Yuchai part

12 Cylinder Diesel Engine Technical Parameters

Model 12M605L 12M690L 12M750L
Type Vertical,in-line,water-cooled,4 stroke
Intake way Turbocharging & Inter-cooled
No cylinder,BorexStroke(mm) 12-135x150
Displacement (L) 25.8
Compession ratio 16:1
Rated power/speed (kw/r/min) 405/1500 459/1500 505/1500
Stand by power(kw/r/min) 445/1500 505/1500 555/1500
Min fuel consumption g/(kw.h) ≤205
Oil capacity (L) 55~60
Oil consumption g/(kw.h) ≤1.2
Starting type Electric start
Regulator approach Electric
Governing rate ≤1%
Flywheel house/flywheel 0.5#14"
Noise limit dB(A) ≤110
Suitable height above sea level ≤2500
Dimention (LxWxH) mm 2480x1386x2018
Net weight (kg) 2800

12 Cylinder Diesel Engine Performance and Features

Engine Feature Lower oil/fuel consumption; lower noise; Small vibration
Combustion Type Direct Injection
Matched Power of Genset 324kw~454kw
Mached AC Alternator Stamford, Siemens, any brand AC Three Phase Alternator
Matched Alternator Speed 1500 rpm
Maintanence Spare Parts Yuchai and LD Brand Engine Parts
Cylinder Block Material Alloy Cast Iron
Max Overhaul More than 15,000 hours
Factory Production Period Within 4 days

LD 12M Series 4 Stroke Turbo Charging 12 cylinder diesel engine

12 Cylinder Diesel Engine Technology Advantages

1.OEM engine manufacturer in China, technology origin from Germany, FEV, Yuchai companies;

2.With certificates CE & ISO9001:2008 approved;

3.Share parts supply system with origin Yuchai engines;

4.D&R (Develop and Research) team/experts have more than 15 experience in this field;

5.Engine assembly solution and CKD service is available to offer to customers.

12 Cylinder Diesel Engine Warranty and Maintenance Service

1.Warranty iterms will be issued by our own factory, which is simple and quick;

2.Warranty period will be 12 monthes or 1500 working hours from commissioning date;

3.Parts replacement under warranty will be sent (include sea freight and insurance) to buyers without charges;

4.Easy torn prts are excluded in the warranty, like plugs, condenser, fuse, battery, seal;

5.Problems caused by customer's incorrect man-made operation will be covered by the user;

6.Part use for overhual and ordinary maintanence will be offered by us in factory price;

7.Skillful engineers of us are available dispatched to customers place for training and service.

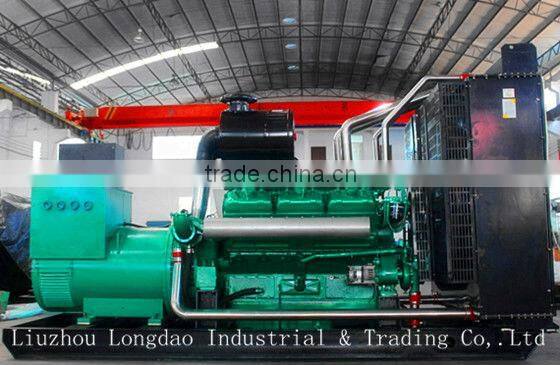

LD 12M Series 4 Stroke Turbo Charging 12 cylinder diesel engine
