Incremental Optical Rotary Encoder ISC3806, Solid Shaft Motor Rotary Encoder (IBEST)

Incremental Optical Rotary Encoder ISC3806, Solid Shaft Motor Rotary Encoder (IBEST) thumbnail-1
Incremental Optical Rotary Encoder ISC3806, Solid Shaft Motor Rotary Encoder (IBEST) thumbnail-2
Incremental Optical Rotary Encoder ISC3806, Solid Shaft Motor Rotary Encoder (IBEST) thumbnail-3
Incremental Optical Rotary Encoder ISC3806, Solid Shaft Motor Rotary Encoder (IBEST) photo-1

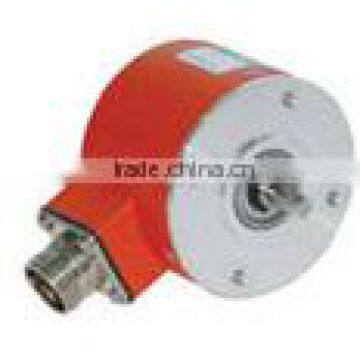

Incremental Optical Rotary Encoder ISC3806, Solid Shaft Motor Rotary Encoder (IBEST) photo-2

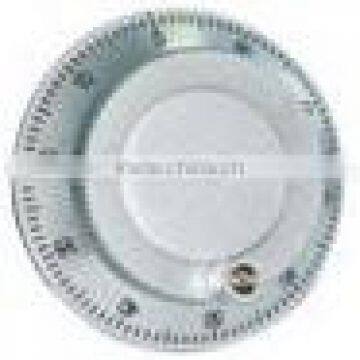

Incremental Optical Rotary Encoder ISC3806, Solid Shaft Motor Rotary Encoder (IBEST) photo-3
US$ 28 - 35 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST
Model Number:
ISC3806
Contact Supplier Request Quote Chat Now
Zhongshan IBEST Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST
Model Number ISC3806

1. FEATURES of IBEST Shaft Incremental Rotary Switch (ISC 3806):
 *   Solid Shaft Incremental Rotary Switch

*   Outside diamter:38mm; Solid shaft: 6mm.

    (There are various types other encoders: hollow shaft enocder, manual encoder, motor encoder...etc.)
*   Output: ABZ or ABZA-B-Z-signals
*   DC5V~24V power supply.



*   Complete solid shaft encoder, suitable for power motor.

*   Standard No. of impulse: 10,20,50, 100, 120,150,200,256, 300,360,400,480,500,512,600,720,800,900,960,1000,1024,1200,1250,1440,1500,1800,2000,2048,.2500P/R . (special 3600 PPR and 5000 PPR can be made)

*   Output: open collector NPN / PNP, or TTL or Linedriver or Voltage.  (or DC12-24V linedriver output can be specially made)

*   Output wave: square wave.

*   Response requency: 0~100K HZ

*   Output phase difference: 90 degree +/- 45 degree.



*   Speed without sealing: 5000RMP.

*   Rotor inertia of code wheel: Appr. 3.5*10(-6)Kgm2

*   Starting torque without sealing: < or = 1.5X, 10-3 Nm (+25 C)

*   Max. torque without sealing: radial 20N, Axial 10N.

*   Shock resistance: 980M/S2, 6ms, 2 times each on XYZ

*   Viration proof: 50/ms2, 10~200Hz, 2 hours each on XYZ

*   Working life: MTBF> or = 25000h (+25 C, 2000 RPM)

*   Protection IP54.



2. Ordering Code: (Shaft Incremental rotary switch 3806)
Model and Type Encoder diameter Output Axe diameter Connector   Buy
ISC3806-XX-C  38mm  NPN or PNP open collector  6mm    Cable (side)
ISC3806-XX-F  38mm  Push Pull output  6mm    Cable (side)
ISC3806-XX-E  38mm  Voltage output  6mm    Cable (side)
ISC3806-XX-L  38mm  DC5V linedriver output  6mm    Cable (side)

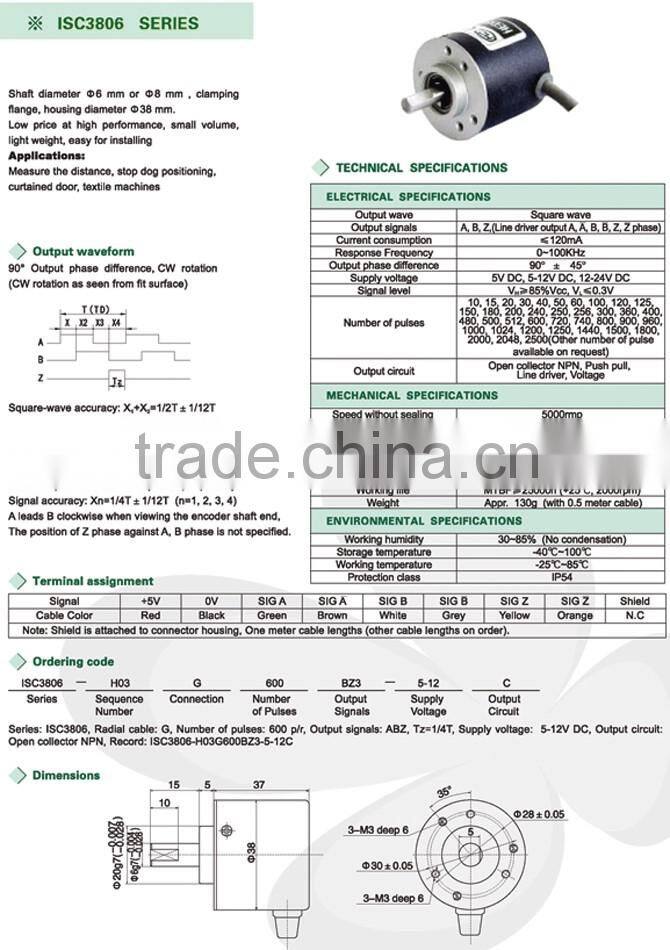

3. Technical Specifications:
Property project Specific parameter
Out wave & duty ratio square wave & 0.5T±0.1T
Current Consumption ≤120mA
Response frequency 0-100KHz
Max.permissible revolution 5000rpm
Moment of inertia 3.5*10-6Kg.m2
Starting torque 1.5*10-3Nm
Shaft loading Radical:15N / Thrust :10N
IP rating IP54
Operate & Stock temperature -30-85 C/ -40-100 C
Ambient humidity 30-85%(with no condensation)
Power supply DC+5V±5% / +5-12V / +12-24V
Shock resistance 980m/s2,6ms,2 times each in X,Y,Z directions
Vibration resistance 50m/s2,10-200Hz,2 times each in X,Y,Z directions
Operating life MTBF≥25000h (+25C,2000rpm)
Output voltage Vh≥85% Vcc,Vi≤0.3V
Weight 0.1kg



 Incremental Optical Rotary Encoder ISC3806, Solid Shaft Motor Rotary Encoder (IBEST)



Our company is a professiona manufacutures of:



1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.

2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)
3, Solid state relay: single phase and 3 phase
4, Rotary encoder and couplings
5, Various type of cable and connectors..etc.
6, Pressure transmitters.
7, Safety light curtain.
Incremental Optical Rotary Encoder ISC3806, Solid Shaft Motor Rotary Encoder (IBEST)



Welcome to contact us!
