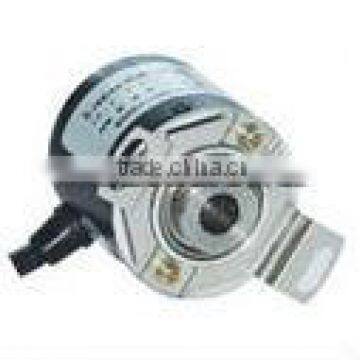

Hollow Shaft Rotary Encoder,Optical Inremental Rotary Encoder, Manual Encoder, Stepper Motor Encoder IBEST

Hollow Shaft Rotary Encoder,Optical Inremental Rotary Encoder, Manual Encoder, Stepper Motor Encoder IBEST thumbnail-1
Hollow Shaft Rotary Encoder,Optical Inremental Rotary Encoder, Manual Encoder, Stepper Motor Encoder IBEST thumbnail-2
Hollow Shaft Rotary Encoder,Optical Inremental Rotary Encoder, Manual Encoder, Stepper Motor Encoder IBEST thumbnail-3
Hollow Shaft Rotary Encoder,Optical Inremental Rotary Encoder, Manual Encoder, Stepper Motor Encoder IBEST thumbnail-4
Hollow Shaft Rotary Encoder,Optical Inremental Rotary Encoder, Manual Encoder, Stepper Motor Encoder IBEST thumbnail-5
Hollow Shaft Rotary Encoder,Optical Inremental Rotary Encoder, Manual Encoder, Stepper Motor Encoder IBEST thumbnail-6
Hollow Shaft Rotary Encoder,Optical Inremental Rotary Encoder, Manual Encoder, Stepper Motor Encoder IBEST photo-1
Hollow Shaft Rotary Encoder,Optical Inremental Rotary Encoder, Manual Encoder, Stepper Motor Encoder IBEST photo-2
Hollow Shaft Rotary Encoder,Optical Inremental Rotary Encoder, Manual Encoder, Stepper Motor Encoder IBEST photo-3
Hollow Shaft Rotary Encoder,Optical Inremental Rotary Encoder, Manual Encoder, Stepper Motor Encoder IBEST photo-4
Hollow Shaft Rotary Encoder,Optical Inremental Rotary Encoder, Manual Encoder, Stepper Motor Encoder IBEST photo-5
Hollow Shaft Rotary Encoder,Optical Inremental Rotary Encoder, Manual Encoder, Stepper Motor Encoder IBEST photo-6
US$ 35 - 50 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST
Model Number:
ISC3806, IHC3806
Contact Supplier Request Quote Chat Now
Zhongshan IBEST Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST
Model Number ISC3806, IHC3806

Specifications

Rotary Encoder 3806
1.Encoder shaft 6mm ,D=38mm
2.Various number of pulses(10-2500 p/r)
3.Output:Open conllector /Voltage ..

1. FEATURES of IBEST rotary encoder (ISC 3806):

*   Solid Shaft Incremental Rotary Encoder
*   Outside diamter:38mm; Solid shaft: 6mm
*   Output: ABZ or ABZA-B-Z-signals
*   DC5V~24V power supply.

*   Complete hollow shaft encoder, suitable for power motor.

*   No. of impulse: 50, 100, 200, 360...2500P/R or other special indicated.

*   Output wave: square wave.

*   Response requency: 0~100K HZ

*   Output phase difference: 90 degree +/- 45 degree.

*   Output: open collector NPN, or TTL or Linedriver or Voltage.

*   Speed without sealing: 5000RMP.

*   Rotor inertia of code wheel: Appr. 3.5*10(-6)Kgm2

*   Starting torque without sealing: < or = 1.5X, 10-3 Nm (+25 C)

*   Max. torque without sealing: radial 20N, Axial 10N.

*   Shock resistance: 980M/S2, 6ms, 2 times each on XYZ

*   Viration proof: 50/ms2, 10~200Hz, 2 hours each on XYZ

*   Working life: MTBF> or = 25000h (+25 C, 2000 RPM)

*   Protection IP54





2. Ordering Code: (Shaft Incremental rotary encoder 3806)
Model and Type Encoder diameter Holf of the axe diameter Axe diameter Connector   Buy
ISC3806-C  38mm  20mm  6mm  Pin connector (side)
ISC3806-G  38mm  20mm  6mm  Cable (side)
ISC3806-H  38mm  20mm  6mm  Pin connector (back)
ISC3806-E  38mm  20mm  6mm  Cable (back)

3. Technical Specifications:
Property project Specific parameter
Out wave & duty ratio square wave & 0.5T±0.1T
Current Consumption ≤120mA
Response frequency 0-100KHz
Max.permissible revolution 5000rpm
Moment of inertia 3.5*10-6Kg.m2
Starting torque 1.5*10-3Nm
Shaft loading Radical:15N / Thrust :10N
IP rating IP54
Operate & Stock temperature -30-85 C/ -40-100 C
Ambient humidity 30-85%(with no condensation)
Power supply DC+5V±5% / +5-12V / +12-24V
Shock resistance 980m/s2,6ms,2 times each in X,Y,Z directions
Vibration resistance 50m/s2,10-200Hz,2 times each in X,Y,Z directions
Operating life MTBF≥25000h (+25C,2000rpm)
Output voltage Vh≥85% Vcc,Vi≤0.3V
Weight 0.1kg





Our company is a professiona manufacutures of:



1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.

2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)
3, Solid state relay: single phase and 3 phase
4, Rotary encoder and couplings
5, Various type of cable and connectors..etc.
6, Pressure transmitters.
7, Safety light curtain.
