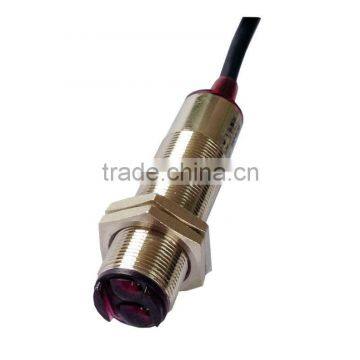

M18 NPN PNP AC Diffused Photo Electric Sensor Switch, Photoeye, Photocell, Photo Eye, Infared Sensor Switch 30CM Quality Choice

M18 NPN PNP AC Diffused Photo Electric Sensor Switch, Photoeye, Photocell, Photo Eye, Infared Sensor Switch 30CM Quality Choice thumbnail-1
M18 NPN PNP AC Diffused Photo Electric Sensor Switch, Photoeye, Photocell, Photo Eye, Infared Sensor Switch 30CM Quality Choice thumbnail-2
M18 NPN PNP AC Diffused Photo Electric Sensor Switch, Photoeye, Photocell, Photo Eye, Infared Sensor Switch 30CM Quality Choice thumbnail-3
M18 NPN PNP AC Diffused Photo Electric Sensor Switch, Photoeye, Photocell, Photo Eye, Infared Sensor Switch 30CM Quality Choice photo-1
M18 NPN PNP AC Diffused Photo Electric Sensor Switch, Photoeye, Photocell, Photo Eye, Infared Sensor Switch 30CM Quality Choice photo-2
M18 NPN PNP AC Diffused Photo Electric Sensor Switch, Photoeye, Photocell, Photo Eye, Infared Sensor Switch 30CM Quality Choice photo-3
US$ 8 - 10 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST
Model Number:
PES-D18NOC30D; PES-D18POC30D
Contact Supplier Request Quote Chat Now
Zhongshan IBEST Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ZhongShan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST
Model Number PES-D18NOC30D; PES-D18POC30D
Usage Other, photo sensor
Theory Other, Infared photo sensor
Output Other, PNP, NPN, NO, NC, NO+NC, AC 2 Wire

Specifications

M18 IP67 Photo Switch
1.Cylinder Type
2.DC 3 or 4 wire; PNP or NPN(NO/NC/NO+NC) ,Ac 2 Wire
2.cable or connector,CE ,IP67

1.Features of IBEST M18 IP67 Photo Switch :

--   Style: cylinder, diameter: 18mm.
--   Through-beam type, retro-reflective type and diffused-reflective type.
--   DC 3 wire or 4 wire; with or without M12 plug-in connector connection.
--   PNP or NPN; NO or NC or NO+NC
--   Light resource: Infrared LED
--   Strong anti-shock and anti-vibration.

--   Long detect distance: through-beam: 10m / retro-reflective type: 3M / diffused-reflective: 5~50cm
--   Fast response: through-beam: <5ms / diffusec-reflective: <3ms

--   Non-contact object detect: avoid the photoelectric sensor to contact the object directly, protect the inducing component from damage and extend the operation life of the sensor.

--   Detect any objects with different materials: detect objects by the light quantities reflected and received, detect objects such as glass, metal, plastic, wood, fluid...etc.

--   Identify object colors: according to the colors' reflectivity and absorptivity, the sensors detect the light that the object reflected and identify the colors.
--   High precision: precise electron circuit, can detect tiny objects with accurate position.
--   IP ratings: IP67
--   With Various other shapes: M12/M30 and square types.

2. Ordering Code:
Model and Type Detecing type Out type Detecting distance range Current output Power supply Buy
PES-T18NO10MD  Through-beam  NPN NO  10m  ≤200mA  DC 10-30V
PES-T18NC10MD  Through-beam  NPN NC  10m  ≤200mA  DC 10-30V
PES-T18PO10MD  Through-beam  PNP NO  10m  ≤200mA  DC 10-30V
PES-T18PC10MD  Through-beam  PNP NC  10m  ≤200mA  DC 10-30V
PES-T18NOC10MD  Through-beam  NPN NO+NC 4 Wrie  10m  ≤200mA  DC 10-30V
PES-T18POC10MD  Through-beam  PNP NO+NC 4 Wire  10m  ≤200mA  DC 10-30V
PES-T18DO10MD  Through-beam  DC NO 2 Wire  10m  ≤100mA  DC 10-30V
PES-T18DC10MD  Through-beam  DC NC 2 Wire  10m  ≤100mA  DC 10-30V
PES-T18AO10MA  Through-beam  AC NO 2 Wire  10m  ≤400mA  AC 90-250V
PES-T18AC10MA  Through-beam  AC NC 2 Wire  10m  ≤400mA  AC 90-250V
PES-R18NO3MD  Retro-reflective  NPN NO  3m  ≤200mA  DC 10-30V
PES-R18NC3MD  Retro-reflective  NPN NC  3m  ≤200mA  DC 10-30V
PES-R18PO3MD  Retro-reflective  PNP NO  3m  ≤200mA  DC 10-30V
PES-R18PC3MD  Retro-reflective  PNP NC  3m  ≤200mA  DC 10-30V
PES-R18DO3MD  Retro-reflective  DC NO 2 Wire  3m  ≤100mA  DC 10-30V
PES-R18DC3MD  Retro-reflective  DC NC 2 Wire  3m  ≤100mA  DC 10-30V
PES-R18AO3MA  Retro-reflective  AC NO 2 Wire  3m  ≤400mA  AC 90-250V
PES-R18AC3MA  Retro-reflective  AC NC 2 Wire  3m  ≤400mA  AC 90-250V
PES-D18NO10/(30)D  Diffused-reflective  NPN NO  10cm / 30cm  ≤200mA  DC 10-30V
PES-D18NC10/(30)D  Diffused-reflective  NPN NC  10cm / 30cm  ≤200mA  DC 10-30V
PES-D18PO10/(30)D  Diffused-reflective  PNP NO  10cm / 30cm  ≤200mA  DC 10-30V
PES-D18PC10/(30)D  Diffused-reflective  PNP NC  10cm / 30cm  ≤200mA  DC 10-30V
PES-D18DO10/(30)D  Diffused-reflective  DC NO 2 Wire  10cm / 30cm  ≤100mA  DC 10-30V
PES-D18DC10/(30)D  Diffused-reflective  DC NC 2 Wire  10cm / 30cm  ≤100mA  DC 10-30V
PES-D18AO10/(30)A  Diffused-reflective  AC NO 2 Wire  10cm / 30cm  ≤400mA  AC 90-250V
PES-D18AC10/(30)A  Diffused-reflective  AC NC 2 Wire  10cm / 30cm  ≤400mA  AC 90-250V

3. Technical Specifications:
Property project Specific parameter
Detecting distance range Through-beam:10m / Retro-reflective: 3m/ Diffusec-reflective:10cm or30cm
Rated power supply DC:10-30V / AC:90-250V
Current DC 3 Wrie: ≤200mA / DC 2 Wire:≤100mA / AC 2 Wire:≤400mA
Resonse time Through-beam:<5ms / Retro-reflective & Diffused-reflective:<3ms
Working angle Through-beam:3°-20°/Retro-reflective:1°-5°
Voltage for transistor <1.5V
Current consumption <20mA
Different distance <15%
Polarity reverse protection Yes
Ambient light(LUX) Incandescent lamp:≤3000 / Sunlight:≤10000
IP ratings IP 67
Material Brass nickle plated or ABS


Our company is a professiona manufacutures of:

1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor,  hall sensor, color mark sensor and analog sensor.

2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)
3,  Solid state relay: single phase and 3 phase
4, Rotary encoder and couplings
5, Various type of  cable and connectors..etc.
6, Pressure transmitters.
7, Safety light curtain.

M18 NPN PNP AC Diffused Photo electric Sensor Switch, Photoeye, Photocell, Photo Eye, Infared Sensor Switch 30CM
