Home > Products > Photoelectric sensor > M18 AC 2 Wire Diffused Photocell Photo Cell Photoeye, PNP NPN 3 Wire Photo Electric Sensor Switch 30CM IBEST Quality Choice

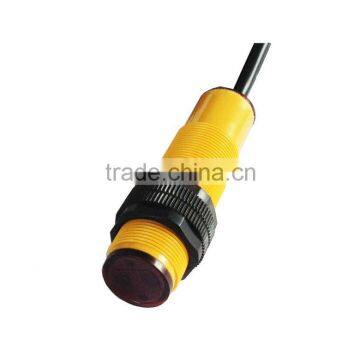

M18 AC 2 Wire Diffused Photocell Photo Cell Photoeye, PNP NPN 3 Wire Photo Electric Sensor Switch 30CM IBEST Quality Choice

Name: M18 AC 2 Wire Diffused Photocell Photo Cell Photoeye, PNP NPN 3 Wire Photo Electric Sensor Switch 30CM IBEST Quality Choice
Brand: IBEST
Availability: InStock

FOB Price

USD $8 - $10 / Piece

5 Pieces(Min.Order)

Supply Ability 30 Piece / Pieces per Month
Port ZhongShan Port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	IBEST
Model Number	PES-D18AO30A; PES-D18AC30A	Usage	Other, photo sensor
Theory	Other, Infared photo sensor	Output	Other, PNP, NPN, NO, NC, NO+NC, AC 2 Wire

Product Description

Specifications

M18 IP67 Photo Switch
1.Cylinder Type
2.DC 3 or 4 wire; PNP or NPN(NO/NC/NO+NC) ,Ac 2 Wire
2.cable or connector,CE ,IP67

1.Features of IBEST M18 IP67 Photo Switch :

--   Style: cylinder, diameter: 18mm.
--   Through-beam type, retro-reflective type and diffused-reflective type.
--   DC 3 wire or 4 wire; with or without M12 plug-in connector connection.
--   PNP or NPN; NO or NC or NO+NC
--   Light resource: Infrared LED
--   Strong anti-shock and anti-vibration.

--   Long detect distance: through-beam: 10m / retro-reflective type: 3M / diffused-reflective: 5~50cm
--   Fast response: through-beam: <5ms / diffusec-reflective: <3ms

--   Non-contact object detect: avoid the photoelectric sensor to contact the object directly, protect the inducing component from damage and extend the operation life of the sensor.

--   Detect any objects with different materials: detect objects by the light quantities reflected and received, detect objects such as glass, metal, plastic, wood, fluid...etc.

--   Identify object colors: according to the colors' reflectivity and absorptivity, the sensors detect the light that the object reflected and identify the colors.
--   High precision: precise electron circuit, can detect tiny objects with accurate position.
-- IP ratings: IP67
--   With Various other shapes: M12/M30 and square types.

2. Ordering Code:

Model and Type	Detecing type	Out type	Detecting distance range	Current output	Power supply	Buy
PES-T18NO10MD	Through-beam	NPN NO	10m	≤200mA	DC 10-30V
PES-T18NC10MD	Through-beam	NPN NC	10m	≤200mA	DC 10-30V
PES-T18PO10MD	Through-beam	PNP NO	10m	≤200mA	DC 10-30V
PES-T18PC10MD	Through-beam	PNP NC	10m	≤200mA	DC 10-30V
PES-T18NOC10MD	Through-beam	NPN NO+NC 4 Wrie	10m	≤200mA	DC 10-30V
PES-T18POC10MD	Through-beam	PNP NO+NC 4 Wire	10m	≤200mA	DC 10-30V
PES-T18DO10MD	Through-beam	DC NO 2 Wire	10m	≤100mA	DC 10-30V
PES-T18DC10MD	Through-beam	DC NC 2 Wire	10m	≤100mA	DC 10-30V
PES-T18AO10MA	Through-beam	AC NO 2 Wire	10m	≤400mA	AC 90-250V
PES-T18AC10MA	Through-beam	AC NC 2 Wire	10m	≤400mA	AC 90-250V
PES-R18NO3MD	Retro-reflective	NPN NO	3m	≤200mA	DC 10-30V
PES-R18NC3MD	Retro-reflective	NPN NC	3m	≤200mA	DC 10-30V
PES-R18PO3MD	Retro-reflective	PNP NO	3m	≤200mA	DC 10-30V
PES-R18PC3MD	Retro-reflective	PNP NC	3m	≤200mA	DC 10-30V
PES-R18DO3MD	Retro-reflective	DC NO 2 Wire	3m	≤100mA	DC 10-30V
PES-R18DC3MD	Retro-reflective	DC NC 2 Wire	3m	≤100mA	DC 10-30V
PES-R18AO3MA	Retro-reflective	AC NO 2 Wire	3m	≤400mA	AC 90-250V
PES-R18AC3MA	Retro-reflective	AC NC 2 Wire	3m	≤400mA	AC 90-250V
PES-D18NO10/(30)D	Diffused-reflective	NPN NO	10cm / 30cm	≤200mA	DC 10-30V
PES-D18NC10/(30)D	Diffused-reflective	NPN NC	10cm / 30cm	≤200mA	DC 10-30V
PES-D18PO10/(30)D	Diffused-reflective	PNP NO	10cm / 30cm	≤200mA	DC 10-30V
PES-D18PC10/(30)D	Diffused-reflective	PNP NC	10cm / 30cm	≤200mA	DC 10-30V
PES-D18DO10/(30)D	Diffused-reflective	DC NO 2 Wire	10cm / 30cm	≤100mA	DC 10-30V
PES-D18DC10/(30)D	Diffused-reflective	DC NC 2 Wire	10cm / 30cm	≤100mA	DC 10-30V
PES-D18AO10/(30)A	Diffused-reflective	AC NO 2 Wire	10cm / 30cm	≤400mA	AC 90-250V
PES-D18AC10/(30)A	Diffused-reflective	AC NC 2 Wire	10cm / 30cm	≤400mA	AC 90-250V

3. Technical Specifications:

Property project	Specific parameter
Detecting distance range	Through-beam:10m / Retro-reflective: 3m/ Diffusec-reflective:10cm or30cm
Rated power supply	DC:10-30V / AC:90-250V
Current	DC 3 Wrie: ≤200mA / DC 2 Wire:≤100mA / AC 2 Wire:≤400mA
Resonse time	Through-beam:<5ms / Retro-reflective & Diffused-reflective:<3ms
Working angle	Through-beam:3°-20°/Retro-reflective:1°-5°
Voltage for transistor	<1.5V
Current consumption	<20mA
Different distance	<15%
Polarity reverse protection	Yes
Ambient light(LUX)	Incandescent lamp:≤3000 / Sunlight:≤10000
IP ratings	IP 67
Material	Brass nickle plated or ABS
