Home > Electrical & Electronics > Sensor > Pressure Sensor > IBEST M30 IP67 Rating Inductive Proximity Sensor Switch, Shielded Flush Type AC 2 WireProximity Sensor Switch

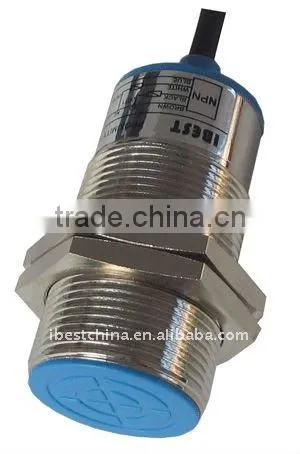

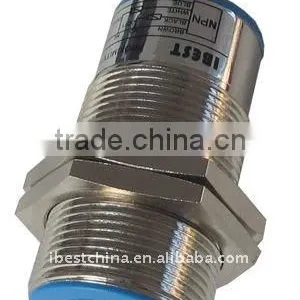

IBEST M30 IP67 Rating Inductive Proximity Sensor Switch, Shielded Flush Type AC 2 WireProximity Sensor Switch
US$ 6 - 8
MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST, SANLLEVI
Model Number:
IPSI/L-30PO10B / IPSI/L-30NO10B; IPS-30DO10B; IPS-30AO10C
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IBEST M30 High Quality Againest Over Load Short Circuit Protected NPN PNP AC Inductive Proxmity Switch SensorUS$ 6 - 8MOQ: 5 Units -
M30 Non Flush Unshielded 15mm Inductive Proximity Switch Sensor, PNP NPN AC DC 2 Wire Proximity Sensor Switch,US$ 6 - 8MOQ: 5 Units
-
IBEST 30*30*53mm Square Inductive Proximity Sensor SwitchUS$ 4.5 - 6MOQ: 20 Units
-
IBEST 30*30mm Square Inductive Sensor, Inductive SwitchUS$ 4.5 - 6MOQ: 20 Units
-
IBEST 15mm Square Inductive Sensor Switch, Inductive Proximity Sensor Switch (PNP)US$ 4 - 6MOQ: 10 Units
Place of Origin
Guangdong, China
Brand Name
IBEST, SANLLEVI
Model Number
IPSI/L-30PO10B / IPSI/L-30NO10B; IPS-30DO10B; IPS-30AO10C
Usage
Magnetic Sensor
Theory
Inductance Sensor
Output
Other, NPN, PNP, NO or NC or NO+NC, AC or DC 2 wire
Specifications
M30 Inductive sensor1. Cylinder : shielded 10mm
2. DC 3/4 wire ;AC or DC 2 wire
3. CE,IP67
4. With cable or connector
1.Features of IBEST M30 Inductive sensor :
-- Inductive sensor , style: cylinder, diameter: 30
-- DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC), AC 2-wire (90-250 AC) type
-- Connection mode: cables=2M directly; or with M12 cable connector.
-- Mounting distance: shielded (10mm) / unshielded (15mm)
-- With LED operation indicate lamp, easily identifiable
-- Brass chrome plated, proof of oil, water acid, alkaline
-- Standard sensing object: iferrous metals;
-- Over load, short circuit protection, against polarity reversal
-- IP ratings: IP67
-- Inductive sensor with Various other shapes: M5/M8/M12/M18 , square types and pancake types.
-- Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc.
-- Reliable quality to replace famous brands .
2.Ordering Code :
| IPSI/L-30NO10B | NPN NO | 10mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30NC10B | NPN NC | 10mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30NO15B | NPN NO | 15mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30NC15B | NPN NC | 15mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30NOC10B | NPN NO+NC | 10mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30NOC15B | NPN NO+NC | 15mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30PO10B | PNP NO | 10mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30PC10B | PNP NC | 10mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30PO15B | PNP NO | 15mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30PC15B | PNP NC | 15mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30POC10B | PNP NO+NC | 10mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30POC15B | PNP NO+NC | 15mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30DO10B | DC 2 Wire NO | 10mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30DC10B | DC 2 Wire NC | 10mm,shielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30DO15B | DC 2 Wire NO | 15mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30DC15B | DC 2 Wire NC | 15mm,unshielded | ≤200mA | DC 10-30V | Plug-in connector | |
| IPSI/L-30AO10C | AC 2 Wire NO | 10mm,shielded | ≤300mA | AC 90-250V | Plug-in connector | |
| IPSI/L-30AC10C | AC 2 Wire NC | 10mm,shielded | ≤300mA | AC 90-250V | Plug-in connector | |
| IPSI/L-30AO15C | AC 2 Wire NO | 15mm,unshielded | ≤300mA | AC 90-250V | Plug-in connector | |
| IPSI/L-30AC15C | AC 2 Wire NC | 15mm,unshielded | ≤300mA | AC 90-250V | Plug-in connector |
| 3. Technical Specifications: | ||||||||||||||||||
|
Our company is a professiona manufacutures of:
1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.
2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)
3, Solid state relay: single phase and 3 phase
4, Rotary encoder and couplings
5, Various type of cable and connectors..etc.
6, Pressure transmitters.
7, Safety light curtain.
Welcome to contact us!
