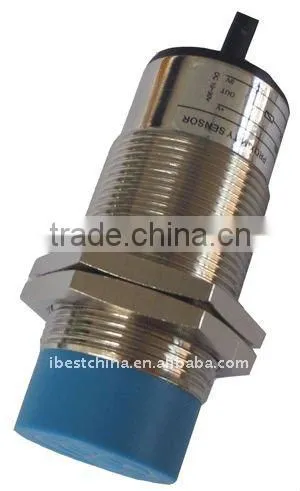

M30 Non Flush Unshielded 15mm Inductive Proximity Switch Sensor, PNP NPN AC DC 2 Wire Proximity Sensor Switch,

Zhongshan IBEST Electrical Co., Ltd.
M30 Non Flush Unshielded 15mm Inductive Proximity Switch Sensor, PNP NPN AC DC 2 Wire Proximity Sensor Switch, thumbnail-1
M30 Non Flush Unshielded 15mm Inductive Proximity Switch Sensor, PNP NPN AC DC 2 Wire Proximity Sensor Switch, photo-1
US$ 6 - 8 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST, SANLLEVI
Model Number:
IPS-30NO15B / IPS-30NC15B; IPS-30PO15B; IPS-30PC15B
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST, SANLLEVI
Model Number IPS-30NO15B / IPS-30NC15B; IPS-30PO15B; IPS-30PC15B
Usage Magnetic Sensor
Theory Inductance Sensor
Output Other, NPN, PNP, NO or NC or NO+NC, AC or DC 2 wire

Specifications

M30 Inductive sensor 15mm SN
1. Cylinder : unshielded 15mm
2. DC 3/4 wire ;AC or DC 2 wire
3. With cable or connector

1.Features of IBEST M30 Inductive sensor 15mm SN :

--       Inductive sensor , style: cylinder, diameter: 30
--       DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC), AC 2-wire (90-250 AC) type
--       Connection mode: cables=2M directly; or with M12 cable connector.
--       Mounting distance: shielded (10mm) / unshielded (15mm)
--       With LED operation indicate lamp, easily identifiable
--       Brass chrome plated, proof of oil, water acid, alkaline
--       Standard sensing object: iferrous metals;
--       Over load, short circuit protection, against polarity reversal

--      IP ratings: IP67
--      Inductive sensor with Various other shapes: M5/M8/M12/M18 , square types and pancake types.

--      Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc.

--      Reliable quality to replace famous brands .





2.Ordering Code :



IPSI/L-30NO10B NPN NO 10mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30NC10B NPN NC 10mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30NO15B NPN NO 15mm,unshielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30NC15B NPN NC 15mm,unshielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30NOC10B NPN NO+NC 10mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30NOC15B NPN NO+NC 15mm,unshielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30PO10B PNP NO 10mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30PC10B PNP NC 10mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30PO15B PNP NO 15mm,unshielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30PC15B PNP NC 15mm,unshielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30POC10B PNP NO+NC 10mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30POC15B PNP NO+NC 15mm,unshielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30DO10B DC 2 Wire NO 10mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30DC10B DC 2 Wire NC 10mm,shielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30DO15B DC 2 Wire NO 15mm,unshielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30DC15B DC 2 Wire NC 15mm,unshielded ≤200mA DC 10-30V Plug-in connector
IPSI/L-30AO10C AC 2 Wire NO 10mm,shielded ≤300mA AC 90-250V Plug-in connector
IPSI/L-30AC10C AC 2 Wire NC 10mm,shielded ≤300mA AC 90-250V Plug-in connector
IPSI/L-30AO15C AC 2 Wire NO 15mm,unshielded ≤300mA AC 90-250V Plug-in connector
IPSI/L-30AC15C AC 2 Wire NC 15mm,unshielded ≤300mA AC 90-250V Plug-in connector











3. Technical Specifications:
Property projectSpecific parameter
Mounting distanceshielded: 10mm / unshielded : 15mm
Sensing distanceshielded: 0-8mm / unshielded : 0-12mm
Power supplyDC 10-30V / AC 90-250V
FrequencyDC: ≤200Hz / AC:≤20Hz
Current outputDC:≤200mA / AC: ≤300mA
Ambient temperture-20-70 C
ProtectionDC:Over-current&polarity or no(please indicate when order) / AC:no
IP ratingIP67



Our company is a professiona manufacutures of:

1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor,  hall sensor, color mark sensor and analog sensor.

2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)
3,  Solid state relay: single phase and 3 phase
4, Rotary encoder and couplings
5, Various type of  cable and connectors..etc.
6, Pressure transmitters.
7, Safety light curtain.

M30 Non Flush Unshielded 15mm Inductive Proximity Switch Sensor, PNP NPN AC DC 2 Wire Proximity Sensor Switch,
