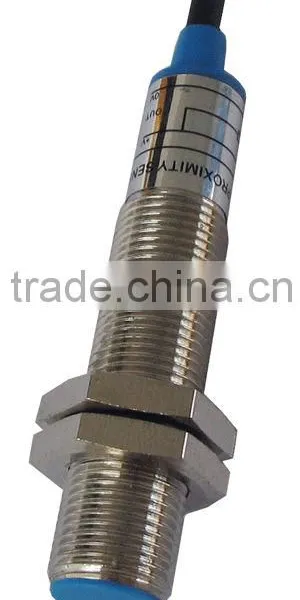

IBEST M12 Flush Type Proximity Sensor Proximity Switch

IBEST M12 Flush Type Proximity Sensor Proximity Switch thumbnail-1
IBEST M12 Flush Type Proximity Sensor Proximity Switch thumbnail-2
IBEST M12 Flush Type Proximity Sensor Proximity Switch photo-1
IBEST M12 Flush Type Proximity Sensor Proximity Switch photo-2
US$ 3 - 5 MOQ: 20 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST, SANLLEVI
Model Number:
IPS-12NO2B; IPS-12NC2B; IPS-12NOC2B
Contact Supplier Request Quote Chat Now
Zhongshan IBEST Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST, SANLLEVI
Model Number IPS-12NO2B; IPS-12NC2B; IPS-12NOC2B
Usage Magnetic Sensor
Theory Inductance Sensor
Output Other, NPN, NO or NC or NO+NC

Specifications

M12 Proximity Sensor
1.shielded 2mm / unshielded 4mm
2.NPN NO/NC/NO+NC
3.Polarity reversal protection
4.With 2M Cable

1. Features of M12 Inductive proximity sensor :

--       Inductive proximity sensor, style: cylinder, diameter: 12mm
--       Shielded or Unshielded type.
--       DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC),AC 2-wire (90-250 AC) type
--       Connection mode: cables=2M directly;  or with M12 cable connector.
--       Mounting distance: shielded 2mm / unshielded 4mm

--       With LED operation indicate lamp, easily identifiable
--       Brass chrome plated, proof of oil, water acid, alkaline
--       Standard sensing object: iferrous metals;
--       Over load, short circuit protection , against polarity reversal

--       IP ratings: IP67
--       Various other shapes: M5/M6/M18/M30, square types and pancake types.

--      Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc .

--       Reliable quality to replace famous brands .






2.Ordering code

IPSI/L-12NO2B  NPN NO  2mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-12NC2B  NPN NC  2mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-12NO4B  NPN NO  4mm,unshielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-12NC4B  NPN NC  4mm,unshielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-12NOC2B  NPN NO+NC  2mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-12NOC4B  NPN NO+NC  4mm,unshielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-12DO2B  DC 2 Wire NO  2mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-12DC2B  DC 2 Wire NC  2mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-12DO4B  DC 2 Wire NO  4mm,unshielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-12DC4B  DC 2 Wire NC  4mm,unshielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-12AO2C  AC 2 Wire NO  2mm,shielded  ≤300mA  AC 90-250V  Plug-in connector
IPSI/L-12AC2C  AC 2 Wire NC  2mm,shielded  ≤300mA  AC 90-250V  Plug-in connector
IPSI/L-12AO4C  AC 2 Wire NO  4mm,unshielded  ≤300mA  AC 90-250V  Plug-in connector
IPSI/L-12AC4C  AC 2 Wire NC  4mm,unshielded  ≤300mA  AC 90-250V  Plug-in connector
IPSI/L-12PO2B  PNP NO  2mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-12PC2B  PNP NC  2mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-12PO4B  PNP NO  4mm,unshielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-12PC4B  PNP NC  4mm,unshielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-12POC2B  PNP NO+NC  2mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-12POC4B  PNP NO+NC  4mm,unshielded  ≤200mA  DC 10-30V  Straight connector





3. Technical Specifications:
Property project Specific parameter
Mounting distance shielded: 2mm / unshielded : 4mm
Sensing distance shielded: 0-1.6mm / unshielded : 0-3.2mm
Power supply DC 10-30V / AC 90-250V
Frequency DC: shielded ≤600Hz ;unshielded ≤400Hz / AC:≤20Hz
Current output DC:≤200mA / AC: ≤300mA
Ambient temperture -20-70 C
Protection DC:Over-current&polarity or no(please indicate when order) / AC:no
IP rating IP67







Our company is a professiona manufacutures of:







1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor,  hall sensor, color mark sensor and analog sensor.



2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)



3,  Solid state relay: single phase and 3 phase



4, Rotary encoder and couplings



5, Various type of  cable and connectors..etc.



6, Pressure transmitters.



7, Safety light curtain.







IBEST M12 Flush Type Proximity Sensor Proximity Switch
