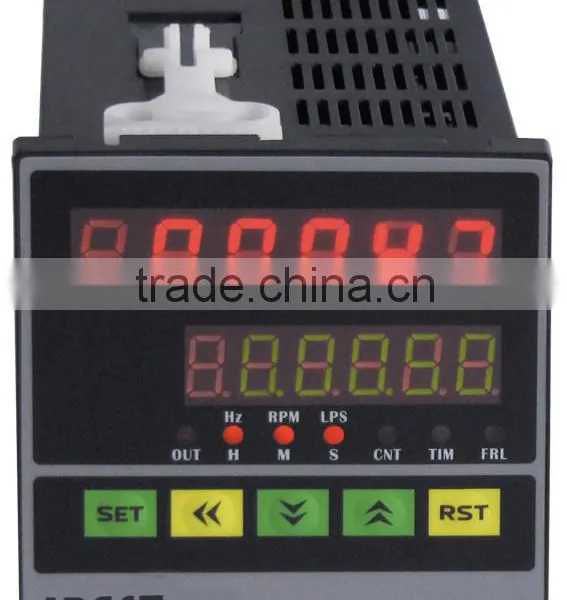

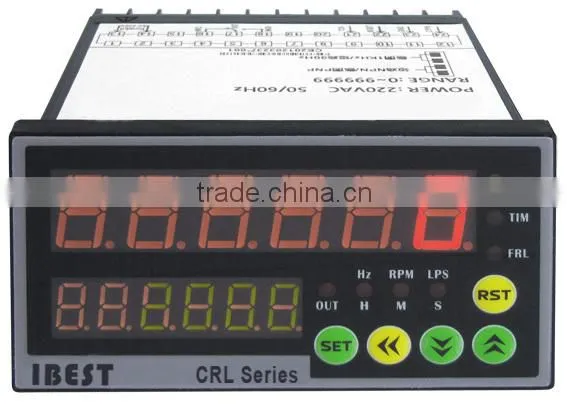

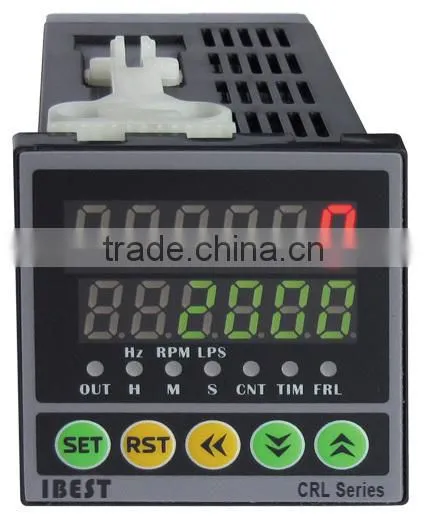

Help CenterDigital Counter Timer Frequency Tacho Meter, Preset Counter Timer 6 Digit CRL Economic Price
Related Products
-
Digital Preset Counter Timer Frequency Tacho Meter Counting Meter 6 Digit CRL Economic PriceUS$ 20 - 25MOQ: 2 Pieces -
CRN 6 Digit Preset Counter, Digital Counter, Counter Meter, Counting Meter, Sensor Counter (IBEST)US$ 30 - 40MOQ: 2 Pieces
-
IBEST 4 Digit Length Meter and Counter , Reset CounterUS$ 35 - 60MOQ: 5 Pieces
-
IBEST 4 Digit Display , Counting Up/Down Function CounterUS$ 35 - 60MOQ: 5 Pieces
-
IBEST Dual Light 6 Digit Display , 48*48mm Digital CounterUS$ 35 - 60MOQ: 5 Pieces
Specifications
Digital Preset counter /Timer/Frequency Meter, convert freely via soft buttons, 6 LED display, 4 optional dimensions.1. Features of IBEST Digital Preset Counter/Timer/Frequency Tacho Meter
* Preset counter /Timer/Frequency Meter, convert freely by soft buttons operation, 6 LED display.
* Counting mode: counting Up or Down, timing UP or Down.
* Input mode: voltage(PNP),non-voltage input (NPN)
* Relay output; optional control output: N, F, C, R; 1 preset output only.
* Counter speed: 30 Hz or 1000Hz; with DC 12V or 24V transmitter supply.
* Counter modulus can be set freely; timer range can be set freely; decimal point can be set freely(max.3 decimal points)
* Power fail holding function; parameters can be locked or unlocked.
* Reset modes: manual reset, auto reset, external reset
* Dimensions: 36X72mm,48X48mm, 72X72mm, 48X96mm
* Application: can be used with photoelectric sensor, proximity switch, and rotary encoder in the fields of machinery, light industrial, packing and packaging,food and beverage, for measure length, counter etc.

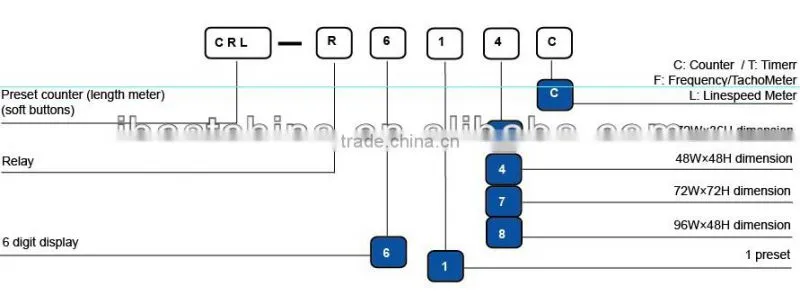

2.Ordering Code:
|
|

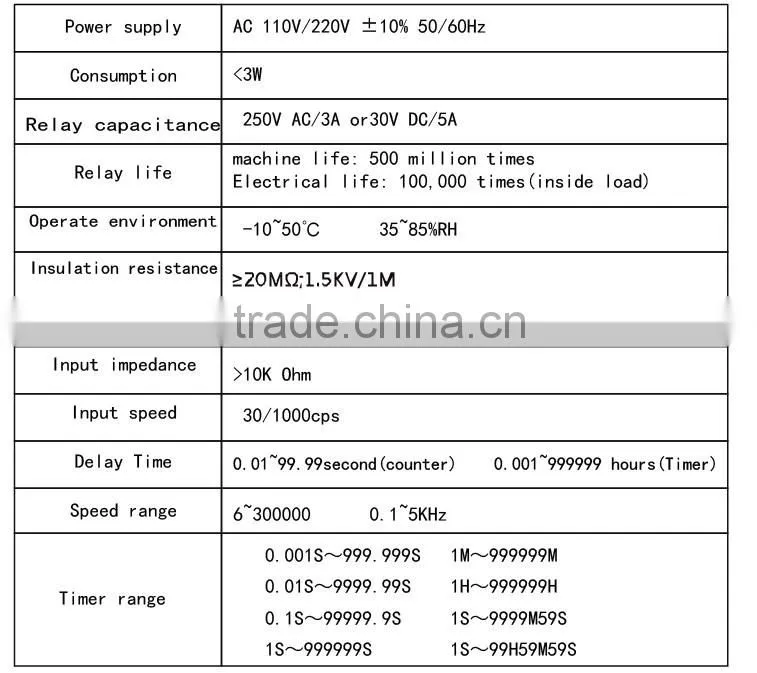

3. Technical Specification

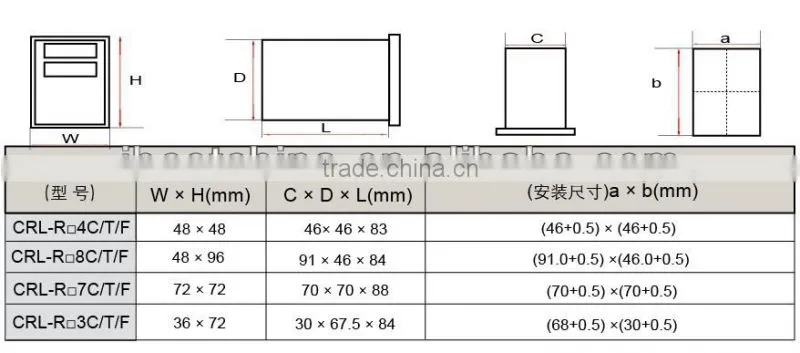

4. Instrument Dimensions:

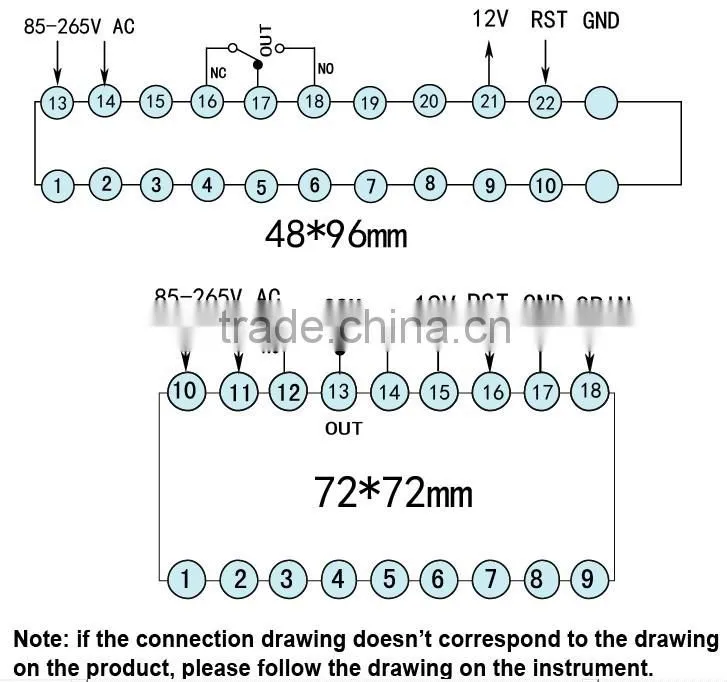

5. Electric Wire Drawing:
