Specifications

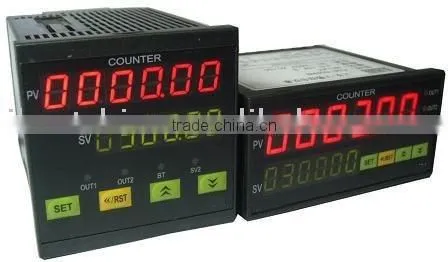

Digital preset counter1. 4 digit, 1 or 2 preset, size 48*48, 72*72 and 48*96mm
2. Used with sensor or encoder
1. Features of IBEST Digital Sensor Preset Counter:
* Preset batch counter, soft buttons operation, easily operate
* Dual line 4 or 6 LED display
* Counting mode: counting Up or counting down, counting up and down, selectable by software
* CP1, CP2 input, reset signal input; input mode: voltage(PNP),non-voltage input (NPN)
* Reset modes: manual reset, auto reset (0.1~9.9s), external reset
* Dimensions: 48X48mm , 72X72mm , 48X96mm
* Application: can be used with photoelectric sensor, proximity switch, and rotary encoder in the fields of machinery,light industrial, packing and packaging,food and beverage.
* Relay and tansistor output; optional control output: N, F, C, R
* Counter speed: 30Hz/300Hz/1000Hz/5000Hz,selectable by software
* Modulus:0.00000-99.9999 (6 digit) / 0.0000000-99.999999 (8 digit)
* Power fail holding function, up to 10 years.
| 2.Ordering Code: | ||||||||||||||||||||||||||||||||||||||||||
|
3. Technical Specification
| Property project | Specific parameter |
| Power supply | 90~250 AC 50/60HZ |
| Power consumption | ≤ 4VA |
| Transmitter supply | 12V DC ±10% max.50mA |
| Control output | Relay: NO., contact capacity: AC 250V /3A orDC 30V /3A Cosφ=1 |
| Open collector output | max. DC 30V/100mA |
| Reset | Auto reset / manual reset / external switch reset |
| Input signals | Contact input, volate input, transducer input |
| Input signals voltage | low voltage:0~2V, high voltage: 4~30V, input resistance: 5KΩ |
| Counting mode | Counting Up or counting down, counting up and down |
| Output mode | N, F, C, R |
| Display range | 0~9999 (4 digit) / 0~999999 (6 digit) |
| Decimal point | 9.999 (4 digit) / 9.99999 (4 digit) |
| Ambient temperature | 0~50 C |
| Humidity | 35~85%(RH) |
Our company is a professiona manufacutures of:
1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.
Welcome to contact us!
IBEST ELECTRICAL CO.LTD
