M18 Capacitive Proximity Sensor Switch, DC12-24V NPN/PNP 3 Wires , AC220V 2 Wires (IBEST)

Zhongshan IBEST Electrical Co., Ltd.
M18 Capacitive Proximity Sensor Switch, DC12-24V NPN/PNP 3 Wires , AC220V 2 Wires (IBEST) thumbnail-1
M18 Capacitive Proximity Sensor Switch, DC12-24V NPN/PNP 3 Wires , AC220V 2 Wires (IBEST) thumbnail-2
M18 Capacitive Proximity Sensor Switch, DC12-24V NPN/PNP 3 Wires , AC220V 2 Wires (IBEST) thumbnail-3
M18 Capacitive Proximity Sensor Switch, DC12-24V NPN/PNP 3 Wires , AC220V 2 Wires (IBEST) thumbnail-4
M18 Capacitive Proximity Sensor Switch, DC12-24V NPN/PNP 3 Wires , AC220V 2 Wires (IBEST) photo-1
M18 Capacitive Proximity Sensor Switch, DC12-24V NPN/PNP 3 Wires , AC220V 2 Wires (IBEST) photo-2
M18 Capacitive Proximity Sensor Switch, DC12-24V NPN/PNP 3 Wires , AC220V 2 Wires (IBEST) photo-3

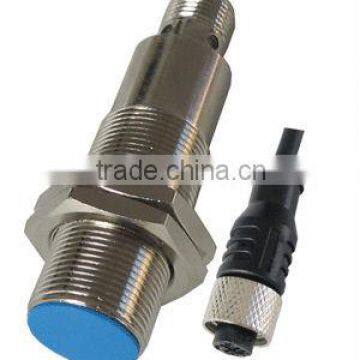

M18 Capacitive Proximity Sensor Switch, DC12-24V NPN/PNP 3 Wires , AC220V 2 Wires (IBEST) photo-4
US$ 7 - 10 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST, SANLLEVI
Model Number:
CPS-18PO8B; CPS-18NO8B; CPS-18AO8C
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST, SANLLEVI
Model Number CPS-18PO8B; CPS-18NO8B; CPS-18AO8C
Usage Position Sensor
Theory Other, capacitive sensor
Output Other, NPN, PNP, 3 wires or 4 wires, AC 2-wire

 IBEST Capacitive Proximity Sensor/Switch





1.Features of  IBEST  M18 Capacitive Proximity Switch:


--     Style: cylinder 18mm, lenth 60mm.
--     Standard sensing object: metal or non-metal objets.

--     Shielded/flush: 5mm. Extended range can be made.
--     DC 3wire or 4 wires (10-30V DC), PNP or NPN, NO or NC or NO+NC. AC 2 wires(90-250v AC)
--     Connection mode: cable=2M or with M12 connector and cable.
--     With LED operation indicate lamp, easily identifiable.
--     Brass chrome plated, proof of oil, water acid, alkaline.

--     Protection rate: IP67, water resistant.
--     CE approved.

--     Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc
--      Reliable quality to replace famous brands .



2. Ordering Code



Model and Type

Output type

Mounting distance

Current output

Power supply

Installation

Connector model

IP Rating

CPS-18PO8B

PNP NO

8mm

≤200mA

 DC

10-30V

 Unshielded

 3 wires

 IP67

CPS-18PC8B

PNP NC

8mm

≤200mA

 DC

10-30V

 Unshielded

 3 wires

 IP67

CPS-18POC8B

PNP NO+NC

8mm

≤200mA

 DC

10-30V

 Unshielded

 4 wires

 IP67

CPS-18NO8B

NPN NO

8mm

≤200mA

 DC

10-30V

 Unshielded

 3 wires

 IP67

CPS-18PC8B

NPN NC

8mm

≤200mA

 DC

10-30V

 Unshielded

 3 wires

 IP67

CPS-18POC8B

NPN NO+NC

8mm

≤200mA

 DC

10-30V

 Unshielded

 4 wires

 IP67

CPS-18AO8C

AC NO

8mm

≤200mA

 DC

10-30V

 Unshielded

 2 wires

 IP67

CPS-18AC8C

AC NC

8mm

≤200mA

 DC

10-30V

 Unshielded

 2 wires

 IP67



CPS-18PO5B

PNP NO

5mm

≤200mA

 DC

10-30V

  shielded/flush

 3 wires

 IP67

CPS-18PC5B

PNP NC

5mm

≤200mA

 DC

10-30V

  shielded/flush

 3 wires

 IP67

CPS-18POC5B

PNP NO+NC

5mm

≤200mA

 DC

10-30V

  shielded/flush

 4 wires

 IP67

CPS-18NO5B

NPN NO

5mm

≤200mA

 DC

10-30V

  shielded/flush

 3 wires

 IP67

CPS-18PC5B

NPN NC

5mm

≤200mA

 DC

10-30V

  shielded/flush

 3 wires

 IP67

CPS-18POC5B

NPN NO+NC

5mm

≤200mA

 DC

10-30V

  shielded/flush

 4 wires

 IP67

CPS-18AO5C

AC NO

5mm

≤200mA

 DC

10-30V

  shielded/flush

 2 wires

 IP67

CPS-18AC5C

AC NC

5mm

≤200mA

 DC

10-30V

  shielded/flush

 2 wires

 IP67



3. Technical Specifications:
Property projectSpecific parameter
Mounting distanceShielded 5mm / Unshielded 8-10mm
Sensing distance0-5mm / 0-10mm
Power supplyDC 10-30V / AC 90-250V
Frequency≤50Hz
Current outputDC:≤200mA / AC: ≤300mA
Ambient temperture-20-70 C
ProtectionDC:Over-current&polarity or no(please indicate when order) / AC:no
IP ratingIP67

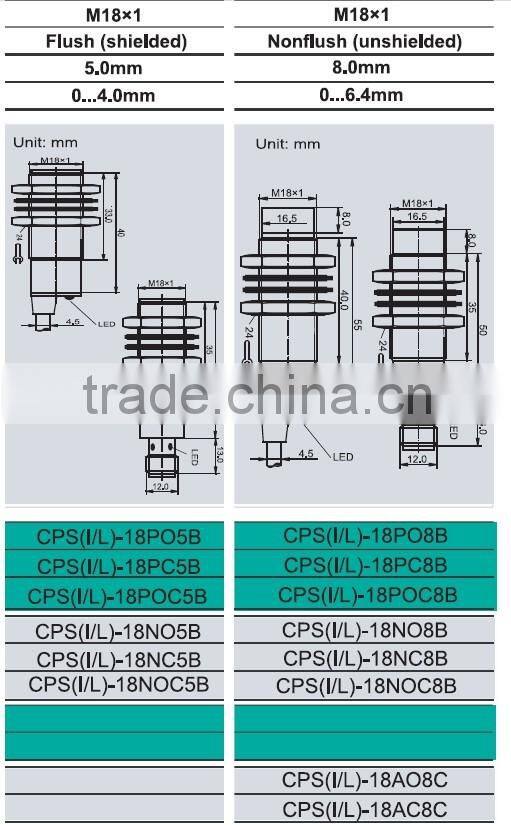

M18 Capacitive Proximity Sensor Switch, DC12-24V NPN/PNP 3 Wires , AC220V 2 Wires (IBEST)M18 Capacitive Proximity Sensor Switch, DC12-24V NPN/PNP 3 Wires , AC220V 2 Wires (IBEST)M18 Capacitive Proximity Sensor Switch, DC12-24V NPN/PNP 3 Wires , AC220V 2 Wires (IBEST)





Our company is a professiona manufacutures of:



1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor,  hall sensor, color mark sensor and analog sensor.



2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)



3,  Solid state relay: single phase and 3 phase.



4, Rotary encoder and couplings



5, Various type of  cable and connectors..etc.



6, Pressure transmitters.



7, Safety light curtain.









Welcome to contact us!
