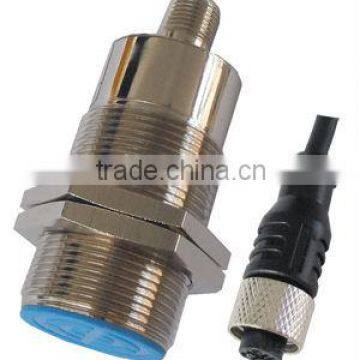

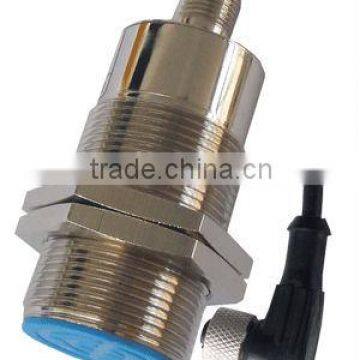

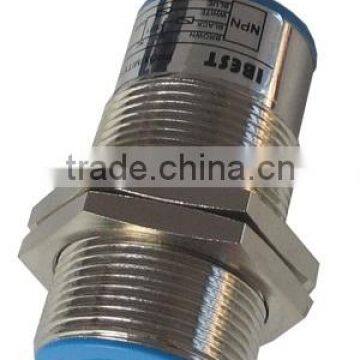

M30 NPN/PNP Capacitive Proximity Sensor Switch, DC12-24V 3 Wires (IBEST)

  IBEST Capacitive Proximity Sensor/Switch

1. Features of IBEST M30 Big Capacitive switch  :

--    Style: cylinder 30mm, lenth 60mm.

--    Standard sensing object: metal or non-metal objets.

--    Shielded / Flush: 10-15mm; Unshielded / Non-flush: 15-25mm.

--    DC 3wire or 4 wires (10-30V DC), PNP or NPN, NO or NC or NO+NC. (or AC 2 wires 90-250V supply)

--    Connection mode: cable=2M or with M12 connector and cable.

--    With LED operation indicate lamp, easily identifiable.

--    Brass chrome plated, proof of oil, water acid, alkaline.

--    Protection rate: IP67, water resistant.

--    Reliable quality to replace famous brands, such as: Omron, Sick, Bafflus...etc.

--    CE approved.

--    Widely applied in measuring, Counting, Rpm measuring in mechanism,paper  manufacture light industry, chemical etc

2.Ordering code

3.Technical Specifications:

--  Roperty project Specific parameter
--  Mounting distance 15mm / 25mm    Sensing distance 3-25mm
--  Power supply DC 10-30V / AC 90-250V
--  Frequency ≤50Hz
--  Current output DC:≤200mA / AC: ≤300mA
--  Ambient temperture -20-70 C
--  Protection DC:Over-current&polarity or no(please indicate when order) /  AC:none
