Home > Electrical & Electronics > Sensor > Pressure Sensor > M12 Capacitive Proximity Sensor Switch PNP/NPN 3 Wires , DC12-24V Unshielded/Non-Flush 4mm (IBEST)

M12 Capacitive Proximity Sensor Switch PNP/NPN 3 Wires , DC12-24V Unshielded/Non-Flush 4mm (IBEST)

Name: M12 Capacitive Proximity Sensor Switch PNP/NPN 3 Wires , DC12-24V Unshielded/Non-Flush 4mm (IBEST)
Brand: IBEST, SANLLEVI
SKU: 109095845
Availability: InStock

Zhongshan IBEST Electrical Co., Ltd.

M12 Capacitive Proximity Sensor Switch PNP/NPN 3 Wires , DC12-24V Unshielded/Non-Flush 4mm (IBEST) thumbnail-1

M12 Capacitive Proximity Sensor Switch PNP/NPN 3 Wires , DC12-24V Unshielded/Non-Flush 4mm (IBEST) thumbnail-2

M12 Capacitive Proximity Sensor Switch PNP/NPN 3 Wires , DC12-24V Unshielded/Non-Flush 4mm (IBEST) thumbnail-3

M12 Capacitive Proximity Sensor Switch PNP/NPN 3 Wires , DC12-24V Unshielded/Non-Flush 4mm (IBEST) thumbnail-4

M12 Capacitive Proximity Sensor Switch PNP/NPN 3 Wires , DC12-24V Unshielded/Non-Flush 4mm (IBEST) thumbnail-5

M12 Capacitive Proximity Sensor Switch PNP/NPN 3 Wires , DC12-24V Unshielded/Non-Flush 4mm (IBEST) photo-1

M12 Capacitive Proximity Sensor Switch PNP/NPN 3 Wires , DC12-24V Unshielded/Non-Flush 4mm (IBEST) photo-2

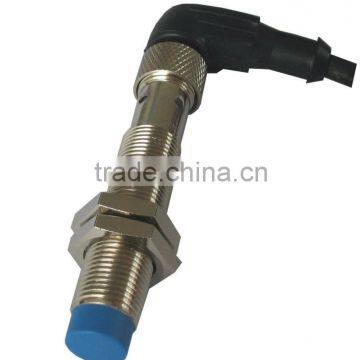

M12 Capacitive Proximity Sensor Switch PNP/NPN 3 Wires , DC12-24V Unshielded/Non-Flush 4mm (IBEST) photo-3

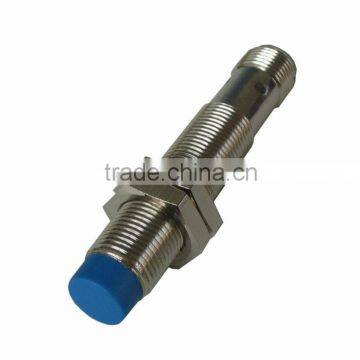

M12 Capacitive Proximity Sensor Switch PNP/NPN 3 Wires , DC12-24V Unshielded/Non-Flush 4mm (IBEST) photo-4

M12 Capacitive Proximity Sensor Switch PNP/NPN 3 Wires , DC12-24V Unshielded/Non-Flush 4mm (IBEST) photo-5

US$ 7 - 10 MOQ: 5 Units

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

IBEST, SANLLEVI

Model Number:

CPS-12PO4B; CPS-12NO4B

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name IBEST, SANLLEVI

Model Number CPS-12PO4B; CPS-12NO4B

Usage Position Sensor

Theory Other, capacitive sensor

Output Other, NPN, PNP 3 wires

IBEST Capacitive Proximity Sensor/Switch

1.Features of IBEST M12 DC 3wire Capacitive Sensor :

--      Style: cylinder 12mm, lenth 60mm.
--      Sensing object: metal or non-metal objets.
--      Unshielded or Non-flush: 4mm / Shielded or flush: 2mm.
--      DC 3wire (10-30V DC), PNP or NPN, NO or NC.
--      Connection mode: cable=2M or with M12 connector and cable.
--      With LED operation indicate lamp, easily identifiable.
--      Brass chrome plated, proof of oil, water acid, alkaline.

-- Protection rate: IP67, water resistant.
-- CE approved.

-- Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc.
-- Reliable quality to replace famous brands .

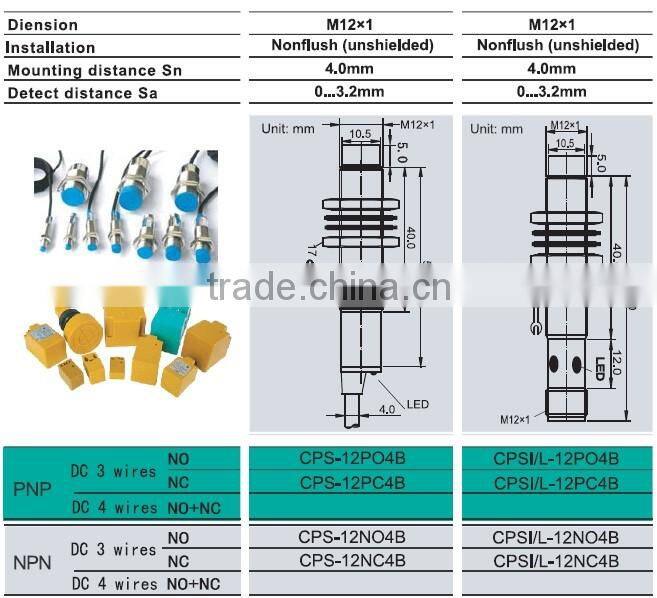

2. Ordering Code :

Model and Type	Output type	Power supply	Current output	Connector mode	Installation	Mounting distance	IP Rating
CPS-12PO4B	PNP NO	DC 10-30V	200mA	DC 3 wire	Unshielded	4mm	IP67
CPS-12PC4B	PNP NC	DC 10-30V	200mA	DC 3 wire	Unshielded	4mm	IP67
CPS-12NO4B	NPN NO	DC 10-30V	200mA	DC 3 wire	Unshielded	4mm	IP67
CPS-12NC4B	NPN NC	DC 10-30V	200mA	DC 3 wire	Unshielded	4mm	IP67

CPS-12PO2B	PNP NO	DC 10-30V	200mA	DC 3 wire	shielded	2mm	IP67
CPS-12PC2B	PNP NC	DC 10-30V	200mA	DC 3 wire	shielded	2mm	IP67
CPS-12NO2B	NPN NO	DC 10-30V	200mA	DC 3 wire	shielded	2mm	IP67
CPS-12NC2B	NPN NC	DC 10-30V	200mA	DC 3 wire	shielded	2mm	IP67

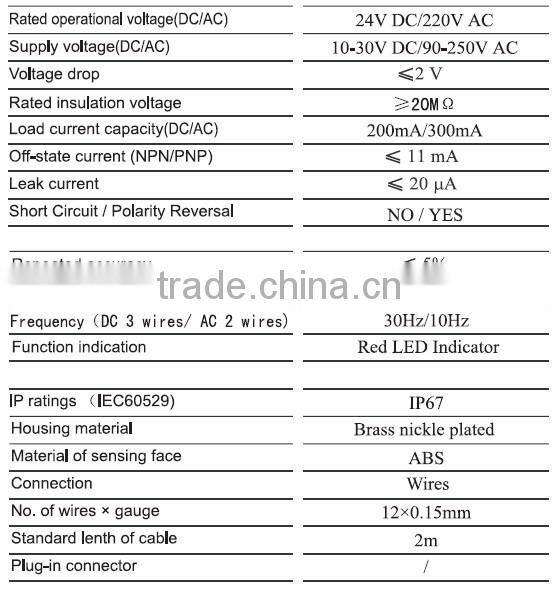

3. Technical Specifications:

Property project	Specific parameter
Mounting distance	shielded: 2mm / unshielded: 4mm
Sensing distance	0-1.6mm / 0-3.6mm
Power supply	DC 10-30V
Frequency	≤50Hz
Current output	DC:≤200mA
Ambient temperture	-20-70 C
Protection	DC:Over-current&polarity or no(please indicate when order) / AC:no
IP rating	IP67

Our company is a professiona manufacutures of:

1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.

2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)

3, Solid state relay: single phase and 3 phase.

4, Rotary encoder and couplings.

5, Various type of cable and connectors..etc.

6, Pressure transmitters.

7, Safety light curtain.

Welcome to contact us!

IBEST ELECTRICAL CO.LTD

wwwibestchinacom
